Model Number: | 200, 300, 400, Series | Product Name: | Stainless Steel Wire Rod |
---|---|---|---|
Steel Grade: | Steel Wire | Tolerance: | ±1% |
C Content (%): | ≤3% | Si Content (%): | ≤2% |
High Light: | 25mm stainless steel wire coil,0.016mm stainless steel wire coil,1800N/mm2 stainless steel wire coil |

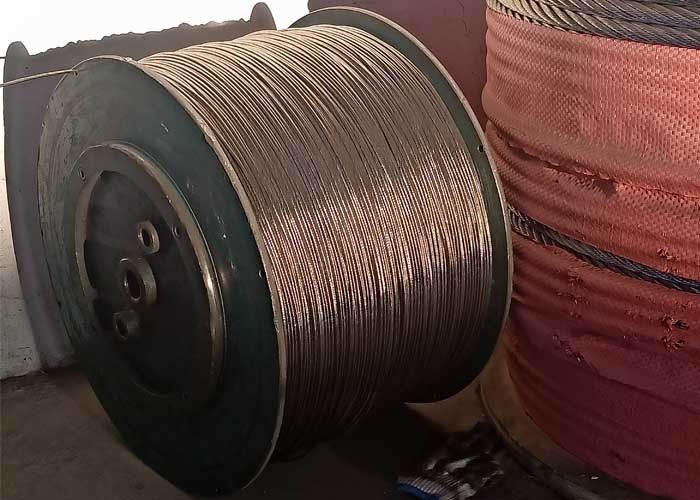

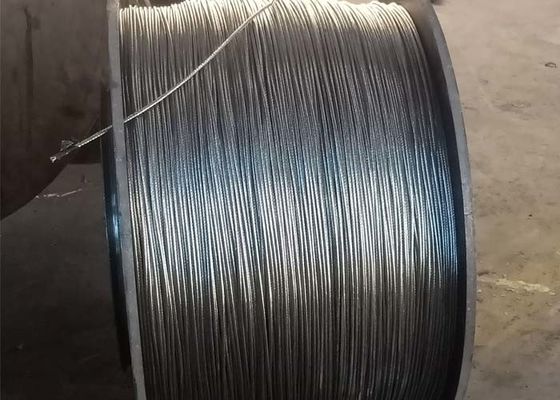

Stainless Steel Tie Wire Cable Fasteners High Strength Size 0.016mm-25mm
Description:
Wire rod is a rolled alloy or non-alloy steel product, produced from a semi (e.g. bloom) and having a round, rectangular, hexagon, octagon, semicircle or other cross-section. Particularly fine cross-sections may be achieved by subsequent cold forming (drawing). Wire rod is wound into coils and transported in this form.
Specifications
Wire Type | Stainless steel hydrogen wire Stainless Steel Spring Wire,EPQ Wire(Kitchen Wire),CHQ Wire(Cold Heading Wire),Stainless Flat Spring Wire,Stainless Steel Nail Wire,Stainless Steel Weaving Wire,Stainless Steel Straight Wire ,stainless steel soft wire,stainless steel fine wire ,stainless steel electrode wire,stainless electrolytic wire,stainless steel welding wire,etc; |
Material |
ASTM: 201, 202, 204Cu, 301, 302, 303, 304, 304Cu, 304HC, 304L, 304H, 310, 310S, 312, 314, 316, 316L, 316LN, 316Ti, 316LCu, 321, 410, 420, 430, 430L,etc |
DIN/EN:1.4301, 1.4306, 1.4307, 1.4310, 1.4401, 1.4404, 1.4567, 1.4841, 1.4842, 1.4541, 1.4845, 1.4570, 1.4571, 1.4578, 1.4597, 1.4362, 1.4370, 1.4016,etc | |
Size | 0.016mm-25mm Special specifications can also be produced according customer's requests |
Surface | Bright, matt ,electrolysis bright ,cloudy ,plain ,black, hot rolled hydrogen , soft ,etc; |
T. Strength | 630N/mm2-1800N/mm2 or custom according your requests |
Specification list
Grade | Tensile Strength(N/mm²) |
Surface Finish |
Tolerance (mm) |
|
Nominal Diameter(mm) | Stainless steel 302/304 | 316 | ||
0.15 – 0.20 | 2200 - 2530 | 1725 - 1980 | Bright | ±0.005 |
0.20<d≤0.30 | 2150 - 2470 | 1700 - 1955 | Bright / Coated | ±0.005 |
0.30<d≤0.40 | 2100 - 2415 | 1675 - 1925 | Bright / Coated | ±0.008 |
0.40<d≤0.50 | 2050 - 2355 | 1650 - 1895 | Bright / Coated | ±0.008 |
0.50<d≤0.65 | 2000 - 2300 | 1625 - 1865 | Bright / Coated | ±0.008 |
0.65<d≤0.80 | 1950 - 2240 | 1600 - 1840 | Bright / Coated | ±0.010 |
0.80<d≤1.00 | 1900 - 2185 | 1575 - 1810 | Coated | ±0.010 |
1.00<d≤1.25 | 1850 - 2125 | 1550 - 1780 | Coated | ±0.015 |
0.25<d≤1.50 | 1800 - 2070 | 1500 - 1725 | Coated | ±0.015 |
0.50<d≤1.75 | 1750 - 2010 | 1450 - 1665 | Coated | ±0.015 |
0.75<d≤2.00 | 1700 - 1955 | 1400 - 1610 | Coated | ±0.015 |
2.00<d≤2.50 | 1650 - 1895 | 1350 - 1550 | Coated | ±0.020 |
2.50<d≤3.00 | 1600 - 1840 | 1300 - 1495 | Coated | ±0.020 |
3.00<d≤3.50 | 1550 - 1780 | 1250 - 1435 | Coated | ±0.020 |
3.50<d≤4.25 | 1500 - 1725 | 1225 - 1410 | Coated | ±0.020 |
4.25<d≤5.00 | 1450 - 1665 | 1200 - 1380 | Coated | ±0.025 |
5.00<d≤6.00 | 1400 - 1610 | 1150 - 1320 | Coated | ±0.025 |
6.00<d≤7.00 | 1350 - 1550 | 1125 - 1290 | Coated | ±0.025 |
7.00<d≤8.50 | 1300 -1495 | 1075 - 1235 | Coated | ±0.030 |
8.50<d≤10.00 | 1250 -1435 | 1050 - 1205 | Coated | ±0.030 |
10.00<d≤11.00 | 965 - 1170 | 899 - 1105 | Coated | ±0.030 |
11.00<d≤13.00 | 930 - 1140 | 895 - 1105 | Coated | ±0.030 |
13.00<d≤16.00 | 895 - 1105 | 860 - 1070 | Coated | ±0.030 |
Product Application
1). Tie wire, pins, lashing, forming wire, filters, gaskets, elevators, safety wire, shaped and flat wire,
2). Conveyors, jewelry, springs, brush welding, electrical, wire line, craft , bicycle fittings
3). Kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets
4). Food and medical machinery accessions
Widely used in petrochemical, aerospace, textile printing, electronic communications, environmental protection, health care and daily life.,etc
Our advantage
Our range of Wire made of Stainless Steel are not only known for their variety but are also known for their good quality, long life and very reasonable prices. Quality and service is our first priority, we effectively use technically advanced machinery equipment and the expertise of our work to deliver our stainless steel wired products
