| Place of Origin: | Jiangsu |
|---|---|
| Brand Name: | TISCO,BAOSTEEL |
| Certification: | ISO,BV |
| Minimum Order Quantity: | 5 ton |
| Price: | Negotiation |
| Packaging Details: | Standard Seaworthy package or as the customer's requirement |
| Delivery Time: | 5-10 working days |
| Supply Ability: | 2000 ton |
| Model Number: | 200, 300, 400, Series | Product Name: | Stainless Steel Wire |
|---|---|---|---|
| Dia: | 0.018mm-6.0mm | Usage: | Industry Welded |
| Surface: | Bright Or Annealed | Tolerance: | ±1% |
| High Light: | 6.0mm Stainless Steel Wire Rod,6mm stainless steel wire rod,ss410 wire rod |
||

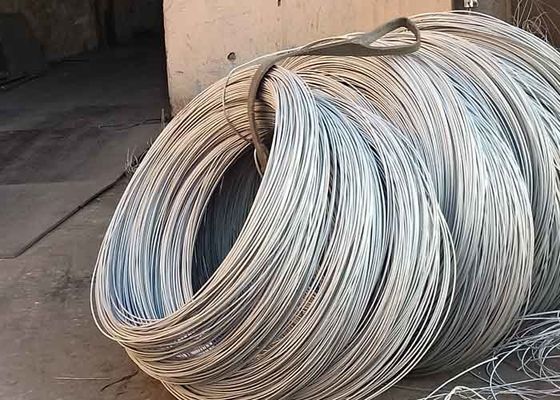

Beautiful Surface Condition Anti Corrosion Stainless Steel Wire Rod Round Bars
Description:
Stainless steel wire, also called stainless steel wire, wire rod, pan yuan, but unlike stainless steel wire rope. Main wire spring wire and screws line two, as the name implies: the line is mainly used to do screw, screw and spring wire used for spring or other requirements of flexible hardware products. Other light line, for example, hydrogen annealing line, electrolytic line, axle pin line. The tensile strength of 1500-2000. The hardness of spring line has the following kinds: the soft hard | | a quarter and a half hard hard | | 3/4 full hard | hard. Can be used in chemical, petroleum, food, energy, electric power, aerospace, environmental protection, boiler heat exchanger, etc.
Product Detail
| Product name | stainless steel wire |
| Diameter | 0.018mm-6.0mm |
| Material grade | ss302,304,304L,316L,316,430 ect. |
| MOQ | 100KGS |
| Variety | Hard wire,Soft wire,Coil wire ,spool wire |
| Application | redrawing, mesh weaving, soft pipe, isolation layer in kitchen, steel rope, filter material, making of spring, etc. |
| Packing details |
1.carton package 2.Wooden package |
| Tensile Strength | 300N/ sqm-1500N/ sqm |
Specification list
| Grade | Tensile Strength(N/mm²) |
Surface Finish |
Tolerance (mm) |
|
| Nominal Diameter(mm) | Stainless steel 302/304 | 316 | ||
| 0.15 – 0.20 | 2200 - 2530 | 1725 - 1980 | Bright | ±0.005 |
| 0.20＜d≤0.30 | 2150 - 2470 | 1700 - 1955 | Bright / Coated | ±0.005 |
| 0.30＜d≤0.40 | 2100 - 2415 | 1675 - 1925 | Bright / Coated | ±0.008 |
| 0.40＜d≤0.50 | 2050 - 2355 | 1650 - 1895 | Bright / Coated | ±0.008 |
| 0.50＜d≤0.65 | 2000 - 2300 | 1625 - 1865 | Bright / Coated | ±0.008 |
| 0.65＜d≤0.80 | 1950 - 2240 | 1600 - 1840 | Bright / Coated | ±0.010 |
| 0.80＜d≤1.00 | 1900 - 2185 | 1575 - 1810 | Coated | ±0.010 |
| 1.00＜d≤1.25 | 1850 - 2125 | 1550 - 1780 | Coated | ±0.015 |
| 0.25＜d≤1.50 | 1800 - 2070 | 1500 - 1725 | Coated | ±0.015 |
| 0.50＜d≤1.75 | 1750 - 2010 | 1450 - 1665 | Coated | ±0.015 |
| 0.75＜d≤2.00 | 1700 - 1955 | 1400 - 1610 | Coated | ±0.015 |
| 2.00＜d≤2.50 | 1650 - 1895 | 1350 - 1550 | Coated | ±0.020 |
| 2.50＜d≤3.00 | 1600 - 1840 | 1300 - 1495 | Coated | ±0.020 |
| 3.00＜d≤3.50 | 1550 - 1780 | 1250 - 1435 | Coated | ±0.020 |
| 3.50＜d≤4.25 | 1500 - 1725 | 1225 - 1410 | Coated | ±0.020 |
| 4.25＜d≤5.00 | 1450 - 1665 | 1200 - 1380 | Coated | ±0.025 |
| 5.00＜d≤6.00 | 1400 - 1610 | 1150 - 1320 | Coated | ±0.025 |
| 6.00＜d≤7.00 | 1350 - 1550 | 1125 - 1290 | Coated | ±0.025 |
| 7.00＜d≤8.50 | 1300 -1495 | 1075 - 1235 | Coated | ±0.030 |
| 8.50＜d≤10.00 | 1250 -1435 | 1050 - 1205 | Coated | ±0.030 |
| 10.00＜d≤11.00 | 965 - 1170 | 899 - 1105 | Coated | ±0.030 |
| 11.00＜d≤13.00 | 930 - 1140 | 895 - 1105 | Coated | ±0.030 |
| 13.00＜d≤16.00 | 895 - 1105 | 860 - 1070 | Coated | ±0.030 |
Features:
1. Uniform and beautiful surface condition
2. Excellent coil forming ability
3. High elasticity and high fatigue resistance
4. Strong corrosion resistance against exposure to the toughest atmosphere
