| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | BV,TUV,DNV,SGS,CE,LR. |
| Minimum Order Quantity: | 1PC |
| Price: | Negotiation |
| Packaging Details: | Wooden Cartons and Plastic Bag of each good. |
| Delivery Time: | 5 - 15 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 Ton / Month |
| Model Number: | SUS201, SUS304, SUS316, F304,F316 ,SS321 | Technics: | Forged |
|---|---|---|---|
| Type: | Flange | Connection: | Welding |
| Flange Type: | RF WN | Surface: | Pickling And Polishing |
| Quality: | Prime | Pressure: | Class150 / 300 / 600 / 900 /1500 / 2500 |
| High Light: | 304 blind pipe flanges,Dn200 stainless steel blind flange,Dn200 blind pipe flanges |
||

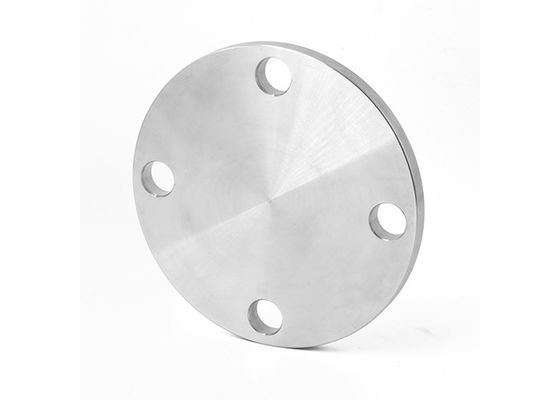

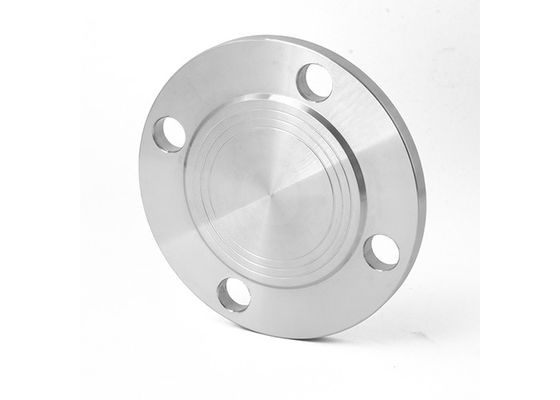

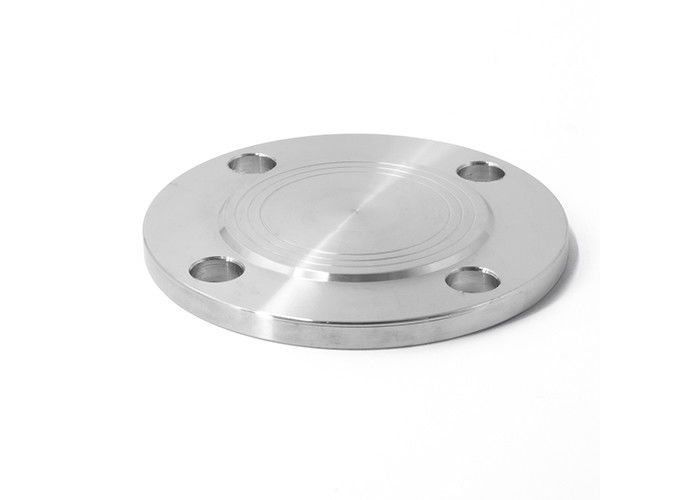

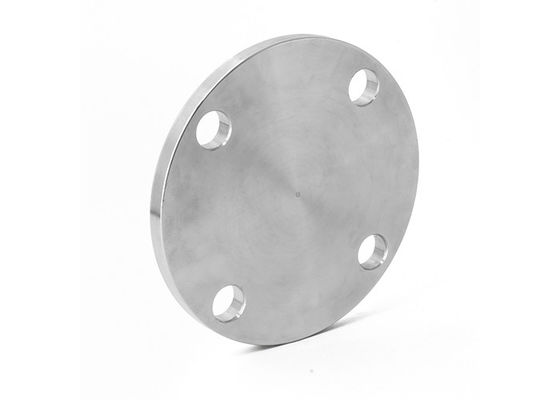

Stainless Steel Flange Pipe Flanges Custom Made Flanges Blind Flange Dn200 304
Flange is the parts which connects two pipe ends, flange connection is defined by the flange, gasket and bolt three are connected
as a group of combined sealing structure of the detachable connection. The gasket is added between the two flanges and then
fastened by bolts. Different pressure flange, thickness is different, and the bolts they use are different, when pump and valve
connect with pipe, the parts of the equipment are also made of the corresponding flange shape, also known as flange connection,
usually closured bolted connection parts are also known as flanges, such as the connection of ventilation pipe, this kind of parts
can be called "flange type part", but this connection is only part of a device, such as the connection between flange and water
pump, it's not inapposite to call water pump as flange type parts,but relative small valve,it can be called as flange type parts .
|
|
|
|
|
ASTM A182 WN / SO / BL / SW Welded PN16 / 10 Stainless Steel Pipe Fittings Flange |
|
|
OD:1/8"-100"(6-2500mm) |
|
|
ASTM A182 WN / SO / BL / SW, DIN2605,DIN2615,DIN2616,DIN2633 |
|
|
304, 316L, 321, 310S, 1.4301, 1.4307, 1.4404, S31803, S32750, 904L, Monel 400, Inconel 800 |
|
|
Pickling and bright |
|
|
ISO9001, CE, SGS, TUV, DNV, BV, LR, GL, NK, RMRS |
| Packing: In wooden cases | |
|
Shipment |
By sea, by air, by express |
|
|
||||||||||
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo |
Cu |
|
| 201 | ≤0.15 | ≤0.75 | 5.5~7.5 | ≤0.060 | ≤0.03 | 16.00~18.00 | 3.5~5.5 | - | 0.08 |
1.5 |
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 8.00~10.50 | - |
|
|
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 9.00~13.00 | - |
|
|
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 10.00~14.00 | 2.00~3.00 |
|
|
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 12.00~15.00 | 2.00~3.00 |
|
|
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 17.00~19.00 | 9.00~13.00 | - |
|
|
1. HS CODE: 7307230000,7307210000
2. Trade term: FOB,CNF,CIF
3. Payment term: 30% by T/T as down payment balance against B/L copy or 100% LC at sight.
4. Delivery time: Within 3-15 working days after received deposit or LC draft.
5. A copy of mill test certificate will be provided with shipment.
