| Place of Origin: | Shanghai ,Shanxi |
|---|---|
| Brand Name: | HONGWANG ,LISCO |
| Certification: | ISO ,SGS,BV |
| Model Number: | 300 Series 316 |
| Minimum Order Quantity: | 1 ton according to products |
| Price: | Negotiation |
| Packaging Details: | Export Package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 ton/ Month |
| Thickness: | 0.3-25mm | Finish: | 2B ,Hairilne,BA,NO6,N0 8 |
|---|---|---|---|
| Width: | 1000mm,1219mm,1250mm,1500mm | Color: | Natural Surface Or As Customized |
| Market: | USA ,the Middle East,South Africa | Length: | 2500mm.6000mm |
| High Light: | Austenitic 316l sheet,1.4404 316l sheet,Austenitic s31603 stainless steel |
||

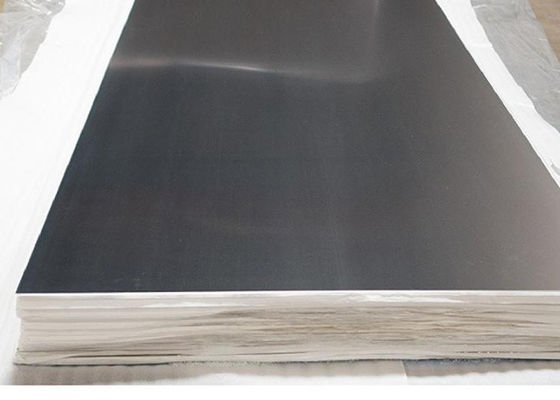

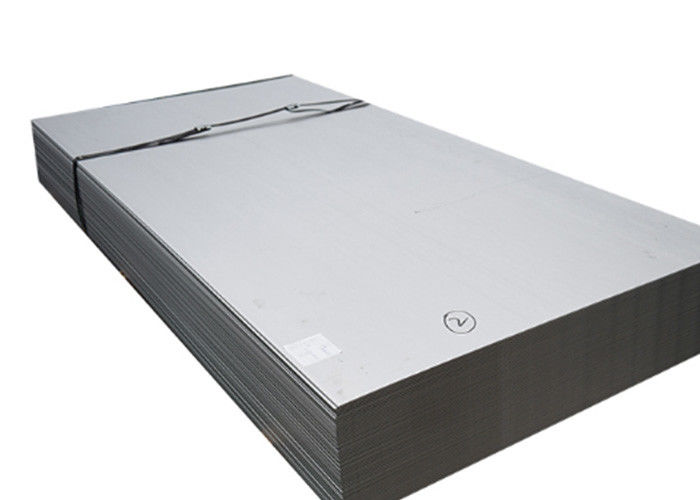

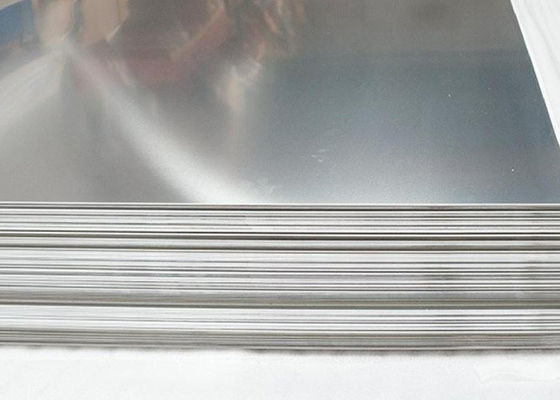

Stainless Steel - Austenitic - 1.4404 (316L) Sheet And Plate 4'*8'
316 standards
CHINA:06Cr17Ni12Mo2
ASTM/ASME: UNS S31600
AFNOR: Z 6 CND 17-11
DIN: 1.4401
Quarto Plate is hot rolled plate over 12mm thick that has not been coiled during production.Stainless steel types 1.4401 and 1.4404 are also known as grades 316 and 316L respectively. Grade 316 is an austenitic grade second only to 304 in commercial importance.
316 stainless steel contains an addition of molybdenum that gives it improved corrosion resistance. This is particularly apparent for pitting and crevice corrosion in chloride environments.316L, the low carbon version of 316 stainless steel, is immune to grain boundary carbide precipitation (sensitisation). This makes it suited to use in heavy gauge (over about 6mm) welded components.
For elevated temperature applications the high carbon variant, 316H stainless steel and the stabilised grade 316Ti stainless steel should be employed.
The austenitic structure of 316 stainless steel gives excellent toughness, even at cryogenic temperatures.
Property data given in this document is typical for flat rolled products covered by EN 10088-2:2005. ASTM, EN or other standards may cover all products sold. It is reasonable to expect specifications in these standards to be similar but not necessarily identical to those given in this datasheet.
Chemical Properties:
| C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316L (S31603) |
0.03 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
| Grade | Tensile Strength ksi (min) |
Yield Strength 0.2% ksi (min) |
Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 316L (S31603) |
70 | 25 | 40 | 217 | 95 |
Chemical Properties:
| C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316L (S31603) |
0.03 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
| Grade | Tensile Strength ksi (min) |
Yield Strength 0.2% ksi (min) |
Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 316L (S31603) |
70 | 25 | 40 | 217 | 95 |
Applications:
Food processing equipment
Brewery equipment
Chemical and petrochemical equipment
Laboratory benches & equipment
Coastal architectural panelling
Coastal balustrading
Boat fittings
Chemical transportation containers
Heat exchangers
Mining screens
Nuts and bolts
Springs
Medical implants
