Name: | Stainless Steel Welded Tube | Welding Line Type: | Round Square |
---|---|---|---|
Steel Grade: | 304 304L | Usage: | Petroleum , Foodstuff |
Outer Diameter: | Customized | Standard: | AISI |
High Light: | Petroleum 201 steel pipe,Petroleum 201 welded pipe,AISI standard 201 tube |
Stainless Steel Square Tubing 40x20 201 304 Rectangular Steel Pipe For Industry
Stainless steel pipe is a hollow, long, round steel or square rectangle materialthat is widely used in industrial transportation pipelines andmechanicalcal structural components.In addition, when the bending and torsional strength is the same,the weight od stainless steel tube is light, so stainless steel pipe is also widely used in manufacturingmechanical parts and engineering structures.
Product name | stainless steel square tubing 40x20 201 rectangular steel pipe |
Brand | BAOSTEEL, JISCO, TISCO , LISCO |
Material | 410 420 430 440C 201 202 301 304 304L 304H 316 316L 316Ti 321 310S 309S 904L 2205 2507 etc. |
Certificate | ISO9001,BV,SGS or as per customer. |
Surface | 2B 2D BA(bright annealed) No.1 8K HL(Hair Line) PVC |
Size | According to customer needs |
Standard | AISI, ASTM, GB,BS,EN,JIS,DIN |
Application |
Kitchenware, home appliances, construction decoration, stairs, refrigerated container, burner parts, exhaust parts of auto |
Feature
|
Representative type of Ferrite stainless steel, with magnetic |
Good cost performance, price stability | |
Good shaping capability, weld bending capability, high thermal conductivity, low thermal expansion | |
Advantages | Strong corrosion and decorative effect |
TradeTerms | FOB, CFR, CIF, EXW. |
Payment Terms |
T/T,L/C at sight 30%T/T in advance,balance 70% should be paid after receiving the copy of B/L. |
Cooperation Ship-owner | MSK, CMA, MSC, HMM, COSCO, UA, NYK, OOCL, HPL, YML, MOL |
Packing Information
Standard export seaworthy packing (with waterproof paper, metal belt pack sheet, then put them in wooden pallet,
then put in container) or customized.
Products are packed and labeled according to the regulations and customer's request.
Grate car is taken to avoid any damage which might otherwise be caused during storage or transportation.

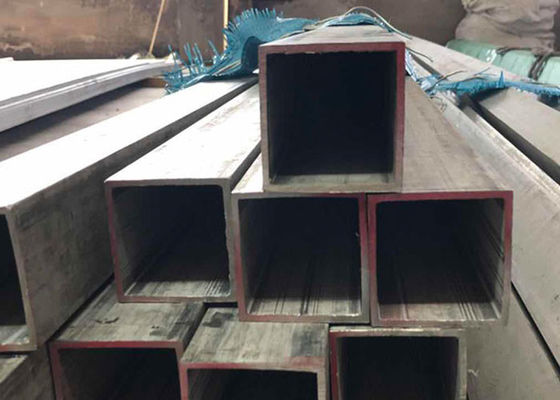

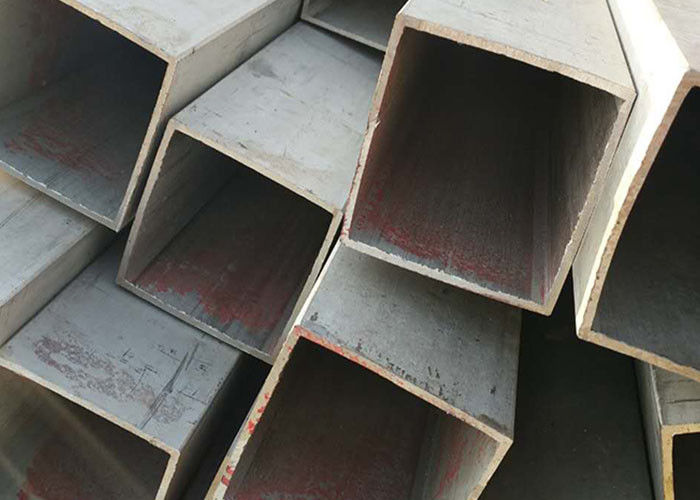

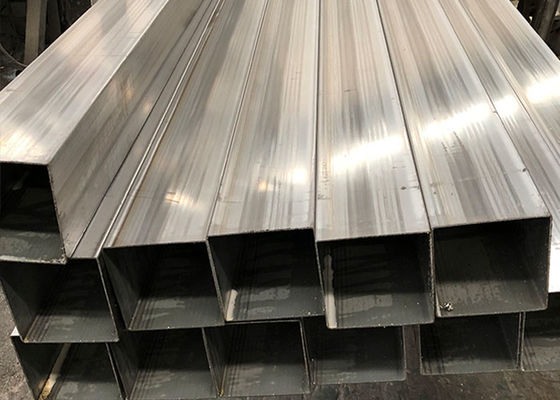

Stainless Steel Welded Tube Pictures
No | Grade (EN) | Grade (ASTM/UNS) | C | N | Cr | Ni | Mo | Others |
1 | 1.4301 | 304 | 0.04 | - | 18.1 | 8.3 | - | - |
2 | 1.4307 | 304L | 0.02 | - | 18.2 | 10.1 | - | - |
3 | 1.4311 | 304LN | 0.02 | 0.14 | 18.5 | 8.6 | - | - |
4 | 1.4541 | 321 | 0.04 | - | 17.3 | 9.1 | - | Ti 0.24 |
5 | 1.4550 | 347 | 0.05 | - | 17.5 | 9.5 | - | Nb 0.012 |
6 | 1.4567 | S30430 | 0.01 | - | 17.7 | 9.7 | - | Cu 3 |
7 | 1.4401 | 316 | 0.04 | - | 17.2 | 10.2 | 2.1 | - |
8 | 1.4404 | 316L/S31603 | 0.02 | - | 17.2 | 10.2 | 2.1 | - |
9 | 1.4436 | 316/316LN | 0.04 | - | 17 | 10.2 | 2.6 | - |
10 | 1.4429 | S31653 | 0.02 | 0.14 | 17.3 | 12.5 | 2.6 | - |
11 | 1.4432 | 316TI/S31635 | 0.04 | - | 17 | 10.6 | 2.1 | Ti 0.30 |
12 | 1.4438 | 317L/S31703 | 0.02 | - | 18.2 | 13.5 | 3.1 | - |
13 | 1.4439 | 317LMN | 0.02 | 0.14 | 17.8 | 12.6 | 4.1 | - |
14 | 1.4435 | 316LMOD /724L | 0.02 | 0.06 | 17.3 | 13.2 | 2.6 | - |
15 | 1.4539 | 904L/N08904 | 0.01 | - | 20 | 25 | 4.3 | Cu 1.5 |
16 | 1.4547 | S31254/254SMO | 0.01 | 0.02 | 20 | 18 | 6.1 | Cu 0.8-1.0 |
17 | 1.4529 | N08926 Alloy25-6mo | 0.02 | 0.15 | 20 | 25 | 6.5 | Cu 1.0 |
18 | 1.4565 | S34565 | 0.02 | 0.45 | 24 | 17 | 4.5 | Mn3.5-6.5 Nb 0.05 |
19 | 1.4652 | S32654/654SMO | 0.01 | 0.45 | 23 | 21 | 7 | Mn3.5-6.5 Nb 0.3-0.6 |
20 | 1.4162 | S32101/LDX2101 | 0.03 | 0.22 | 21.5 | 1.5 | 0.3 | Mn4-6 Cu0.1-0.8 |
21 | 1.4362 | S32304/SAF2304 | 0.02 | 0.1 | 23 | 4.8 | 0.3 | - |
22 | 1.4462 | 2205/ S32205 /S31803 | 0.02 | 0.16 | 22.5 | 5.7 | 3 | - |
23 | 1.4410 | S32750/SAF2507 | 0.02 | 0.27 | 25 | 7 | 4 | - |
24 | 1.4501 | S32760 | 0.02 | 0.27 | 25.4 | 6.9 | 3.5 | W 0.5-1.0 Cu0.5-1.0 |
25 | 1.4948 | 304H | 0.05 | - | 18.1 | 8.3 | - | - |
26 | 1.4878 | 321H/S32169/S32109 | 0.05 | - | 17.3 | 9 | - | Ti 0.2-0.7 |
27 | 1.4818 | S30415 | 0.15 | 0.05 | 18.5 | 9.5 | - | Si 1-2 Ce 0.03-0.08 |
28 | 1.4833 | 309S S30908 | 0.06 | - | 22.8 | 12.6 | - | - |
29 | 1.4835 | 30815/253MA | 0.09 | 0.17 | 21 | 11 | - | Si1.4-2.0 Ce 0.03-0.08 |
30 | 1.4845 | 310S/S31008 | 0.05 | - | 25 | 20 | - | - |
31 | 1.4542 | 630 | 0.07 | - | 16 | 4.8 | - | Cu3.0-5.0 Nb0.15-0.45 |
