High Alloyed 304 Stainless Steel Profiles H Shaped Channel

Basic Information
Place of Origin: Jiangsu
Brand Name: XINFUTIAN
Certification: CO CCPIT
Model Number: 316 316L 304 201
Minimum Order Quantity: 1 ton
Price: Negotiation
Packaging Details: Standard Seaworthy package or as the customer's requirement
Delivery Time: 5-10 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1500 Ton Per Month
Detail Information
Application: Construction,Decoration,Steel Structure Building,Supporting System,industry Standard: ASTM,AISI,JIS,DIN,GB
Shape: U Channel Type: Welded,Seamless,High Alloyed/Stainless Steel Structural
Grade: 201/202/304 /304L/316/316L321/310s/410/420/430/440/439ect Thickness: 0.4-30mm
High Light:

304 Stainless Steel H Profiles

,

Stainless H Shaped Channel Profiles

,

High Alloyed Stainless H Profiles


Product Description

ASTM 304 201 316L Stainless Steel Profiles Stainless Steel U H L Shaped Channel



Standard Parameter of 41 x 21mm Unistrut Channel



Table of c channel standard dimensions, thinkness and weight(kg/meter)
W*H/Thinkness 1.5mm 2.0mm 2.5mm 2.75mm 3mm
41*41 1.68 2.22 2.78 3.07 3.35
41*25 1.29 1.72 2.14 2.36 2.57
41*21 1.18 1.59 1.98 2.2 2.37
41*72 2.42 3.22 4.03 4.43 4.82
41*82 2.65 3.53 4.4 4.85 5.28

Lenghth: Maximum 3000mm

Finishes&materials :HDG, Pre-galvanized, Stainless steel 304/316, GI, Electronic-polish, Electronic-zinc



Inspection Item Standard Inspection Value
Appearance No corrosion, no damage, no black speckle and no pock points Pass
Both surface galvanization ≥100g/m² 115g/m²
Load Channel Dimension difference A Dimension A:±0.4mm -0.3——0.2mm
Dimension difference B Dimension B: ±1.0mm -0.5——0.5mm
Cover Channel Dimension difference A Dimension A:±1.0mm -0.4——0.1mm
Dimension difference B Dimension B:±0.4mm -0.3——0.1mm
Side flatness ≤1.5mm/1000mm 0.6mm/1000mm
Underside flatness ≤1.5mm/1000mm 0.5mm/1000mm
Angle difference ≤1°15′ 1° 5′
Load Channel Load test Strengthen flexibility limitation 5.0mm Strengthen flexibility 4.2mm
Remainder distortion limitation2.0mm Remainder distortion1.4mm
Cover Channel Load test Strengthen flexibility limitation10.0mm Strengthen flexibility 8.9mm
Remainder distortion limitation 2.0mm Remainder distortion 1.5mm
Test table above ,load keel is 50*15*1.2mm, cover channel is 50*19*0.5mm

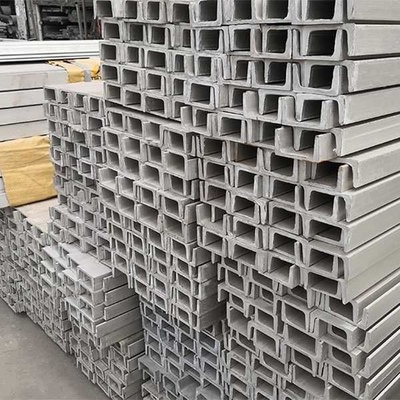

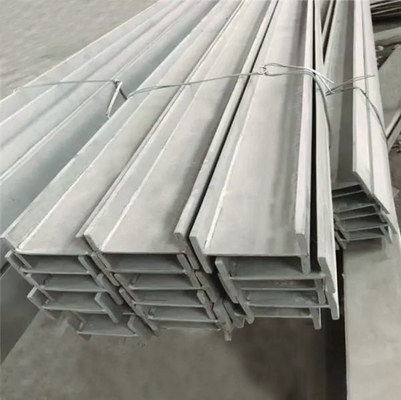

High Alloyed 304 Stainless Steel Profiles H Shaped Channel 0

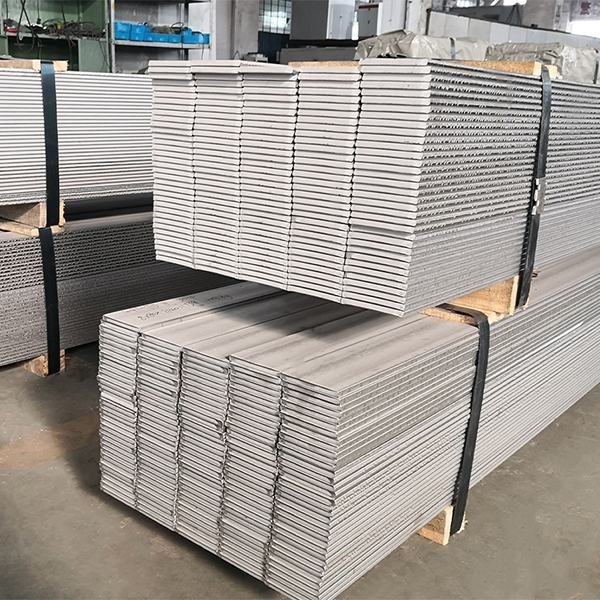

Package
