ASTM 316L Welded Stainless Steel Profiles U Shaped Channel Seamless

Place of Origin Jiangsu
Brand Name XINFUTIAN
Certification CO CCPIT
Model Number 316 316L
Minimum Order Quantity 1 ton
Price Negotiation
Packaging Details Standard Seaworthy package or as the customer's requirement
Delivery Time 5-10 working days
Payment Terms Western Union, L/C, T/T
Supply Ability 1500 Ton Per Month
Product Details
Application Construction,Decoration,Steel Structure Building,Supporting System,industry Standard ASTM,AISI,JIS,DIN,GB
Shape U Channel Type Welded,Seamless,High Alloyed/Stainless Steel Structural
Grade 201/202/304 /304L/316/316L321/310s/410/420/430/440/439ect Thickness 0.4-30mm
High Light

U Shaped Channel Seamless Stainless Profiles

,

316L Welded Stainless Steel Profiles

,

Welded U Shaped Channel Profiles

Leave a Message
Product Description

A276 U Shapes Cold Rolled 316L 304 Stainless Steel Channel bar C Section



Standard Parameter of 41 x 21mm Unistrut Channel





Web width 50mm-400mm (h)
Web thickness 4.5mm-14.5mm (d)
Flange widthness 37mm-104mm (b)
Standard JIS ASTM DIN
Length 6m/9m/12m or customized
Dimension

h*b*d

50mm*37mm*4.5mm---400mm*104mm*14.5mm

Application Building



Table of c channel standard dimensions, thinkness and weight(kg/meter)
W*H/Thinkness 1.5mm 2.0mm 2.5mm 2.75mm 3mm
41*41 1.68 2.22 2.78 3.07 3.35
41*25 1.29 1.72 2.14 2.36 2.57
41*21 1.18 1.59 1.98 2.2 2.37
41*72 2.42 3.22 4.03 4.43 4.82
41*82 2.65 3.53 4.4 4.85 5.28

Lenghth: Maximum 3000mm

Finishes&materials :HDG, Pre-galvanized, Stainless steel 304/316, GI, Electronic-polish, Electronic-zinc



Inspection Item Standard Inspection Value
Appearance No corrosion, no damage, no black speckle and no pock points Pass
Both surface galvanization ≥100g/m² 115g/m²
Load Channel Dimension difference A Dimension A:±0.4mm -0.3——0.2mm
Dimension difference B Dimension B: ±1.0mm -0.5——0.5mm
Cover Channel Dimension difference A Dimension A:±1.0mm -0.4——0.1mm
Dimension difference B Dimension B:±0.4mm -0.3——0.1mm
Side flatness ≤1.5mm/1000mm 0.6mm/1000mm
Underside flatness ≤1.5mm/1000mm 0.5mm/1000mm
Angle difference ≤1°15′ 1° 5′
Load Channel Load test Strengthen flexibility limitation 5.0mm Strengthen flexibility 4.2mm
Remainder distortion limitation2.0mm Remainder distortion1.4mm
Cover Channel Load test Strengthen flexibility limitation10.0mm Strengthen flexibility 8.9mm
Remainder distortion limitation 2.0mm Remainder distortion 1.5mm
Test table above ,load keel is 50*15*1.2mm, cover channel is 50*19*0.5mm

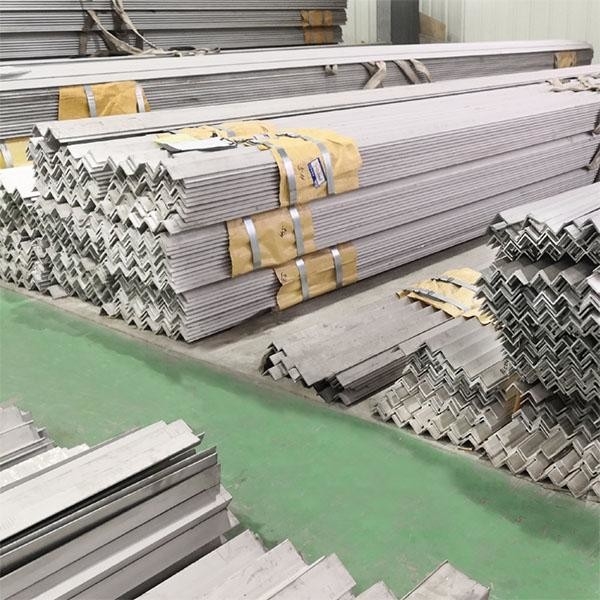

ASTM 316L Welded Stainless Steel Profiles U Shaped Channel Seamless 0

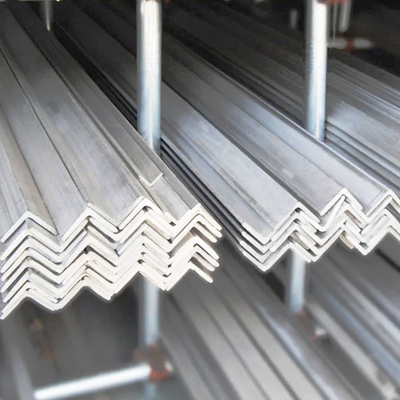

ASTM 316L Welded Stainless Steel Profiles U Shaped Channel Seamless 1



Packing Details : Export standard package,bundled or be required.



The inner size of container is below:

20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)

40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)

40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)

Delivery Details : 7-15 days,or according to the order quantity or upon negotiation



Package Wooden pallets, standard export package or as required
Lead Time 7-10 days after get deposit
Payment Terms T/T, L/C
Price Terms FOB, CRF, CIF, EXW
MOQ 1 Ton



RFQ



Q1.What's your delivery time?

5-10 days after receiving payments stock size



Q2.What's your acceptance price term?

FOB/CIF/CFR



Q3.What's your acceptance payment term?

T/T L/C



Q4.Can I get free sample?

Yes, we can provide some free samples for you if you need.

Q5.What can we do for you?

We always shorten delivery time for our buyer.

We always package steel products well.

We always fix steel product in container well to make it safe amve at destination port.

We always provide best and professional forward service and after sales service.
