| Place of Origin: | China |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | SGS ，CO ,Form E |
| Model Number: | 6061 |
| Minimum Order Quantity: | 1ton in stock size |
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 7-10 natural days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 1000ton /month |
| Grade: | 5000 Series, 6063 6061 5005 5052 7075, 4045 & 3003, 1000~8000 Series, 1000/2000/3000/4000/5000/6000/7000 Series | Width: | 10mm~2500mm, 40-1600mm, As Per Custom Require |
|---|---|---|---|
| Surface Treatment: | Coated, Embossed, Mill Finish, Other, Mill Polish | Application: | Industry, Decoration, Aircraft Structures, Aerospace |
| Type: | Plate, Sheet, Sublimation, Sheet/Plate/Panel | Packing: | Standard Seaworthy Wooden Pallet |
| High Light: | Not Polished Aluminum alloy Sheets Plates,6061 Aluminum 1100 Sheet Metal,5mm Aluminum Sheet Metal Plate |
||

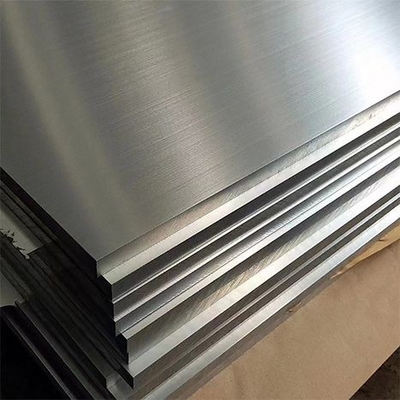

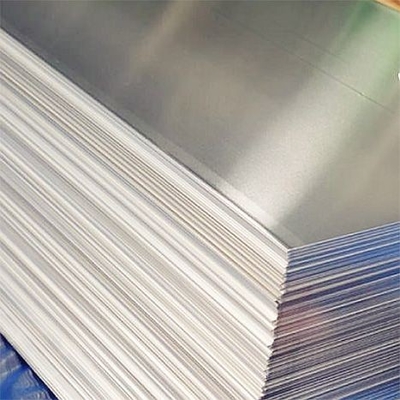

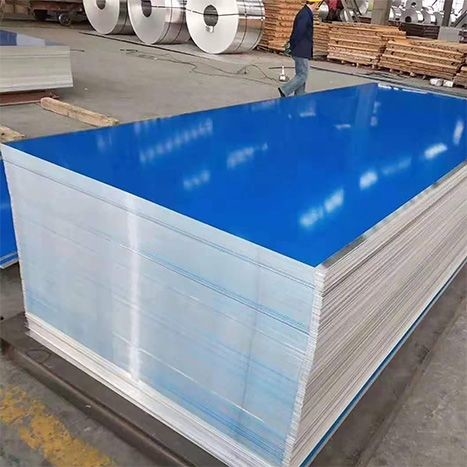

1050 1060 1100 6061 5MM Metal Aluminum Sheet Plate
6061 Aluminum Sheet & Plate offers a combination of higher strength, good corrosion resistance and machinability making the 6061 grade the most widely used aluminum sheet and plate grade available for all types of fabrication projects. The general purpose 6061 Aluminum Sheet & Plate is heat treatable, resists cracking due to stress, and is easy to weld and machine, but limited on formability. 6061 Aluminum Sheet & Plate are ideal for structural framing, base plates, gussetts, aircraft, marine and automotive parts, etc.
SPECIFICATIONS:
6061-T6, T651; ASTM B209; AMS-QQ-A-250/11
FINISH:
Mill Finish, Not Polished, Smooth Surface
CHARACTERISTICS:
Welding = Excellent
Machining / Grinding = Good
Bending / Forming = Poor
Wear Resistance = Good
Corrosion Resistance = Good
MECHANICAL PROPERTIES:
Tensile Strength = 45 ksi; Yield Point = 40 ksi
Elongation % in 2"= 12%
Modulus of Elasticity = 10 ksi
Shear Strength = 30 ksi; Fatigue Limit = 14%
Brinell Hardness = 95
AVAILABLE SIZES:
1' x 1', 1' x 2', 1' x 4', 2' x 2', 2' x 4', 4' x 4', 4' x 8', 4' x 10', 4' x 12', 5' x 12' or Cut to Size and Custom Shapes
HOW TO MEASURE:
Thickness (A) X Width X Length
|
Thickness
|
Aluminum sheet:0.15-6.0mm aluminum plate:6.0-25.0mm
|
|
Width
|
20-2000mm
|
|
Standard
|
GB, JIS, DIN, ASTM
|
|
Surface treatment
|
Brushed, Mirror, Embossed, Sandblasted, etc
|
|
Temper
|
O/H111 H112 H116/H321 H12/H22/H32 H14/H24/H34/H16/H26/H36 H18/H28/H38 H114/H194, etc.
|
|
Type
|
Coil/sheet/strips/plate
|
|
Package
|
Standard export package,such as wooden box or as required.
|
|
1000 Series
|
Industrial Pure Aluminum(1050,1060 ,1070, 1100)
|
|
2000 Series
|
Aluminum-copper alloys(2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17)
|
|
3000 Series
|
Aluminum-manganese alloys(3A21, 3003, 3103, 3004, 3005, 3105)
|
|
4000 Series
|
Al-Si alloys(4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A)
|
|
5000 Series
|
Al-Mg alloys(5052, 5083, 5754, 5005, 5086,5182)
|
|
6000 Series
|
Aluminum Magnesium Silicon Alloys(6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02)
|
|
7000 Series
|
Aluminum, Zinc, Magnesium and Copper Alloys(7075, 7A04, 7A09, 7A52, 7A05)
|
