| Place of Origin: | China |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | SGS ，CO ,Form E |
| Model Number: | 5052 5083 6061 |
| Minimum Order Quantity: | 1ton in stock size |
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 7-10 natural days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 1000ton /month |
| Grade: | 5000 Series, 6063 6061 5005 5052 7075, 4045 & 3003, 1000~8000 Series, 1000/2000/3000/4000/5000/6000/7000 Series | Width: | 10mm~2500mm, 40-1600mm, As Per Custom Require |
|---|---|---|---|
| Surface Treatment: | Coated, Embossed, Mill Finish, Other, Mill Polish | Application: | Industry, Decoration, Aircraft Structures, Aerospace |
| Type: | Plate, Sheet, Sublimation, Sheet/Plate/Panel | Packing: | Standard Seaworthy Wooden Pallet |
| High Light: | 1060 Aluminum 1050 Sheet Metal,10mm Aluminum Sheet Plate,Sublimation Aluminum Alloy Plate Sheet |
||
Aluminum alloy plate China manufacture 1050 1060 1100 3003 5052 6061 7075 8011
|
Product
|
Alloy Series
|
Thickness(mm)
|
Width(mm)
|
Length(mm)
|
|
Aluminum Sheet
|
1-8 Series
|
0.3-6
|
50-2250
|
100-11000mm or by coil |
|
Aluminum Coil/Strip
|
1-8 Series
|
0.3-6
|
50-2250/20-800
|
|
|
Aluminum Plate
|
3,5,6 Series
|
6.0-170
|
50-2250
|
|
|
Aluminum Tread(Checkered) Plate
|
1,3,5 Series
|
0.8-6.35
|
50-2250
|
|
|
Can End/Tab Stock
|
5052/5182
|
0.15-0.3
|
20-1600
|
|
Material table
|
Product use
|
|
|
1000 series
|
1050
|
Food, chemical and extrusion coils, various hoses, fireworks powder
|
|
1060
|
Chemical equipment is its typical use
|
|
|
1100
|
Chemical products, food industry installations and storage containers, weldments, heat exchangers, printed boards, nameplates and reflective appliances
|
|
|
|
||
|
|
2024
|
Aircraft structures, rivets, missile components, truck hubs, propeller components and other structural components
|
|
2A12
|
Aircraft skin, spacer frame, wing rib, wing beam, rivet, etc., and structural parts of buildings and transportation vehicles
|
|
|
2A14
|
Free forging and die forging with complex shape
|
|
|
|
||
|
3000 series
|
3003
|
Kitchen utensils, food and chemical products, storage equipment, storage tanks for transporting liquid products, and various pressure vessels and pipelines
|
|
3004
|
Chemical product production and storage devices, plate processing parts, building processing parts, building tools and various lamp parts
|
|
|
3105
|
Room partition, baffle, movable room board, eaves gutter and downpipe, sheet forming parts, bottle caps, corks, etc
|
|
|
|
||
|
4000 series
|
4032
|
Piston, cylinder head
|
|
4043
|
Building distribution frame
|
|
|
4343
|
The products are widely used in automobiles, water tanks, radiators, etc.
|
|
|
|
||
|
5000 series
|
5052
|
Aircraft fuel tank, oil pipe, traffic vehicle and ship sheet metal parts, instruments, street lamp supports and rivets, hardware products, etc
|
|
5083
|
Plate Weldments of ships, automobiles and aircraft; Pressure vessel, refrigeration device, TV Tower, drilling equipment, transportation equipment
|
|
|
5754
|
Storage tanks, pressure vessels, ship materials
|
|
|
|
||
|
6000 series
|
6005
|
Ladder, TV antenna, etc
|
|
6061
|
Pipes, rods, profiles and plates for trucks, towers, ships, trams, furniture, mechanical parts, precision machining, etc
|
|
|
6063
|
Building profiles, irrigation pipes and extruded materials for vehicles, stands, furniture, fences, etc
|
|
|
|
||
|
|
7075
|
It is used for manufacturing aircraft structure and other high stress structural parts and molds with high strength and strong corrosion resistance
|
|
7175
|
High strength structure for forging aircraft.
|
|
|
7475
|
Aluminum clad and non aluminum clad plates for fuselage, wing frame, stringer, etc. Other parts with high strength and high fracture toughness
|
|
|
|
||
|
8000 series
|
8011
|
The aluminum plate with bottle cap as the main function is also used in radiators, most of which are used in aluminum foil products
|

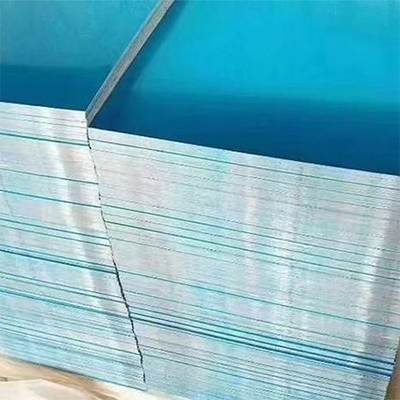

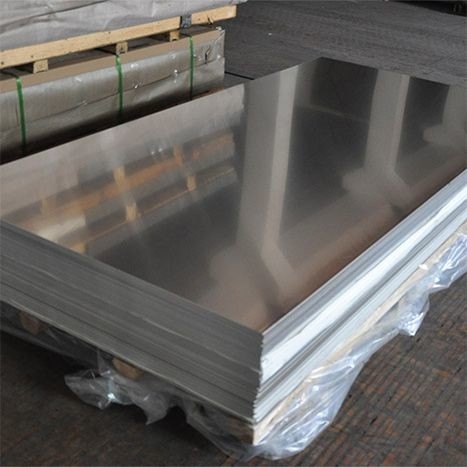

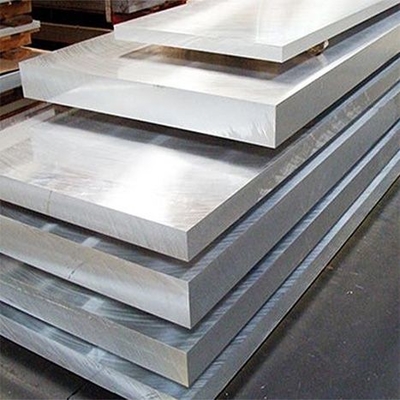

Products show
Our service
| 1. ISO Verified Outstanding Manufacturer 2. The third party inspection: SGS, BV, CE, COC, AI and other 3. Flexible Payment : T/T, LC, O/A, CAD, DAP , KUNLUN Bank 4. Sufficient Stock 5. Quick Delivery Time, Long time price validity 6. Tracking picture of transport : production, Loading and reinforcement loading Pictures 7. Rich experience Professioal Sale Team |
1. Quality Guarantee after Receiving the Goods: Offer money return or Ship new products for free if any problems happen 2. Technical Guidance for further Processing 3. VIP Service and Free Order after Accumulat |
Related goods
Alunimun channel
Aluminum plate ,sheet
Aluminum pipe
Aluminum rod
Q: Do You Provide Samples ? Is It Free Or Extra ?
A: Yes, We Could Offer The Sample For Free Charge But Do Not Pay The Cost Of Freight.
Q: What are your payment methods?
A: TT or 100% irrevocable L/C at sight.
Q: Does the factory have the goods in stock?
A: You can leave your e-mail and our sales will contact you. You can consult our sales. If you have any special requirements on the aluminum products. We can customize for you.
Q: Are your aluminum products quality reliable?
A: We apply professional and advanced equipment for processing aluminum products. These equipment are top-class at home and abroad. What’s more, our factory has complete equipment configurations for fine machining. And we have precise equipment for testing products quality. Thus, the quality of end products can be promised.
Q:How can I get samples?
Please contact us and we will offer samples for free, you will only need to pay the shipping cost.
