| Place of Origin: | Jiangsu ,China |
|---|---|
| Brand Name: | XFT |
| Certification: | SGS |
| Minimum Order Quantity: | 15kg |
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 5- 8 working day |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 kg per week |
| Model Number: | Hastelloy C276 | Customized: | OEM, ODM, OBM |
|---|---|---|---|
| Density: | 8.9 G/cm3 | Shape:: | Strip |
| Port:: | Shanghai,Ningbo,Shenzhen | Flux Content: | 0.03% |
| High Light: | Solid Solution Forged Nickel Based Alloy,Hastelloy C276 Strip Coil,Hastelloy 8.9 g/cm3 Strip Coil |
||

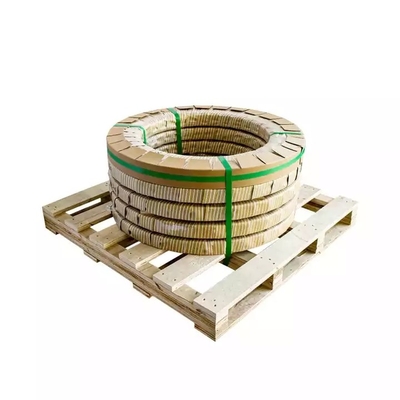

Solid Solution Forged Nickel Based Alloy Hastelloy C276 Strip Coil
| Item | HC-276 | C-22 | C-4 | B2 | B3 | N |
| C | ≤0.01 | ≤0.015 | ≤0.015 | ≤0.02 | ≤0.01 | 0.04-0.08 |
| Mn | ≤1 | ≤0.5 | ≤1 | ≤1 | ≤3 | ≤1 |
| Fe | 4-7 | 2-6 | ≤3 | ≤2 | ≤1.5 | ≤5 |
| P | ≤0.04 | ≤0.02 | ≤0.04 | ≤0.04 | -- | ≤0.015 |
| S | ≤0.03 | ≤0.02 | ≤0.03 | ≤0.03 | -- | ≤0.02 |
| Si | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.1 | ≤0.1 | ≤1 |
| Ni | rest | rest | rest | rest | ≥65 | rest |
| Co | ≤2.5 | ≤2.5 | ≤2 | ≤1 | ≤3 | ≤0.2 |
| Ti+Cu | -- | -- | ≤0.7 | -- | ≤0.4 | ≤0.35 |
| Al+Ti | -- | -- | -- | -- | ≤0.5 | ≤0.5 |
| Cr | 14.5-16.5 | 20-22.5 | 14-18 | ≤1 | ≤1.5 | 6-8 |
| Mo | 15-17 | 12.5-14.5 | 14-17 | 26-30 | ≤28.5 | 15-18 |
| B | -- | -- | -- | -- | -- | ≤0.01 |
| W | 3-4.5 | 2.5-3.5 | -- | -- | ≤3 | ≤0.5 |
| V | ≤0.35 | ≤0.35 | -- | 0.2-0.4 | -- | ≤0.5 |
Hastelloy Form: Pipe / Tube (welded and seamless), Plate / Sheet, Bar, Wire, Fittings
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
Applications
Manufacture and handling of sodium hydroxide, particularly at temperature above 300C. Production of viscose rayon. Manufacture of soap.
Analine hydrochloride production and in the chlorination of aliphatic hydrocarbons such as benzene, methane and ethane. Manufacture of vinyl chloride monomer. Reactors and vessels in which fluorine is generated and reacted with hydrocarbons.
Other product series :
FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.
NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.
CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/
Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.
Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.
Inconel alloy: Inconel 600,601,617,X-750,625,690,718,825.
Incoloy alloy: Incoloy 800,800H,800HT,825,925.
Hastelloy alloy: HC-276,C-22,C-4,HB,B/2/3,X,N.
Monel Alloy: Monel 400,K500.
High-temperature alloy : A-286,Nimonic80A/90,GH131,GH1140,GH36,GH2706,GH2901,GH3625,GH3536,GH4169.
Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.
Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.
