DN200 Stainless Steel Plate Flange CNC Machining Pn16 Pipe MS

Brand Name:	XINFUTIAN
Model Number:	316, 304, 316L
MOQ:	10 PCS
Price:	Negotiation
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000 PCS / Months

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Certification:

BV,TUV,DNV,SGS,CE,LR.

Technics:

Forged

Type:

Elbow / Reducer / Tee / Bend

Model Number:

316,304,316L

Connection:

Welding

Head Code:

Round

Surface:

Pickling And Polishing

Quality:

Prime

Packaging Details:

Wooden Cartons and Plastic Bag of each good.

Supply Ability:

1000 PCS / Months

Highlight:

DN200 Stainless Steel Plate Flange

CNC Machining Stainless Steel Plate Flange

Pn16 Stainless Steel Pipe Flange

Product Description

CNC Machining DN200 Stainless Steel Plate Flange Pn16 Stainless Steel Pipe Flange MS Flange

What materials can we provide?

Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L
Duplex steel: 31803,32205,32750,32760
Nickel Alloy:
UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556
UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926
Monel: UNS N04400, N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200

How can we service our customers?

Our ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.

Our major products

seamless or welded Tees, Crosses, LR & SR Elbows (180°, 90°, 45°), Reducers (Concentric or Eccentric), Stub Ends, End Caps, Socket & Threaded Couplings in material of stainless steel, carbon steel, alloy steel and other special steels. Size is from 1/2"(DN15) to 100’’(DN2500), the wall thickness is up to 100mm.

Name	Stainless steel flange
Material	Stainless Steel:SS304,SS316,SS304L,SS316L,SS321,SS310,904L,1.4401,1.4403
	Duplex Stainless Steel:UNS31803,2205,UNS32205,UNS31500,UNS32750,UNS32760,1.4462,1.4410,1.4501,and etc.
	Nickel alloy: incone1600,incone1625,incone1690,incoloy800,, incoloy800H,C22,C-276,Mone1400,Alloy20 etc.
Type	Plate, Slip-on, Welding Neck, Blind, Threaded, Socked Weld,LWN,Loose
Standard	ANSI/ASME B16.5,BS4504,GOST,DIN,UNI,EN1092,JIS B2220,API 6A,SABA1123,etc
Pressure	150#-2500#,PN0.6-PN420,5K-40K,API2000-15000
OD	15mm-6000mm
Connection	RF,FF,RTJ,M,FM
Application	For Water, Oil and Gas Industrial
Certificate	CE/ISO/GOST

No	Chemical Composotion %
	C	Cr	Ni	Mn	P	S	Mo	Si	Cu	N	Other
310S	≤0.08	24.00-26.00	19.00-22.00	≤2.00	≤0.035	≤0.030	-	≤1.00	-	-	-
316	≤0.08	16.00-18.50	10.00-14.00	≤2.00	≤0.035	≤0.030	2.00-3.00	≤1.00	-	-	-
	≤0.12	16.00-19.00	11.00-14.00	≤2.00	≤0.035	≤0.030	1.80-2.50	≤1.00	-	-	Ti5(C%-0.02)~0.08
	≤0.08	16.00-19.00	11.00-14.00	≤2.00	≤0.035	≤0.030	1.80-2.50	≤1.00	-	-	Ti5*C%-0.70
316L	≤0.030	16.00-18.00	12.00-15.00	≤2.00	≤0.035	≤0.030	2.00-3.00	≤1.00	-	-	-
316N	≤0.08	16.00-18.00	10.00-14.00	≤2.00	≤0.035	≤0.030	2.00-3.00	≤1.00	-	0.10-0.22	-
316N	≤0.030	16.00-18.50	10.50-14.50	≤2.00	≤0.035	≤0.030	2.00-3.00	≤1.00	-	0.12-0.22	-
316J1	≤0.08	17.00-19.00	10.00-14.50	≤2.00	≤0.035	≤0.030	1.20-2.75	≤1.00	1.00-2.50	-	-
316J1L	≤0.030	17.00-19.00	12.00-16.00	≤2.00	≤0.035	≤0.030	1.20-2.75	≤1.00	1.00-2.50	-	-
420J1	0.16-0.25	12.00-14.00	3)	≤1.00	≤0.035	≤0.030	-	≤1.00	-	-	-

Some Products Show

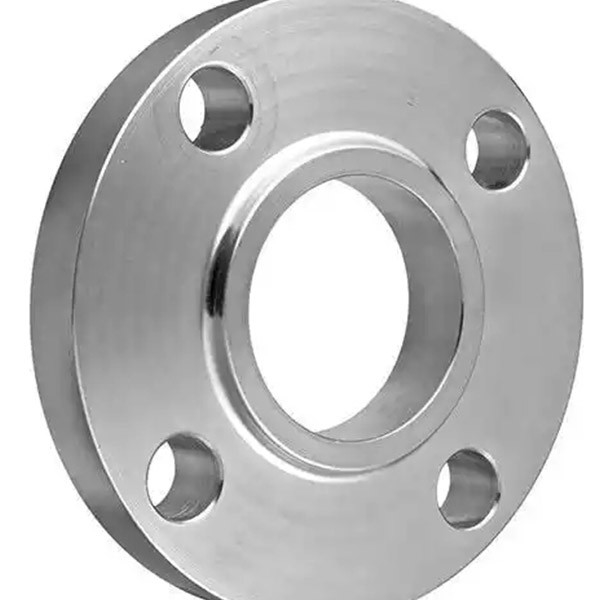

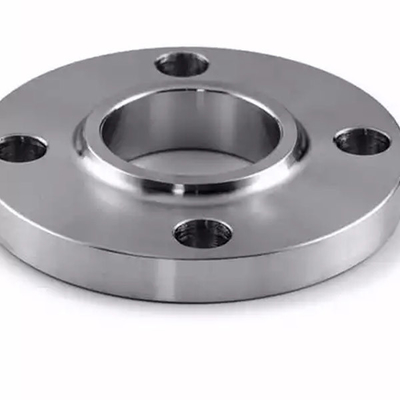

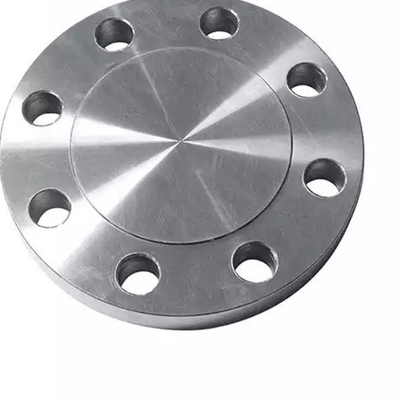

DN200 Stainless Steel Plate Flange CNC Machining Pn16 Pipe MS 0
