| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | BV,TUV,DNV,SGS,CE,LR. |
| Minimum Order Quantity: | 10 PCS |
| Price: | Negotiation |
| Packaging Details: | Wooden Cartons and Plastic Bag of each good. |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 PCS / Months |
| Model Number: | 316,304,316L | Technics: | Forged |
|---|---|---|---|
| Type: | Elbow / Reducer / Tee / Bend | Connection: | Welding |
| Head Code: | Round | Surface: | Pickling And Polishing |
| Quality: | Prime | ||
| High Light: | Weld Neck Stainless Steel Flange,Slip On 316L Stainless Steel Flange,Pickling Stainless Steel Blind Flange |
||
Stainless Steel Flange, Slip On/Weld Neck/Plate Flange/Blind Flange For Pipe Connection
| Name | Stainless steel flange |
| Material | Stainless Steel:SS304,SS316,SS304L,SS316L,SS321,SS310,904L,1.4401,1.4403 |
| Duplex Stainless Steel:UNS31803,SAF2205,UNS32205,UNS31500,UNS32750,UNS32760,1.4462,1.4410,1.4501,and etc. | |
| Nickel alloy: incone1600,incone1625,incone1690,incoloy800,, incoloy800H,C22,C-276,Mone1400,Alloy20 etc. | |
| Type | Plate, Slip-on, Welding Neck, Blind, Threaded, Socked Weld,LWN,Loose |
| Standard | ANSI/ASME B16.5,BS4504,GOST,DIN,UNI,EN1092,JIS B2220,API 6A,SABA1123,etc |
| Pressure | 150#-2500#,PN0.6-PN420,5K-40K,API2000-15000 |
| OD | 15mm-6000mm |
| Connection | RF,FF,RTJ,M,FM |
| Application | For Water, Oil and Gas Industrial |
| Certificate | CE/ISO/GOST |
What materials can we provide?
Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L
Duplex steel: 31803,32205,32750,32760
Nickel Alloy:
UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556
UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926
Monel: UNS N04400, N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200
How can we service our customers?
Our ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.
| No | Chemical Composotion % | ||||||||||
| C | Cr | Ni | Mn | P | S | Mo | Si | Cu | N | Other | |
| 310S | ≤0.08 | 24.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - |
| 316 | ≤0.08 | 16.00-18.50 | 10.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | - | - |
| ≤0.12 | 16.00-19.00 | 11.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 1.80-2.50 | ≤1.00 | - | - | Ti5(C%-0.02)~0.08 | |
| ≤0.08 | 16.00-19.00 | 11.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 1.80-2.50 | ≤1.00 | - | - | Ti5*C%-0.70 | |
| 316L | ≤0.030 | 16.00-18.00 | 12.00-15.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | - | - |
| 316N | ≤0.08 | 16.00-18.00 | 10.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | 0.10-0.22 | - |
| 316N | ≤0.030 | 16.00-18.50 | 10.50-14.50 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | 0.12-0.22 | - |
| 316J1 | ≤0.08 | 17.00-19.00 | 10.00-14.50 | ≤2.00 | ≤0.035 | ≤0.030 | 1.20-2.75 | ≤1.00 | 1.00-2.50 | - | - |
| 316J1L | ≤0.030 | 17.00-19.00 | 12.00-16.00 | ≤2.00 | ≤0.035 | ≤0.030 | 1.20-2.75 | ≤1.00 | 1.00-2.50 | - | - |
| 420J1 | 0.16-0.25 | 12.00-14.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - |

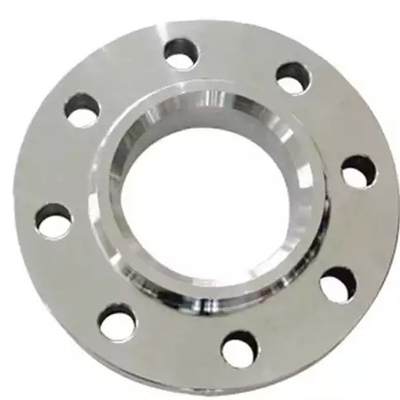

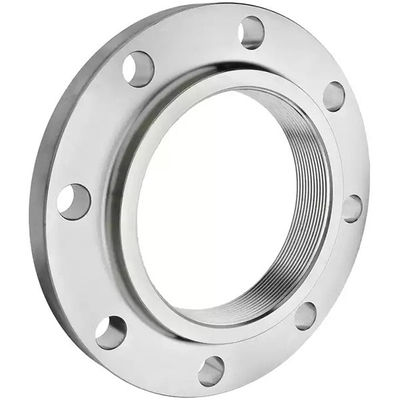

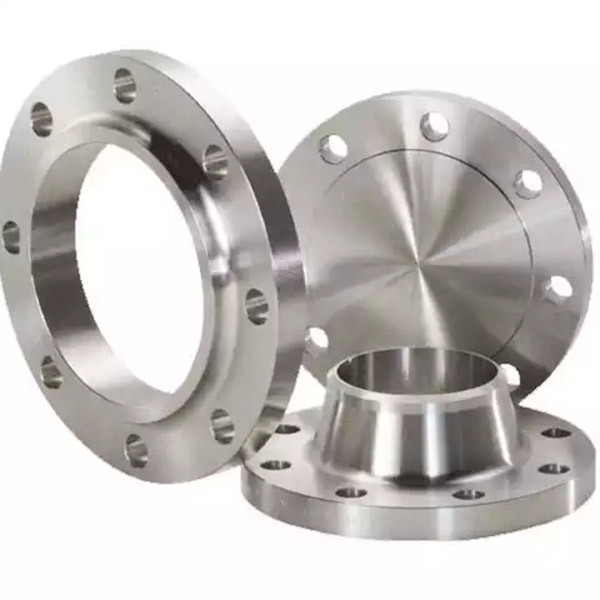

Some Products Show
