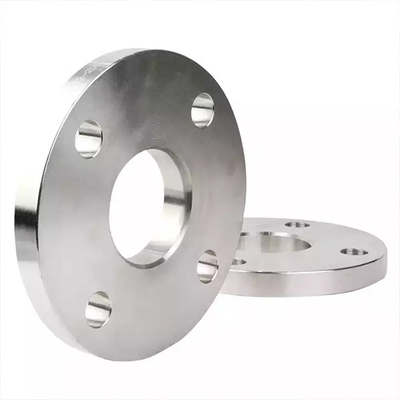

Sch 40 Stainless Steel Flange Welding SS316 316L DIN PN16

Basic Information
Place of Origin: Zhejiang, China
Brand Name: XINFUTIAN
Certification: BV,TUV,DNV,SGS,CE,LR.
Model Number: 201, 304, 316L,
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Wooden Cartons and Plastic Bag of each good.
Delivery Time: 5 - 15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Ton / Month
Detail Information
Technics: Forged Type: Flange
Model Number: SUS201, SUS304, SUS316, F304,F316 ,SS321 Connection: Welding
Flange Type: RF WN Surface: Pickling And Polishing
Quality: Prime Pressure: Class150 / 300 / 600 / 900 /1500 / 2500
High Light:

Sch 40 Stainless Steel Flange

,

DIN PN16 Stainless Steel Flange

,

Welding Stainless Steel Flange


Product Description

Stainless Steel Flange Pipe Flanges Custom Made Flanges Blind Flange Dn200 304


Flange is the parts which connects two pipe ends, flange connection is defined by the flange, gasket and bolt three are connected
as a group of combined sealing structure of the detachable connection. The gasket is added between the two flanges and then
fastened by bolts. Different pressure flange, thickness is different, and the bolts they use are different, when pump and valve
connect with pipe, the parts of the equipment are also made of the corresponding flange shape, also known as flange connection,
usually closured bolted connection parts are also known as flanges, such as the connection of ventilation pipe, this kind of parts
can be called "flange type part", but this connection is only part of a device, such as the connection between flange and water
pump, it's not inapposite to call water pump as flange type parts,but relative small valve,it can be called as flange type parts .


Product Details


Product Name

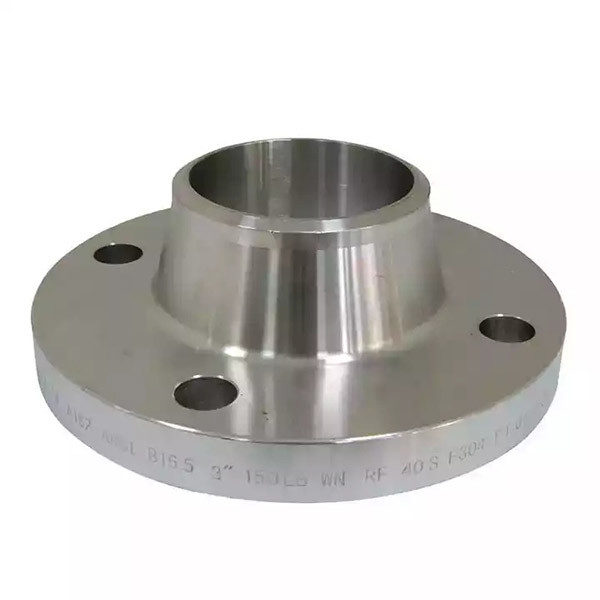

ASTM A182 WN / SO / BL / SW Welded PN16 / 10 Stainless Steel Pipe Fittings Flange


Size


OD:1/8"-100"(6-2500mm)
WT:SCH5S-SCHXXS(1-150mm)


Standard


ASTM A182 WN / SO / BL / SW, DIN2605,DIN2615,DIN2616,DIN2633


Material


304, 316L, 321, 310S, 1.4301, 1.4307, 1.4404, S31803, S32750, 904L, Monel 400, Inconel 800


Surface


Pickling and bright


Certificate


ISO9001, CE, SGS, TUV, DNV, BV, LR, GL, NK, RMRS
Packing:              In wooden cases

Shipment


By sea, by air, by express




Chemical Composition(%)

Grade C Si Mn P S Cr Ni Mo

Cu


201 ≤0.15 ≤0.75 5.5~7.5 ≤0.060 ≤0.03 16.00~18.00 3.5~5.5 - 0.08

1.5


304 ≤0.07 ≤1.00 ≤2.00 ≤0.045 ≤0.03 18.00~20.00 8.00~10.50 -




304L ≤0.030 ≤1.00 ≤2.00 ≤0.045 ≤0.03 18.00~20.00 9.00~13.00 -




316 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 16.00~18.00 10.00~14.00 2.00~3.00




316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 16.00~18.00 12.00~15.00 2.00~3.00




321 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 17.00~19.00 9.00~13.00 -






1. HS CODE: 7307230000,7307210000

2. Trade term: FOB,CNF,CIF

3. Payment term: 30% by T/T as down payment balance against B/L copy or 100% LC at sight.

4. Delivery time: Within 3-15 working days after received deposit or LC draft.

5. A copy of mill test certificate will be provided with shipment.

Sch 40 Stainless Steel Flange Welding SS316 316L DIN PN16 0

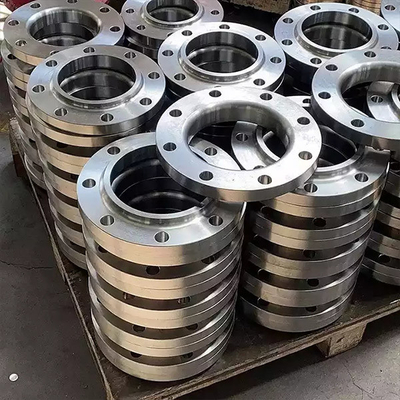

All our products are packed, stored, transported according to the international regulation.The tubes are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Plus, ply wooden box are available for special protection. Other kinds of packing can be offered if request.
