| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | BV,TUV,DNV,SGS,CE,LR. |
| Minimum Order Quantity: | 10 PCS |
| Price: | Negotiation |
| Packaging Details: | Wooden Cartons and Plastic Bag of each good. |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 PCS / Months |
| Model Number: | 316,304,316L | Technics: | Forged |
|---|---|---|---|
| Type: | Elbow / Reducer / Tee / Bend | Connection: | Welding |
| Head Code: | Round | Surface: | Pickling And Polishing |
| Quality: | Prime | ||
| High Light: | Nipple Fitting Neck Weld Flange,Stainless Steel Neck Weld Flange,316L Stainless Steel Neck Flange |
||
Stainless Steel High Vacuum Flange & Components Stainless Steel Neck Weld Flange Nipple Fitting
How can we service our customers?
Our ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.
What materials can we provide?
Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L
Duplex steel: 31803,32205,32750,32760
Nickel Alloy:
UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556
UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926
Monel: UNS N04400, N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200
Standard References
Our products are produced strictly based on the national standards GBT12459-05, GB13401-05; Sinopec standards SH3408, SH3409;Thermal power standard D-GD87; American national standards ASME B16.9, ANSI B16.9, B16.28, B16.11 and Japan national standard JISB2312.
| No | Chemical Composotion % | ||||||||||
| C | Cr | Ni | Mn | P | S | Mo | Si | Cu | N | Other | |
| 310S | ≤0.08 | 24.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - |
| 316 | ≤0.08 | 16.00-18.50 | 10.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | - | - |
| ≤0.12 | 16.00-19.00 | 11.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 1.80-2.50 | ≤1.00 | - | - | Ti5(C%-0.02)~0.08 | |
| ≤0.08 | 16.00-19.00 | 11.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 1.80-2.50 | ≤1.00 | - | - | Ti5*C%-0.70 | |
| 316L | ≤0.030 | 16.00-18.00 | 12.00-15.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | - | - |
| 316N | ≤0.08 | 16.00-18.00 | 10.00-14.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | 0.10-0.22 | - |
| 316N | ≤0.030 | 16.00-18.50 | 10.50-14.50 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | 0.12-0.22 | - |
| 316J1 | ≤0.08 | 17.00-19.00 | 10.00-14.50 | ≤2.00 | ≤0.035 | ≤0.030 | 1.20-2.75 | ≤1.00 | 1.00-2.50 | - | - |
| 316J1L | ≤0.030 | 17.00-19.00 | 12.00-16.00 | ≤2.00 | ≤0.035 | ≤0.030 | 1.20-2.75 | ≤1.00 | 1.00-2.50 | - | - |
| 420J1 | 0.16-0.25 | 12.00-14.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - |

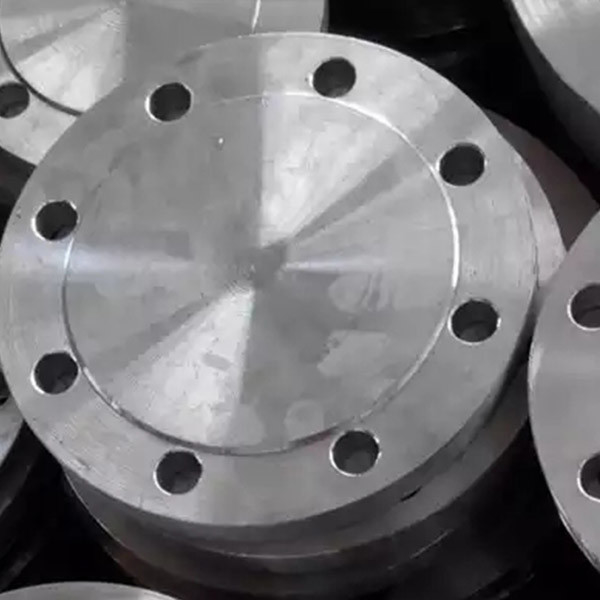

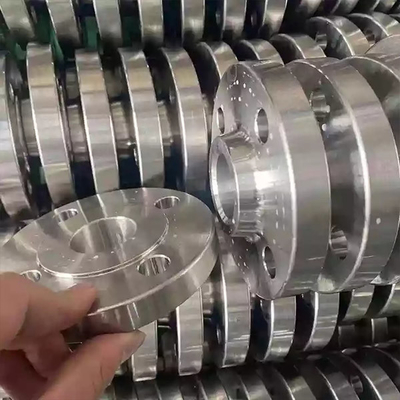

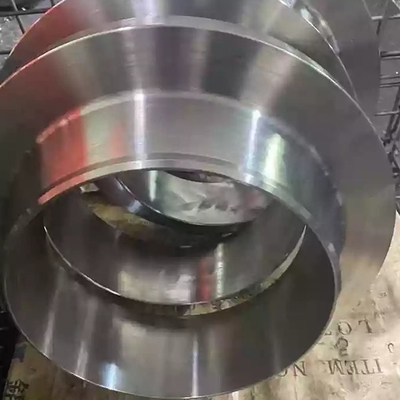

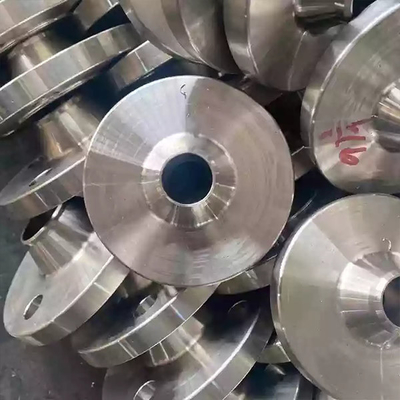

Some Products Show
All our products are packed, stored, transported according to the international regulation.The tubes are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Plus, ply wooden box are available for special protection. Other kinds of packing can be offered if request.
