| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | TISCO ,BAOSTEEL |
| Certification: | ISO,BV |
| Model Number: | 2205/1.4462/UNS S32205/S31803 |
| Minimum Order Quantity: | 2 ton |
| Price: | Negotiation |
| Packaging Details: | Standard Seaworthy package or as the customer's requirement. |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 1000 Ton/Month |
| Technology: | Cold And Hot Rolled | Type: | Sheet,Rod,Pipe,Coil |
|---|---|---|---|
| Item: | Stainless Steel | Color: | Natural |
| Shipping: | Air,Sea | Material: | 2205 |
| High Light: | Duplex Stainless Steel Sheet Pipe,S31803 Duplex Stainless Steel Pipe,1.4462 Duplex Stainless Steel Pipe |
||

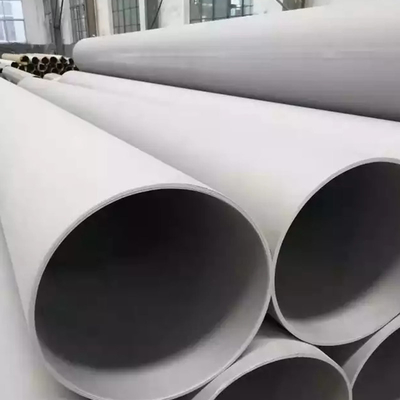

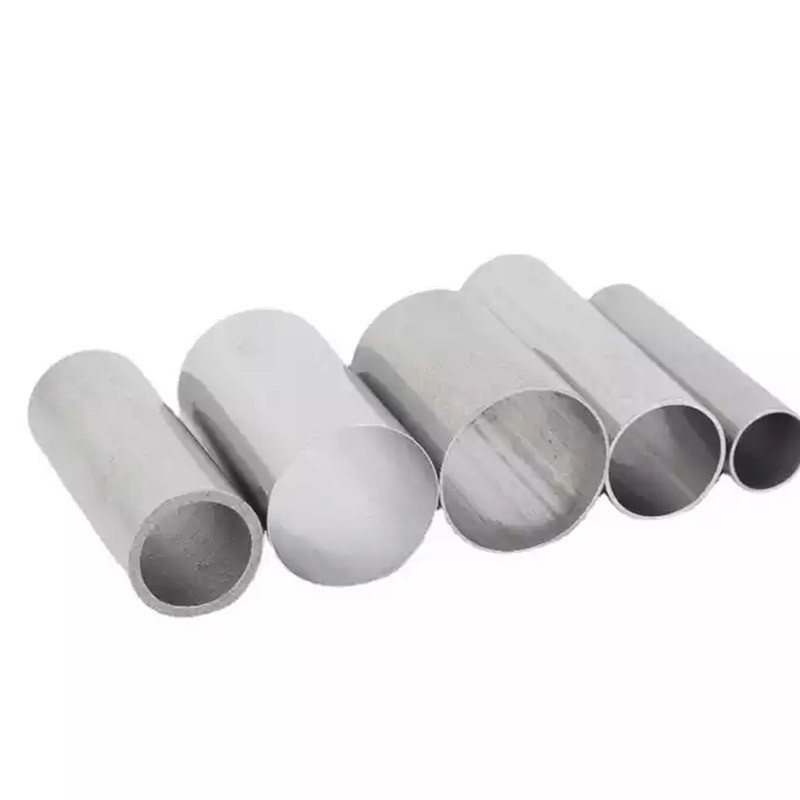

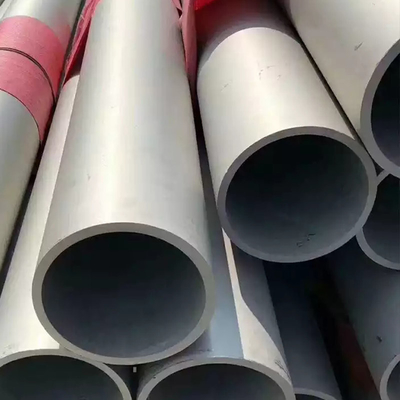

S31803 / 2205/1.4462 Duplex Stainless Steel Sheet Pipe For Heat Resitance For Truck
Alloy 2205 ASTM Grade
| Grade | 2205 Seamless and welded tube and pipe | 2205 Plate, sheet and strip | 2205 Bar | 2205 Forgings | 2205 Flanges | 2205 Fittings |
| Duplex 2205 / Avesta 2205 / Saf 2205 Duplex Stainless Steel | ASTM A789; A790 NFA 49-217 |
ASTM A240 EN 10088-2 |
ASTM A276 ASTM A479 EN 10088-3 |
ASTM A182 | ASTM A182 | ASTM A182, ASTM A815 |
WUXI XINFUTIAN METAL PRODUCTS CO., LTD now includes Duplex 2205 (UNS S32205 / S31803), in sheet, sheet coil, plate, plate coil, round bar, processed flat bar and tubular products. Duplex 2205 is ideally suited for high-pressure and highly corrosive environments.
Products Details
2205 Duplex price per pound is usually higher than the ordinary ferritic steel types but is lower than high titanium content alloys. Duplex Stainless Steel 2205 Products are very much stress corrosion cracking resistant. With this quality, they can be applied in high pressure environments. Duplex Steel 2205 pressure vessel material can be used in marine environments and the Duplex Alloy 2205 for onshore industry is a common choice.
Duplex 2205 Stainless Steel grades have high yield strength and a are characterized by their two phase chromium, nickel and molybdenum alloy. 2205 Stainless Steel is a result of continuous modifications over the past and was standardized in 1996. It is very strong in the rage of -50 degrees to 300 degrees Celsius temperature. This material takes precipitation above this temperature range and becomes brittle below the range. Therefore it cannot be applied in cryogenic conditions or at melting point temperatures.
Chemical Properties
| C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 2205 (S31803) |
0.03 max |
2.0 max |
1.0 max |
0.03 max |
0.02 max |
min: 21.0 max: 23.0 |
min: 2.5 max: 3.5 |
min: 4.5 max: 6.5 |
min: 0.08 max: 0.20 |
| 2205 (S32205) |
0.03 max |
2.0 max |
1.0 max |
0.03 max |
0.02 max |
min: 22.0 max: 23.0 |
min: 3.0 max: 3.5 |
min: 4.5 max: 6.5 |
min: 0.14 max: 0.20 |
Mechanical Properties
| Grade | Tensile Strength ksi (min) |
Yield Strength 0.2% ksi (min) |
Elongation % | Hardness (HB) MAX |
| 2205 | 90 | 65 | 25 | 217 |
Package
| MOQ | 1 Ton |
| Price Term | FOB |
| Payment | L/C at sight or 30% TT as deposit |
| Delivery Time | 20-30 days after receiving deposit by T/T or L/C. |
| Sample | Samples free and express charges bear by you |
Standard export package with water proof paper, and metal pallet, and angle bar protection, and steel strip or as required
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS
Applications
1). Chemical processing, transport and storage – pressure vessels, tanks, piping, and heat exchangers
2). Oil and gas exploration and processing equipment – piping, tubing, and heat exchangers
3). Marine and other high chloride environments
4). Effluent scrubbing systems
5). Pulp and paper industry – digesters, bleaching equipment, and stock-handling systems
6). Cargo tanks for ships and trucks
7). Food processing equipment
8). Biofuels plants
