products details

Home Products

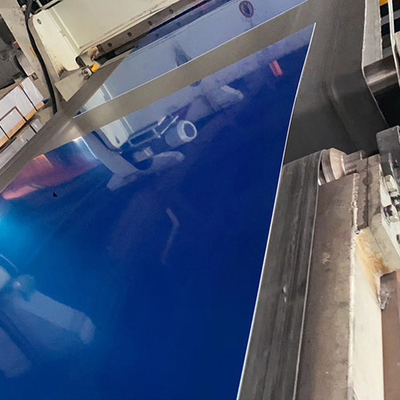

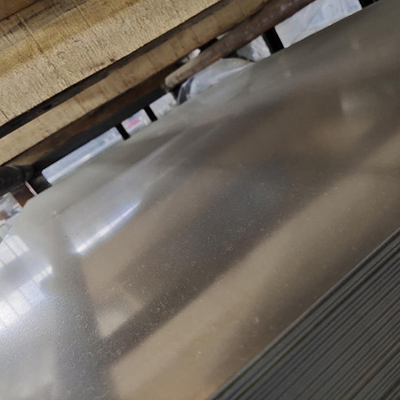

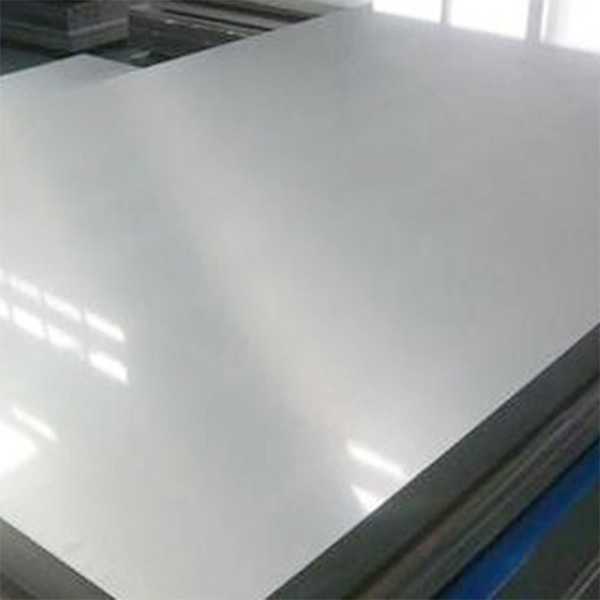

Polished Coated Aluminum Plate Sheet Metal 4x8 1100 1150 1170 200mm

Name: Polished Coated Aluminum Plate Sheet Metal 4x8 1100 1150 1170 200mm
Brand: WUXI XINFUTIAN METAL PRODUCTS CO., LTD
SKU: 5052 5083 6061
Price: 2,350.00 USD
Availability: InStock

Brand Name:	XINFUTIAN
Model Number:	5052 5083 6061
MOQ:	1ton in stock size
Price:	Negotiation
Payment Terms:	L/C, D/P, T/T
Supply Ability:	1000ton /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS ，CO ,Form E

Model Number:

Customer's Requirement

Temper:

O - H112

Surface Treatment:

Coated, Embossed, Mill Finish, Other, Mill Polish

Tolerance:

±1%

Type:

Plate, Sheet, Sublimation, Sheet/Plate/Panel

Packing:

Standard Seaworthy Wooden Pallet

Packaging Details:

Standard export package

Supply Ability:

1000ton /month

Highlight:

Polished Coated Metal Aluminum Plate Sheet

4x8 1100 Aluminum Plate Sheet

200mm Aluminum Plate Sheet

Product Description

1070/1100/1150/1170 Aluminum Plate polished aluminum sheet metal aluminum sheet metal 4x8

1070/1100/1150/1170 aluminum plate is widely used in products with low strength requirements. Products are often used in signs, billboards, building exterior decoration, bus body, tall buildings and factory wall body adornment, kitchen sink, lamp holder, fan blade, electronic parts, chemical equipment, mechanical parts, deep drawing of sheet or spinning concave ware, welding part, heat exchanger, clock surface and plate, plate, kitchenware, ornaments, reflective equipment, etc.

Aluminum is a silver-white light metal, relatively soft, density 2.7g/cm3, melting point 660.4℃, boiling point 2467℃, aluminum and aluminum alloys have many excellent physical properties, has been very widely used. Aluminum has good reflection performance of light, reflecting ultraviolet light is stronger than silver, the purer aluminum is, its reflection ability is better, and the method of vacuum aluminum plating is commonly used to make high-quality mirrors. Vacuum aluminized film combined with polysilicon film becomes a cheap and lightweight solar cell material. Aluminum powder can maintain a silvery luster, often used to make paint, commonly known as silver powder. Pure aluminum conducts electricity very well, second only to silver and copper. In the electric power industry, it can replace part of copper for wires and cables. Aluminum is a good conductor of heat. It can be used to make various heat exchangers, heat dissipating materials and civil cookers in industry. Aluminum has good ductility, can be drawn into a fine wire, rolled into a variety of aluminum products, but also can be made into thinner than 0.01mm aluminum foil, widely used in packaging cigarettes, candy, etc.. Aluminum alloy has some better properties than pure aluminum, which greatly expands the application range of aluminum. For example, pure aluminum is soft, when a certain amount of copper, magnesium, manganese and other metals are added to aluminum, the strength can be greatly improved, almost equivalent to steel, and the density is small, not easy to rust, widely used in aircraft, cars, trains, ships, artificial satellites, rockets manufacturing. At -196 ° C, some steel is as brittle as glass, while some aluminum alloys increase in strength and toughness, making them cheap and lightweight cryogenic materials that can be used to store liquid oxygen and hydrogen for rocket fuel.

Product Details

Item	Aluminum sheet
Standard	GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc
Material	1050,1060,2A14,3003,3103,4032,5454,5754,5056,5082,5086,6061,6060,6082,7075,7475
Size	Thickness	0.5-200mm
	Width	100-2000mm
	Length	2000mm,2440mm,6000mm,or as required.
Quality control	Mill Test Certification is supplied with shipment,Third Part Inspection is acceptable.
Surface	Bright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc
Trade conditions
Trade terms	Price term	Ex-Work,FOB,CNF,CFR,etc
	Payment Term	TT,L/C,western Union,etc
MOQ	500Kg
Delivery time	1.The products in stock will delivery immediately received the payment.
	2.According to the order quantity,prompt delivery.
Package	Standard export package,such as wooden box or as required.
Application	1)Further making utensil.
	2)Solar reflective film
	3)The appearance of the building
	4)Interior decorating:ceilings,walls,etc.
	5)Furniture cabinets
	6)Elevator decoraction
	7)Signs,nameplate,bags making.
	8)Decorated inside and outside the car
	9)Household appliances:refrigerators,microwave ovens,audio equipment,etc.
	10)The consumer electronics:mobile phones,digital cameras,MP3,U disk,etc.
Container size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
	40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM
	40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM

Aluminum Production Process

Polished Coated Aluminum Plate Sheet Metal 4x8 1100 1150 1170 200mm 0

Polished Coated Aluminum Plate Sheet Metal 4x8 1100 1150 1170 200mm 1
Chemical Composition

Alloy	%Si	%Mg	%Mn	%Cu	%Fe	%Cr	%Zn	%Ti	%Others	%Al
EN AW-1050 A	0.25Max	0.05Max	0.05Max	0.05Max	0.40Max	–	0.07Max	0.05Max	–	99.5 Min
EN AW-1070 A	0.20Max	0.03Max	0.03Max	0.03Max	0.25Max	–	0.07Max	0.03Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	Bi : 0.20 – 0.60Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–

Related goods
Alunimun channel
Aluminum plate ,sheet
Aluminum pipe
Aluminum rod

Aluminum ingot

FAQ

Q: Do You Provide Samples ? Is It Free Or Extra ?
A: Yes, We Could Offer The Sample For Free Charge But Do Not Pay The Cost Of Freight.

Q: What Is Your Terms Of Payment ?

A: We Accept Tt, L/c Or You Can Pay E-Checking Through Alibaba.

Q: How Long Is Your Delivery Time?

A: Our Delivery Time Is 10-15 Days After Payment.

Q: If You Test The Polishing Machine Before It Leave Factory?

A: Of Course. All Our Polishing Machine Will Be Tested And Rechecked Before Delivery.

Q: Do You Offer Oem Service?

A:yes, Oem Is Welcome.You can also come to our factory to visit the production and inspection process.
