AISI304 Stainless Steel Wire Coil Rope 7*37 15mm Cold Heading

Name: AISI304 Stainless Steel Wire Coil Rope 7*37 15mm Cold Heading
Brand: WUXI XINFUTIAN METAL PRODUCTS CO., LTD
SKU: AISI304 Stainless Steel Wire
Price: 2,350.00 USD
Availability: InStock

Brand Name:	TISCO,BAOSTEEL
Model Number:	AISI304 Stainless Steel Wire
MOQ:	5 ton
Price:	Negotiation
Supply Ability:	2000 ton

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu

Certification:

ISO,BV

Product Name:

Stainless Steel Spring Wire

Type:

431 Stainless Steel Wire

Dia:

0.1mm-15mm

Special Use:

Cold Heading Steel

Model Number:

200, 300, 400, Series

Grade:

201, 202, 301, 303, 304, 304L, 305, 316, 316L, 321, 410, 416, 420, 430… 1.4301, 1.4306, 1.4845, 1.4401, 1.4371, 1.4597, 1.4541, Etc.

Diameter:

0.05-20mm

Surface:

Bright, Plain, Black, Dull And EPQ Quality

Packaging Details:

Standard Seaworthy package or as the customer's requirement

Supply Ability:

2000 ton

Highlight:

AISI304 Stainless Steel Wire Coil Rope

15mm Stainless Steel Wire Coil Rope

Cold Heading Stainless Steel Wire Coil Rope

Product Description

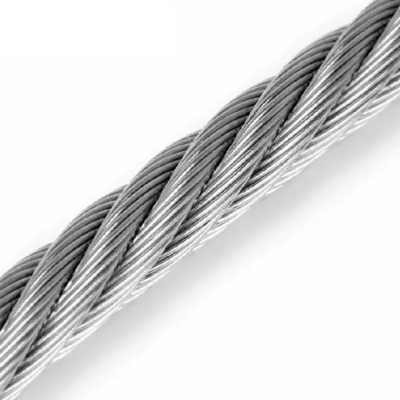

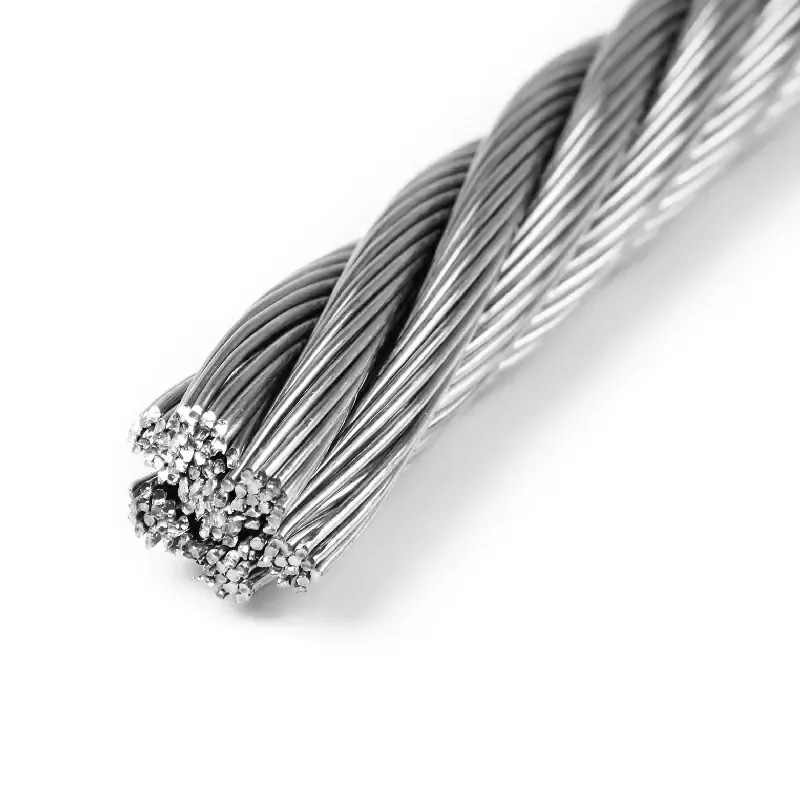

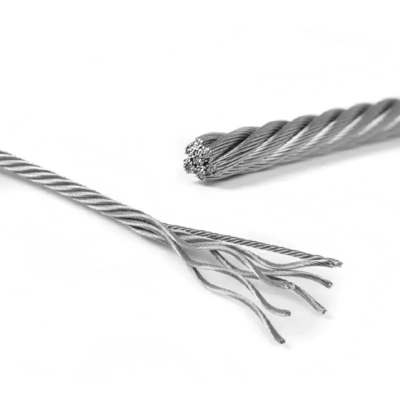

7*37 15mm AISI304 Stainless Steel Wire Rope stainless steel wire coil

Our stainless steel wire is processed free of surface imperfections such as pitting, scratches and seaming etc… Our bright drawn and electro polishing quality (EPQ) wire is drawn with specially manufactured dies to the very highest quality enabling it to be post cleaned / polished easily without shading differences from batch to batch.

The uses of our wire are very wide and include a selection of fastenings and fixings, springs and clamping methods. This material is also used in the manufacture of stainless steel wall ties, welded mesh and exhaust brackets. Wall ties particularly benefit from a stainless steel construction as the constant attack of water experienced by the components is no problem for the metals’ anti-corrosive properties.

Product Description

Meaning: One single strand consisting of 19 single wires. All wires in all strands have the same or similar dia.
Material: AISI304, AISI 316
Construction: 7X19
Dia. Range: 8mm
Spec. EN12385-4 (DIN3053)
Tensile strength: 1570N/mm2~1770N/mm2
Packing: 1000~3000mtrs/reel, wooden reel and pallet, or according to ur requirements
Characteristics: Hard, widely used for yachting
Prodution lead time: 15 days
Payment: T/T, L/C, WU, etc.

Type AISI	C Max %	Mn Max %	P Max	S Max	Si Max	Cr	Ni	Mo
Type AISI	C Max %	Mn Max %	%	%	%	%	%	%
201	0.15	5.50-7.50	0.06	0.03	1	16.000-18.00	0.5	–
202	0.15	7.50-10.00	0.06	0.03	1	17.00-19.00	3.-0-5.00	–
204Cu	0.08	6.5-8.5	0.06	0.03	2	16.0-17.0	1.5-3.0	–
302	0.15	2	0.045	0.03	1	17.00-19.00	8.00-10.00	–
302HQ	0.03	2	0.045	0.02	1	17.00-19.00	9.00-10.00	–
304Cu	0.03	2	0.045	0.02	1	17.00-19.00	9.00-10.00	–
304HC	0.04	0.80-1.70	0.04	0.015	0.3-0.6	18-19	8.5-9.5	–
303	0.07	2	0.045	0.25 Min	1	17-19	8.0-10.0	0.6
304	0.08	2	0.045	0.03	1	18.00-20.00	8.0-10.50	–
304L	0.03	2	0.045	0.03	1	18.00-20.00	8.00-12.00	–
310S	0.055	1.5	0.04	0.005	0.7	25.0-28.0	19-22	–
314	0.25	2	0.045	0.03	1.50-3.00	23.00-26.00	19.00-22.00	–
316	0.06	2	0.045	0.03	1	16.00-18.00	10.00-14.00	2.00-3.00
316L	0.03	2	0.045	0.03	1	16.00-18.00	10.00-14.00	2.00-3.00
316Ti	0.08	2	0.045	0.03	0.75	16.00-18.00	10.00-14.00	2.00-3.00
347	0.08	2	0.045	0.03	1	17.00-19.00	9.00-13.00	–
321	0.06	2	0.045	0.01	.40-.60	17-19.00	9.4-9.6	–
ER308	0.08	2	0.045	0.03	1	17-19	9.5-13.0	–
ER308L	0.025	1.50/2.00	0.025	0.02	0.5	19.0/21.0	9.5/11.0	–
ER309	0.08	1.50/2.50	0.02	0.015	0.5	23.0/25.0	20.0/14.0	–
ER309L	0.025	1.50/2.50	0.02	0.015	0.5	23.0/25.0	12.0/14.0	–
ER316L	0.02	1.50/2.00	0.02	0.02	0.5	18.0/20.0	12.00-14.00	2.00-3.00
430L	0.03	1	0.04	0.03	1	16.00-18.00		–
434	0.08	1	0.04	0.03	1	16.00-18.00	–	0.90-1.40

AISI304 Stainless Steel Wire Coil Rope 7*37 15mm Cold Heading 0

AISI304 Stainless Steel Wire Coil Rope 7*37 15mm Cold Heading 1

Typical applications

Excellent forgeability
Oil industry - Aerospace industry
Mould manufacturing

Features:

Uniform and beautiful surface condition

Excellent coil forming ability

High elasticity and high fatigue resistance

Strong corrosion resistance against exposure to the toughest atmosphere
