| Place of Origin: | Jiangsu |
|---|---|
| Brand Name: | TISCO,BAOSTEEL |
| Certification: | ISO,BV |
| Minimum Order Quantity: | 5 ton |
| Price: | Negotiation |
| Packaging Details: | Standard Seaworthy package or as the customer's requirement |
| Delivery Time: | 5-10 working days |
| Supply Ability: | 2000 ton |
| Model Number: | 200, 300, 400, Series | Product Name: | Stainless Steel Spring Wire |
|---|---|---|---|
| Type: | 431 Stainless Steel Wire | Dia: | 0.1mm-15mm |
| Special Use: | Cold Heading Steel | Grade: | 201, 202, 301, 303, 304, 304L, 305, 316, 316L, 321, 410, 416, 420, 430… 1.4301, 1.4306, 1.4845, 1.4401, 1.4371, 1.4597, 1.4541, Etc. |
| Diameter: | 0.05-20mm | Surface: | Plain |
| Standard: | BS, JIS, GB, ASTM, DIN, AISI | ||
| High Light: | AISI304 Stainless Steel Wire Coil,7X19 Stainless Steel Wire Coil,Stainless Steel Wire Coil Invisible Protective |
||

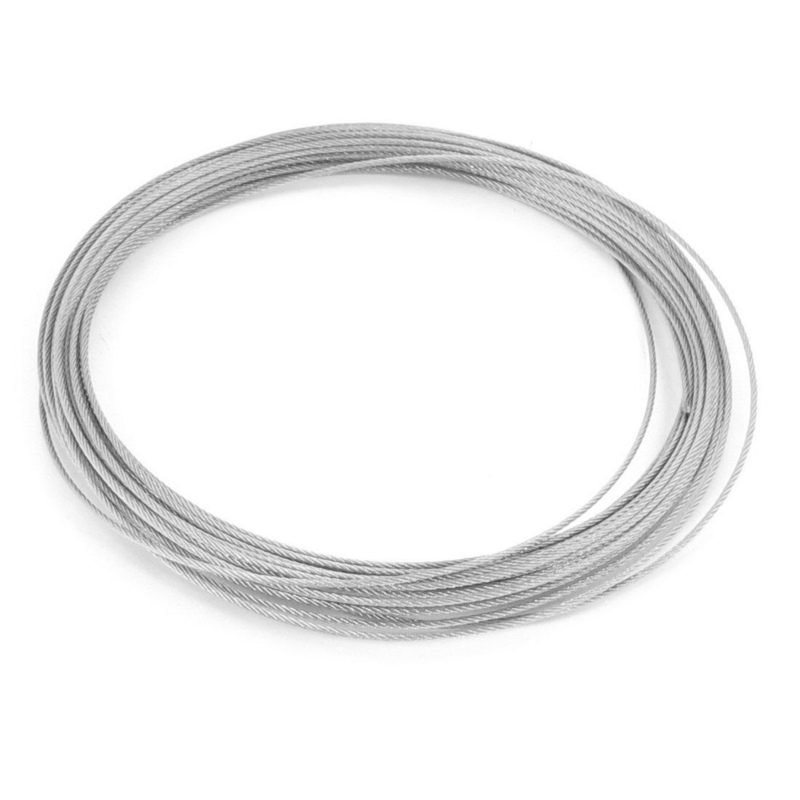

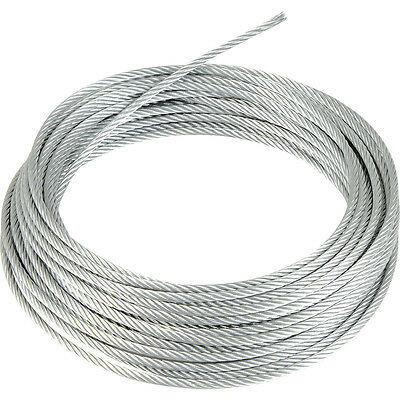

7X19 AISI304 Stainless Steel Wire Rope Invisible Protective Wire Rope

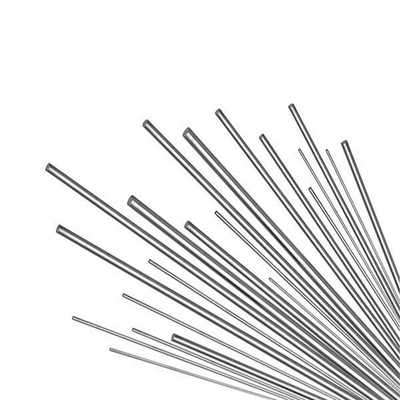

Our stainless steel wire is processed free of surface imperfections such as pitting, scratches and seaming etc… Our bright drawn and electro polishing quality (EPQ) wire is drawn with specially manufactured dies to the very highest quality enabling it to be post cleaned / polished easily without shading differences from batch to batch.
The uses of our wire are very wide and include a selection of fastenings and fixings, springs and clamping methods. This material is also used in the manufacture of stainless steel wall ties, welded mesh and exhaust brackets. Wall ties particularly benefit from a stainless steel construction as the constant attack of water experienced by the components is no problem for the metals’ anti-corrosive properties.
| Delivery Time | 7-25 Days |
| Sample | Free |
| Diameter | 1-26mm |
| Length | 305/610/500/1000m/Reel or as UR Requirment |
| Transport Package | Bulk in Master Cartons, Then on Pallets |
| Specification | 1-26mm |
| Trademark | GS |
| Origin | Zhejiangjiaxing |
| HS Code | 73121000 |
| Production Capacity | 500ton/Week |
| Type AISI | C Max % | Mn Max % | P Max | S Max | Si Max | Cr | Ni | Mo |
| % | % | % | % | % | % | |||
| 201 | 0.15 | 5.50-7.50 | 0.06 | 0.03 | 1 | 16.000-18.00 | 0.5 | – |
| 202 | 0.15 | 7.50-10.00 | 0.06 | 0.03 | 1 | 17.00-19.00 | 3.-0-5.00 | – |
| 204Cu | 0.08 | 6.5-8.5 | 0.06 | 0.03 | 2 | 16.0-17.0 | 1.5-3.0 | – |
| 302 | 0.15 | 2 | 0.045 | 0.03 | 1 | 17.00-19.00 | 8.00-10.00 | – |
| 302HQ | 0.03 | 2 | 0.045 | 0.02 | 1 | 17.00-19.00 | 9.00-10.00 | – |
| 304Cu | ||||||||
| 304HC | 0.04 | 0.80-1.70 | 0.04 | 0.015 | 0.3-0.6 | 18-19 | 8.5-9.5 | – |
| 303 | 0.07 | 2 | 0.045 | 0.25 Min | 1 | 17-19 | 8.0-10.0 | 0.6 |
| 304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.00-20.00 | 8.0-10.50 | – |
| 304L | 0.03 | 2 | 0.045 | 0.03 | 1 | 18.00-20.00 | 8.00-12.00 | – |
| 310S | 0.055 | 1.5 | 0.04 | 0.005 | 0.7 | 25.0-28.0 | 19-22 | – |
| 314 | 0.25 | 2 | 0.045 | 0.03 | 1.50-3.00 | 23.00-26.00 | 19.00-22.00 | – |
| 316 | 0.06 | 2 | 0.045 | 0.03 | 1 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 316L | 0.03 | 2 | 0.045 | 0.03 | 1 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 316Ti | 0.08 | 2 | 0.045 | 0.03 | 0.75 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 347 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.00-19.00 | 9.00-13.00 | – |
| 321 | 0.06 | 2 | 0.045 | 0.01 | .40-.60 | 17-19.00 | 9.4-9.6 | – |
| ER308 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17-19 | 9.5-13.0 | – |
| ER308L | 0.025 | 1.50/2.00 | 0.025 | 0.02 | 0.5 | 19.0/21.0 | 9.5/11.0 | – |
| ER309 | 0.08 | 1.50/2.50 | 0.02 | 0.015 | 0.5 | 23.0/25.0 | 20.0/14.0 | – |
| ER309L | 0.025 | 1.50/2.50 | 0.02 | 0.015 | 0.5 | 23.0/25.0 | 12.0/14.0 | – |
| ER316L | 0.02 | 1.50/2.00 | 0.02 | 0.02 | 0.5 | 18.0/20.0 | 12.00-14.00 | 2.00-3.00 |
| 430L | 0.03 | 1 | 0.04 | 0.03 | 1 | 16.00-18.00 | – | |
| 434 | 0.08 | 1 | 0.04 | 0.03 | 1 | 16.00-18.00 | – | 0.90-1.40 |
1. Material:Stainless Steel.
2. Grade: SS304,SS316,
3. Size: 1-26mm,
4. Steel:Stainless Steel
Mainly Product:
BOLT : DIN933, DIN931, DIN912,DIN603,DIN7985,DIN7991,DIN6921, ASME/ANSI B 18.2.1ASME/ANSIB18.2.3.1M,GB, BSW, ISO Hex bolt , carriage bolt, heavy hex bolt, flange head bolt, achor bolt ect
Nut : DIN934,DIN6923,DIN985,ISO4032 hex heavy hex nut, 2H nut,A563/A563M cap nut, nylon nut, ect
Rod : threaded rod DIN975,DIN976, threaded bar DIN975 stud bolt, B7 stud bolt ect
Screw :DIN912,hex screw; self drilling screw, DIN7504; self tapping screw,DIN7981/7982; drywall screw, pan head screw, button head screw, machine screw, chipboard screw,furniture screw,wood screw, ect
washer :flat washer DIN125, spring washer DIN127, lock washer,square washer,spring lock washer, plain washer ect
Wire Rope products are widely used in ports, electricity, steel, shipbuilding, petrochemical, mining, railway, building, metallurgy, chemical industry, automobile manufacturing, plastics machinery, industrial control, highway, bulk transportation, pipe linings, tunnel, shaft protective slope, salvage, Marine engineering, airport construction, Bridges, aviation, spaceflight, venues and other important industries and infrastructure Process of mechanical equipment and etc.It has excellent anti-rust performance, good quality, good packaging, good service is our customer service three purposes.
