| Place of Origin: | ZHEJIANG |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | ISO |
| Model Number: | 200，300 ，400 Series |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Standard Seaworthy package or as the customer's requirement |
| Delivery Time: | 5-10 working days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 1500 Ton/Month |
| Name: | Shape U Stainless Bar | Process: | Finish Process |
|---|---|---|---|
| Material: | Stainless Steel | Tolerance: | ±1% |
| Technique: | Cold Drawn,cold Rolled,hot Rolled | Special Use: | Valve Steels |
| High Light: | Stainless Steel 304 Channel Decorative Profiles,cold drawn Stainless Steel Decorative Profiles,8.0 g/cc Stainless Steel Decorative Profiles |
||

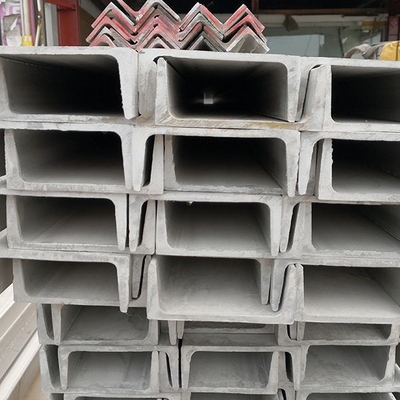

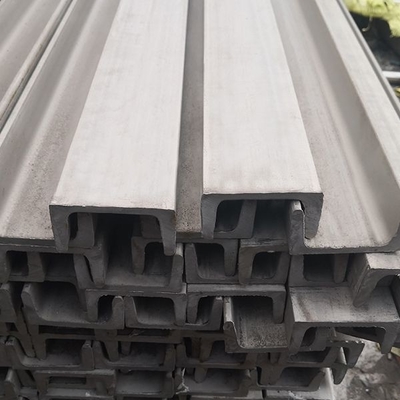

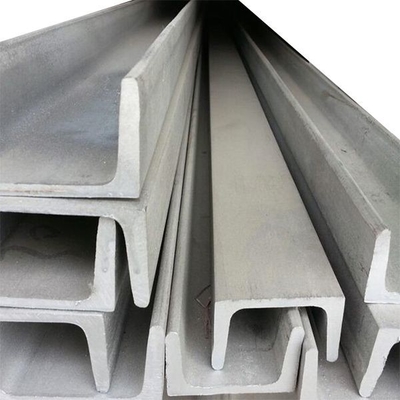

304 STAINLESS STEEL CHANNEL stainless steel decorative profiles
| Element | Percentage |
| C | 0.08 max |
| Fe | 66.34 - 74 |
| Mn | 2 max |
| Ni | 8 - 10.5 |
| P | 0.045 max |
| S | 0.03 max |
| Si | 1 max |
| Cr | 20 |
MECHANICAL INFORMATION
| Imperial | Metric | |
| Density | 0.289 lb/in3 | 8.0 g/cc |
| Ultimate Tensile Strength | 73,200psi | 310 MPa |
| Yield Tensile Strength | 31,200psi | 276 MPa |
| Melting Point | 2,550 - 2,651°F | 1,400 - 1,455°C |
| Temper | Annealed |
| Hardness Rockwell | B70 |
| Hardness Brinell | 123 |
What is stainless steel channel?
The SS 316 C Channel is C shaped and it is the second most material used for stainless steel products. The 316 channels can be used in sea water and high chloride ion rich environment. The 316 Stainless Steel C-channel also has molybdenum in the composition and can be used for food grade applications as well.
Properties: Corrosion resistance makes it an ideal material for chemical, petrochemical, and waste treatment applications. High-temperature resistance makes it ideal for use in cryogenic and high-temperature processing applications. Its surface finish makes it ideal for food, medical, and pharmaceutical manufacturing applications.
Common Uses: raceways, braces, frames to support equipment, machines, tanks, enclosures, and housings.
What kind of stainless steel materials do you provide?
AISI /SUS 201, 202, 204Cu, 304, 304L, 301, 302, 303, 310S, 309S, 316, 316L, 316Ti, 321, 317, 347, 410, 420, 430, 431, 416, 430F, 440C, 2205, 2507, 17-4PH, MONEL400, INCONEL825, INCONEL600, INCONEL601, INCONEL625, C276, INCONEL926, 254 SMO.
We choose Tisco, Baosteel, ZPSS prime quality stainless steel coils, slitting, and cut to lengths,
material grades 1.4301/07, 1.4404, 1.4571 and 1.4305... Stainless steel flat bars slit from strip
| Grade | C | Si | Mn | P | S | Cr | Ni |
| 304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0~20.0 | 8.0~11.0 |
