Type:: | Copper Coil | Application:: | Air Condition Or Refrigerator, Water Tube, Water Heater, Oil Cooler Pipe |
---|---|---|---|
Material:: | Red Copper | Shape:: | Round |
Alloy:: | Non-alloy | Color:: | Red |
Highlight: | C26000 Copper Foil Rolls,Round Copper Strip Foil Rolls,C23000 Copper Foil Rolls |

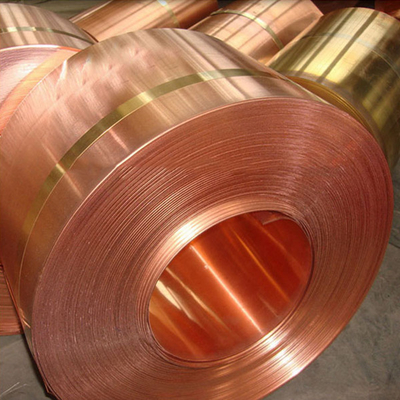

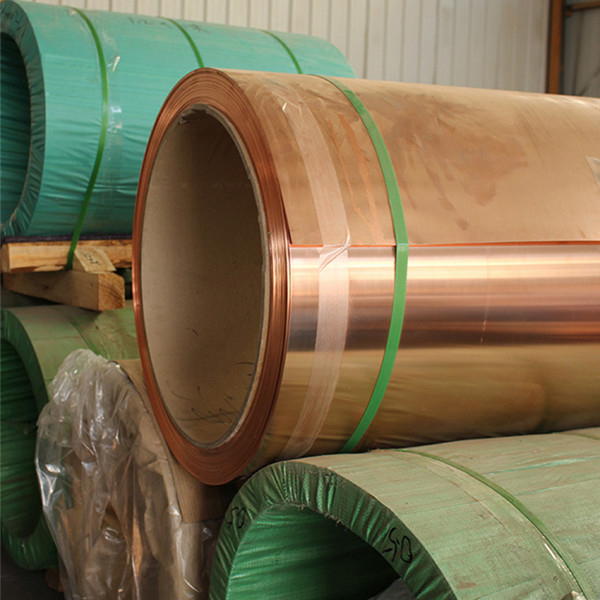

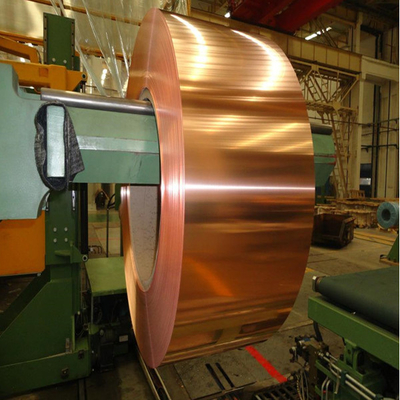

High Quality C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000 Copper Foil Rolls
Material | T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, |
TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300, | |
TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200, | |
C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300, | |
C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000, | |
C71500,C71520,C71640,C72200,etc | |
Hardness | 1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc |
Surface | mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required |
Export to | Singapore,Indonesia,Ukraine,Korea,Thailand,Viet Nam,Saudi Arabia,Brazil,Spain,Canada, |
USA,Egypt,India,Kuwait,Dubai,Oman,Kuwait,Peru,Mexico,Iraq,Russia,Malaysia,etc | |
Application | 1. Pancake Coil for ACR, General Engineering Applications |
2. LWC Coil for ACR, General Engineering Applications | |
3. Straight Copper Tubes for ACR and Refrigeration | |
4. Inner-grooved copper tube for ACR and Refrigeration | |
5. Copper Pipe for Transportation System of water, gas and oil | |
6.PE-coated copper tube for water/gas/oil transportation system | |
7.Semi-finished Copper tube for industrial applications |
Product Features:
It has good electrical conductivity, thermal conductivity, corrosion resistance and processing properties, and can be welded and brazed. It contains less impurities that reduce electrical conductivity and thermal conductivity, and a small amount of oxygen has little effect on electrical conductivity, thermal conductivity and processing properties, but it is easy to cause "hydrogen disease", and it is not suitable for processing (annealing, annealing, welding, etc.) and use.
The company sells new alloy materials used in aerospace, high-speed trains, electronic communications, integrated circuits, construction machinery, shipbuilding, automobile manufacturing and other more than 30 industries, for the modern industry to provide high-quality products operating copper alloy products used in household roofs, commercial roofs, large power plants, to provide green energy for society.
Table 1. chemical composition of Copper Plate/Sheet
Chemical Requirements | ||||||||||
CU+AG (%) | SN (%) | ZN (%) | PB (%) | NI (%) | FE (%) | SB (%) | S (%) | AS (%) | BI (%) | O (%) |
≥99.90 | ≤0.002 | ≤0.005 | ≤0.005 | ≤0.005 | ≤0.005 | ≤0.002 | ≤0.005 | ≤0.002 | ≤0.001 | ≤0.06 |
Alloy | Chemical Composition | |||||||||
QB | JIS /ASTM | Cu | P | O | Other | |||||
T2 | JIS C1100 | 99.9 | 0.015-0.040 | - | balance | |||||
TU | ASTM C10300 | 99.95 | 0.001-0.005 | - | balance | |||||
TP1 | JIS C1220 | 99.9 | 0.004-0.012 | - | balance |
Table 2. Typical mechanical properties for Copper Plate/Sheet
Grade(China) | Grade(Japan) | Temper | Vickers Hardness (HV) | Tensile strength(Mpa) | Elongation(%) |
T2/T3/TP1/TP2 | C11000/C1201 | M | - | ≥290 | ≥40 |
C1220.etc. | Y4 | 75-125 | 325~410 | ≥35 | |
Y2 | 85-145 | 340~460 | ≥25 | ||
Y | 105-175 | 390~530 | ≥13 | ||
T | - | ≥490 | - |
