| Brand Name: | BAOSTEEL , TISCO ,HONGWANG ,LISCO， |
| Model Number: | H62、H65、H68、T1 T2，TU2，TP2、410A |
| MOQ: | 1 ton according to products |
| Supply Ability: | 5000ton/month |

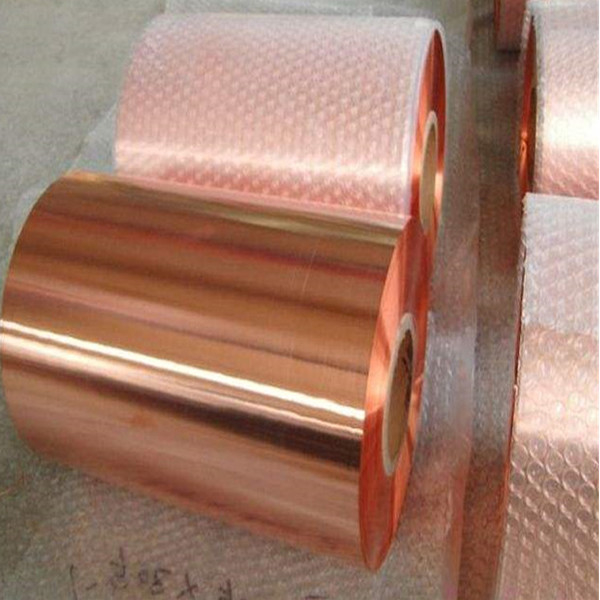

Copper Coil Foil 0.1Mm Copper Foil For Battery C11000 Etp Tu1 Copper Strip Coil Manufacturer
Product Features:
It has good electrical conductivity, thermal conductivity, corrosion resistance and processing properties, and can be welded and brazed. It contains less impurities that reduce electrical conductivity and thermal conductivity, and a small amount of oxygen has little effect on electrical conductivity, thermal conductivity and processing properties, but it is easy to cause "hydrogen disease", and it is not suitable for processing (annealing, annealing, welding, etc.) and use.
The company sells new alloy materials used in aerospace, high-speed trains, electronic communications, integrated circuits, construction machinery, shipbuilding, automobile manufacturing and other more than 30 industries, for the modern industry to provide high-quality products operating copper alloy products used in household roofs, commercial roofs, large power plants, to provide green energy for society.
|
Product Name
|
Copper /Brass Coil/Strip
|
||
|
Material
|
Copper/Brass
|
||
|
Standard
|
ASTM, AISI, JIS, DIN, GB, EN
|
||
|
Grade
|
C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930,
C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200, C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,C26000, C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500,C60800, C63020,C65500,C68700,C70400, C70620,C71000,C71500,C71520,C71640,C72200 T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1, H59,62,H65,H68,H70,H80,H85,H90,H96,C2100,C2200,C2300,C2400,C2600,C2680,C2720, C2800,C3560,C3601,C3713,C3771,C3561,C3710 |
||
|
Shape
|
Flat plate
|
||
|
Temper
|
O-H112; T3-T8; T351-T851
|
||
|
Size
|
thickness 0.1mm~3mm; Width 30-1000mm
|
||
|
Surface
|
Mill finish, polished, anodizing, brushing, sand blasting, powder coating,etc
|
||
|
Payment terms
|
T/T,L/C,western union, Paypal
|
||
|
Price terms
|
CFR,FOB,CIF,Ex-work,CNF
|
||
|
Application
|
1)Further making utensil.
2)Solar reflective film 3)The appearance of the building 4)Interior decorating:ceilings,walls,etc. 5)Furniture cabinets 6)Elevator decoraction 7)Signs,nameplate,bags making. 8)Decorated inside and outside the car 9)Household appliances:refrigerators,microwave ovens,audio equipment,etc. 10)The consumer electronics:mobile phones,digital cameras,MP3,U disk,etc. |
||
|
Package
|
Standard export seaworthy package or as required.
|
||
|
Contact
|
If you have any question,please feel free to contact me.
|
||
Table 1. chemical composition of Copper Plate/Sheet
| Chemical Requirements | ||||||||||
| CU+AG (%) | SN (%) | ZN (%) | PB (%) | NI (%) | FE (%) | SB (%) | S (%) | AS (%) | BI (%) | O (%) |
| ≥99.90 | ≤0.002 | ≤0.005 | ≤0.005 | ≤0.005 | ≤0.005 | ≤0.002 | ≤0.005 | ≤0.002 | ≤0.001 | ≤0.06 |
| Alloy | Chemical Composition | |||||||||
| QB | JIS /ASTM | Cu | P | O | Other | |||||
| T2 | JIS C1100 | 99.9 | 0.015-0.040 | - | balance | |||||
| TU | ASTM C10300 | 99.95 | 0.001-0.005 | - | balance | |||||
| TP1 | JIS C1220 | 99.9 | 0.004-0.012 | - | balance | |||||
Table 2. Typical mechanical properties for Copper Plate/Sheet
| Grade(China) | Grade(Japan) | Temper | Vickers Hardness (HV) | Tensile strength(Mpa) | Elongation(%) |
| T2/T3/TP1/TP2 | C11000/C1201 | M | - | ≥290 | ≥40 |
| C1220.etc. | Y4 | 75-125 | 325~410 | ≥35 | |
| Y2 | 85-145 | 340~460 | ≥25 | ||
| Y | 105-175 | 390~530 | ≥13 | ||
| T | - | ≥490 | - |
