| Place of Origin: | Shanghai ,Shanxi |
|---|---|
| Brand Name: | BAOSTEEL , TISCO ,HONGWANG ,LISCO |
| Certification: | ISO ,SGS,BV |
| Model Number: | 300 Series 316 316Ti |
| Minimum Order Quantity: | 1 ton according to products |
| Price: | Negotiation |
| Packaging Details: | Export Package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 ton/Month |
| Thickness: | 0.3-25mm | Finish: | 2B ,Hairilne,BA,NO6,N0 8 |
|---|---|---|---|
| Width: | 1000mm,1219mm,1250mm,1500mm | Color: | Natural Surface Or As Customized |
| Market: | USA ,the Middle East,South Africa | Length: | 1000,1500,1800mm |
| High Light: | Hairline 316 Stainless Steel Sheet,Grade 316l 316 Stainless Steel Sheet,Customized Surface Finish 316l stainless sheet |
||
Grade: 316
| Product name | Stainless steel plate |
| Material | 201/201/304/304L/316/316L/321/309S/310S/904L or your demands |
| Standard | JIS, AISI, ASTM, GB, DIN, EN |
| Thickness | 0.12mm--3mm or customized |
| Width | 600mm--2000mm or customized |
| Surface Structure | 2B,BA,HL,BK,NO.1,NO.4,8K etc |
| Delivery time | 10-15 days after your deposit, or according the quantity |
| EN-DIN standard steel grade | 1.413,1.4318,1.4307,1.4306,1.4311,1.4301,1.4948,1.4303,1.4541,1.4878,1.4404,1.4435,1.4401 |
| EN-standard steel grade | X10CrNi18-8,X2CrNiN18-7,X2CrNi18-9,X2CrNi19-11,X2CrNin18-10, |
| X5CrNi18-10,X2CrNi18-9,X5CrNi18-10,X6CrNi18-11,X5CrNi18 12,X6CrNi18-11 etc | |
| ASTM/AISI standard steel grade | 301,301LN,304L,304LN,304,304H,305,321,321H,316L,316 etc |
| UNS | S30403,S30453,S30400,S30409,S32100,S32109,S31603,S31600 etc |
| GB-standard steel grade | 00Cr18NI9,06Cr19Ni10(GB/T3280-2007),0Cr18Ni11Ti,00Cr17Ni14Mo etc |
The hairline finish adds an aesthetic element while the 316 stainless steel provides the strong corrosion resistance needed for many industrial and commercial uses. It's a popular choice for applications requiring both function and visual appeal.
| Specification | Grade | Chemical Composition(wt%) | ||||||
| C | Mn | Ni | Cr | Mo | Ti | |||
| ASTMJIS | 316L/022Cr17Ni12Mo2 | ≤0.03 | ≤2.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | - | |
| JIS | SUS310S | ≤0.03 | ≤2.0 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 | - | |
| ASTMJIS | 316Ti/SUS 316Ti | ≤0.08 | ≤2.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | 5*(C+N)-0.7 | |
Properties
| Spec | Grade | Mechanical Property | Physical Property | ||||
|
Y.S (N/MM2) |
T.S (N/MM2) |
EL (%) |
HRB |
Specific Heat (J/g℃) |
Modulus of Elasticity (KN/mm2) | ||
| ASTM/GB | 316L/022Cr17Ni12Mo2 | ≥170 | ≥485 | ≥40 | ≤95 | 0.5 | 193 |
| JIS | SUS316L | ≥175 | ≥480 | ≥40 | ≤90 | 193 | |
| ASTM | 316Ti | ≥205 | ≥515 | ≥40 | ≤95 | 0.5 | 200 |
Package
| MOQ | 1 Ton |
| Price Term | FOB CIF CNF |
| Payment | L/C at sight or 30% TT as deposit |
| Delivery Time | 5-10 days after receiving deposit by T/T or L/C. |
| Sample | Samples free and express charges bear by you |

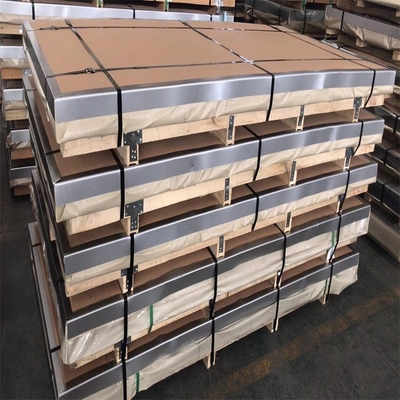

Standard export package with Kraft paper with wooded trays or as required,containers sizes as follows
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS
