| Place of Origin: | Jiangsu |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | ISO |
| Model Number: | 200 Series 201 |
| Minimum Order Quantity: | 1 ton |
| Price: | Negotiation |
| Packaging Details: | Standard Seaworthy package or as the customer's requirement |
| Delivery Time: | 5-10 working days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 1500 ton Per Month |
| Finish: | Plckled White | Use: | Industry |
|---|---|---|---|
| Type: | Equal | Material: | 201 |
| Lenght: | 6m | Application: | Industry |
| High Light: | u channel stainless steel,stainless steel channel |
||

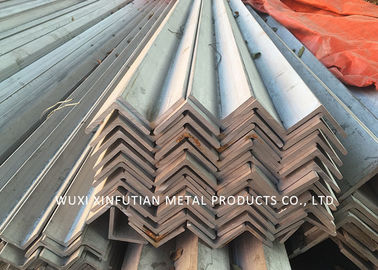

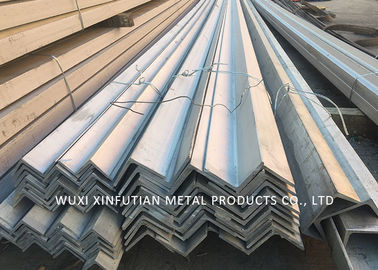

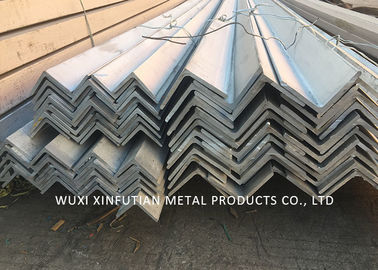

201 Pickled Stainless Steel Angle Bar For Industry Use
AISI 201
UNS S20100
EN 1.4372
Type 201 Stainless Steel is an austenitic chromium-nickel-manganese stainless steel which was developed to conserve nickel. Type 201 is a lower cost alternative to conventional Cr-Ni stainless steels such as 301 and 304. Nickel is replaced by additions of manganese and nitrogen. It is non-hardenable by thermal treatment, but may be cold worked to high tensile strengths. Type 201 is essentially nonmagnetic in the annealed condition and becomes magnetic when cold worked. Type 201 can be substituted for Type 301 in many applications.
| Type | stainless steel angle |
| Length | 6m or as customer's requirement |
| Standard | JIS, AISI, ASTM, GB, DIN, EN ,etc. |
| MOQ | 1 Ton |
| Application | decoration, industry, etc. |
| Certificate | SGS |
| Packaging | Standard exporting packing |
| Trade terms | FOB,CFR,CIF,CNF |
| Delivery time | Within 10 working days after receiving your deposit |
| Payment terms | 1. 30%T/T in advance, the balance against the B/L copy |
| 2. 30%T/T in advance, the balance against L/C original at sight |
Characteristics and application
Stainless steel Angle steel is mainly divided into two categories, equilateral Angle steel stainless steel and unequal stainless steel Angle, which is not an equilateral Angle steel and stainless steel can be divided into unequal thickness and the two kinds of unequal different thickness.
Stainless steel Angle according to the stress of the structure of the different needs of various components, also can make members between the joints. Widely used in various building structure and engineering structure, such as the beam, Bridges, transmission tower, lifting transportation machinery, ships, industrial furnace, reaction tower, container frame and warehouse shelves, etc.
| Grade | Chemical Composition (%) | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 201 | ≤0.15 | ≤1.00 | 5.5~7.5 | ≤0.060 | ≤0.030 | 3.50~5.50 | 16.00~18.00 | |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 6.00~8.00 | 16.00~18.00 | |
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.00 | 17.00~19.00 | |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | ≤0.045 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
201/202/304/321/316 etc Stainless Steel Angle In Stock And Theoretical Weight Table
| Specifications | Thickness(mm) | |||||||
| Amm*Bmm | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| 20*20 | 0.894 | 1.13 | 1.38 | |||||
| 25*25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30*30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35*35 | 1.61 | 2.09 | 2.97 | 3.01 | ||||
| 40*40 | 1.85 | 2.41 | 3.40 | 3.49 | ||||
| 45*45 | 2.12 | 2.76 | 3.79 | 4.00 | ||||
| 50*50 | 2.36 | 3.07 | 4.58 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06. |
| 60*60 | 5.03 | 5.42 | 6.24 | 7.03 | ||||
| 63*63 | 5.42 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70*70 | 5.82 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75*75 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | |||
| 80*80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
Packaging & shipping:
| MOQ | 1 Ton |
| Price Term | FOB |
| Payment | L/C at sight or 30% TT as deposit |
| Delivery Time | 20-30 days after receiving deposit by T/T or L/C. |
| Sample | Samples free and express charges bear by you |
Standard export package with water proof paper, and metal pallet, and angle bar protection, and steel strip or as required
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS
WUXI XINFUTIAN METAL PRODUCTS CO.,LTD is a professional company for Stainless steel products production, processing and sales which has experienced over ten years of development. We are located in WUXI, close to Shanghai (BAO STEEL),Zhangjiagang (ZPSS),Ningbo (BAO XIN),enjoying excellent geographic location and convenient water, land and air transportation.
The company has modern professional metal processing machines of which the 90% are imported from Japan and Germany. Such as Water Jet machine,Cold/Hot Rolled production line,laser cutting machine,hailrine machine which can provide cutting ,slitting ,polished ,OEM and ODM service for our clients.
Our company presist to the spirit of "Integrity,Pragmatic,High quality,First-class”, providing customers with the most satisfactory service .
Our company has a various range of products including stainless steel sheet and coil,pipe,profiles etc. We are the autorized dealers of BAOSTEEL ,BAOXIN,ZPSS,TISCO etc.Our long-term business lines are 201,202,304(1.4301),304L,316,316L(1.4404),430,409L,309S, 310S(1.4845),317L,904L,2205,2507.
