| Place of Origin: | NINGBO CHINA |
|---|---|
| Brand Name: | TISCO, BAOSTEEL, JISCO, ZPSS |
| Certification: | MTC BV SGS ISO |
| Model Number: | 316 316l Stainless Steel Sheet |
| Minimum Order Quantity: | 1 TON |
| Price: | Negotiation |
| Packaging Details: | Standard Seaworthy package or as the customer's requirement |
| Delivery Time: | 7-15 Working days |
| Payment Terms: | T/T L/C at sight |
| Supply Ability: | 1000Ton per Month |
| Material: | 316 Stainless Steel Sheet | Color: | Bright 2B Finshed |
|---|---|---|---|
| Surface: | 2B BA No.4 6k 8k Hairline Embossed Etched, | Size: | 4(1219MM)X8 (2438MM) Or As Request |
| Type: | Sheet,plate | Technology: | Clod Rolled |
| Highlight: | 316 stainless steel plate,316 stainless steel sheet metal |
||

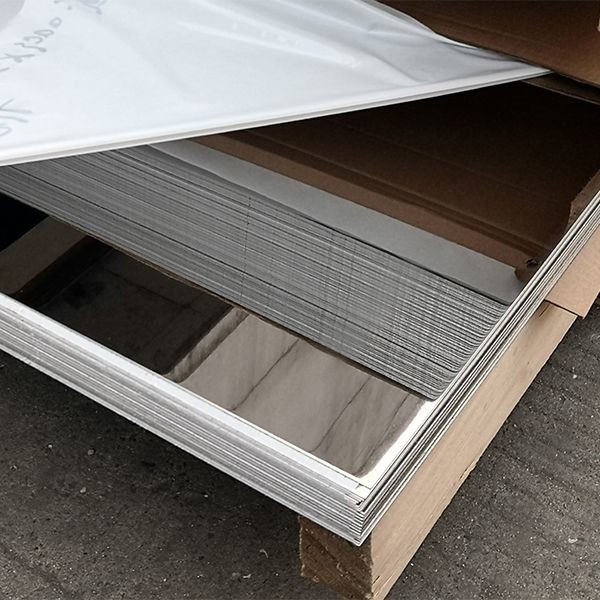

AISI 0.3MM - 3.0MM Thickness Customized BA Finish 4X8 316 Stainless Steel Sheet
1. Products Details
| Product: | AISI 316l stainless steel sheet | |
| Grade: | 304,304L,321,321H,316,316L,317L,310S | |
| Specifications: | Length | 2000-6000mm, or according to customer’s requirement. |
| Width | 32mm-2200mm, or according to customer’s requirement. | |
| Thickness | 0.25-100mm, or according to customer’s requirement. | |
| Standard: | ASTM, GB, JIS, DIN, ASME, etc. | |
| Surface finish: | No. 2B, No. 3, No.4,BA | |
| Application: | construction field, building industry, petroleum & chemical industries, machinary, hardware fields, and so on. | |
| Package detail: | Wraps with kraft paper, steel strip bundled, wooden matting, or as per customers' requirements | |
| Delivery time: | Within 15 days | |
| Payment terms | T/T in advance and the balance by LC | |
| Advantages: | Strong corrosion and decorative effect. | |
| Grade Series | | | Dimension (mm) | Delivery State | ||
| Thickness | Width | Length | ||||
| 022Cr17Ni12Mo2 | GB/T4237-2007 | | | | |
2. Chemical Properties:
| C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 (S31600) | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | min: 16.0 max: 18.0 | min: 2.0 max: 3.0 | min: 10.0 max: 14.0 | 0.10 max |
| 316L (S31603) | 0.03 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | min: 16.0 max: 18.0 | min: 2.0 max: 3.0 | min: 10.0 max: 14.0 | 0.10 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 316 (S31600) | 75 | 30 | 40 | 217 | 95 |
| 316L (S31603) | 70 | 25 | 40 | 217 | 95 |
3. Surface of stainless steel sheet
A. BA thickness :0.5mm~30.0mm
Characteristics:Bright heat treatment after cold rolling
Aplication: Kitchen utensil, kitchen ware,architectural purpose
B. No4 thickness :0.4mm~3.0mm
Characteristics:Polishing with No.150 to No180 mesh abrasives The most popular finishes
Aplication: Milk & Food processing acilities, Hospital Equipment, Bath-tub
C. HL(Hair Line) thickness :0.4mm~3.0mm
Characteristics:Finished by continuous linear polishing
Aplication: Architectural purposes, escalators, kitchen ware vehicles
D. 8K thickness :0.5mm~3.0mm
Characteristics:Shinning like a mirror
Aplication: Building construction
| Surface | Application |
| 2B | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Kitchen utensils, Electric equipment, Building construction. |
| No.1 | Chemical tank, pipe. |
| No.4 | Kitchen utensils, Building construction, Medical equipment. |
| HL | Building Construction. |
4. Sales points and Advantages:
