316 Stainless Steel Sheet
Created with Pixso.

Different Finish Surface 316 Stainless Steel Sheet Corrosion Resistance

Different Finish Surface 316 Stainless Steel Sheet Corrosion Resistance

Brand Name: BAOSTEEL , TISCO ,HONGWANG ,LISCO
Model Number: 300 Series 316l
MOQ: 1 ton according to products
Price: Negotiation
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 ton/Month
Detail Information
Place of Origin:
Shanghai ,Shanxi
Certification:
ISO ,SGS,BV
Thickness:
0.3-25mm
Finish:
2B ,Hairilne,BA,NO6,N0 8
Width:
1000mm,1219mm,1250mm,1500mm
Color:
Natural Surface Or As Customized
Market:
USA ,the Middle East,South Africa
Length:
2500mm.6000mm
Packaging Details:
Export Package
Supply Ability:
2000 ton/Month
Highlight:

316 stainless steel sheet metal

,

316l stainless steel plate

Product Description

Customized 316L  Stainless Steel Sheet 4 ×8 AISI, ASTM, GB Thickness 0.3 - 3.0mm



WUXI XINFUTIAN METAL inventory includes 316/316L (UNS S31600 / S31603), in sheet, sheet coil, plate, plate coil, bar, structural and tubular products. Generally, this grade is dual-certified to meet both 316 and 316L. Alloy 316/316L is ideally suited for applications requiring corrosion resistance superior to Type 304 and has good elevated temperature strength.



Features



316L: A low carbon version of 316 ,excellent to resistance to inter-granular corrosion in more corrosive environment.



316Ti: 316 grade with addition of Ti, excellent formabihty, good impact property of weld bead at  extremely low temperature environment.



Products Details



1. Commodity :300 Series 316l Stainless Steel Plate

2. Grade:301,302,304,304L,316,316L,310S,309S,321,301,310

3. Brand:TISCO ,BAOSTEEL,POSCO,JISCO,LISCO

4. Certifacate :SGS,BV,IQI,TUV,ISO,etc

5. Thickness:0.3mm-25mm

6. Width:1000,1219,1250,1500mm, or as your requirements

7. Standard:ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc


Chemical Composition and Properties



 Chemical Composition



Specification Grade Chemical Composition(wt%)
C Mn Ni Cr Mo Ti
ASTMJIS 316L/022Cr17Ni12Mo2 ≤0.03 ≤2.0 10.0-14.0 16.0-18.0 2.0-3.0 -
JIS SUS316L ≤0.03 ≤2.0 12.0-15.0 16.0-18.0 2.0-3.0 -
ASTMJIS 316Ti/SUS 316Ti ≤0.08 ≤2.0 10.0-14.0 16.0-18.0 2.0-3.0 5*(C+N)-0.7



 Properties



Spec Grade Mechanical Property Physical Property

Y.S

(N/MM2)

T.S

(N/MM2)

EL

(%)

HRB

Specific Heat

(J/g℃)

Modulus of Elasticity (KN/mm2)
ASTM/GB 316L/022Cr17Ni12Mo2 ≥170 ≥485 ≥40 ≤95 0.5 193
JIS SUS316L ≥175 ≥480 ≥40 ≤90 193
ASTM 316Ti ≥205 ≥515 ≥40 ≤95 0.5 200

Applications:

316L: Widely used in corrosion-susceptible environment and some mechanical components those are difficult to make heat treatment after forming in more corrosive environment.



316Ti: Mainly used for industrial components.



Package



MOQ 1 Ton
Price Term FOB CIF CNF
Payment L/C at sight or 30% TT as deposit
Delivery Time 5-10 days after receiving deposit by T/T or L/C.
Sample Samples free and express charges bear by you

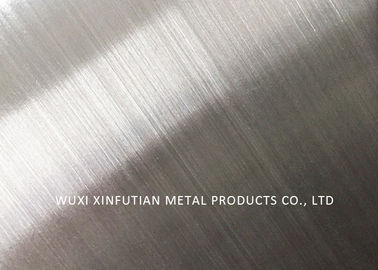

Different Finish Surface 316 Stainless Steel Sheet Corrosion Resistance 0

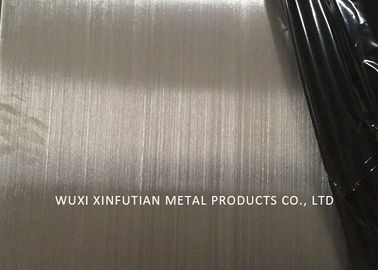

Different Finish Surface 316 Stainless Steel Sheet Corrosion Resistance 1

Standard export package with Kraft  paper with wooded trays or as required,containers sizes as follows



20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS

40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS

40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS
