| Place of Origin: | Shanghai ,Shanxi |
|---|---|
| Brand Name: | BAOSTEEL , TISCO ,HONGWANG ,LISCO |
| Certification: | ISO ,SGS,BV |
| Model Number: | 300 Series 316L 316 |
| Minimum Order Quantity: | 1 ton according to products |
| Price: | Negotiation |
| Packaging Details: | Export Package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000ton/Month |
| Thickness: | 0.3-25mm | Finish: | 2B ,Hairilne,BA,NO6,N0 8 |
|---|---|---|---|
| Width: | 1000mm,1219mm,1250mm,1500mm | Color: | Natural Surface Or As Customized |
| Market: | USA ,the Middle East,South Africa | Length: | 2500mm.6000mm |
| High Light: | 316 stainless steel sheet metal,316l stainless steel plate |
||

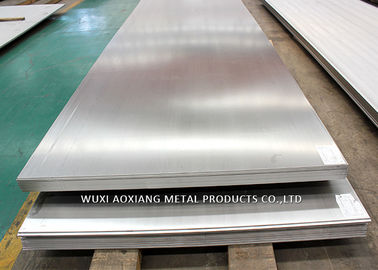

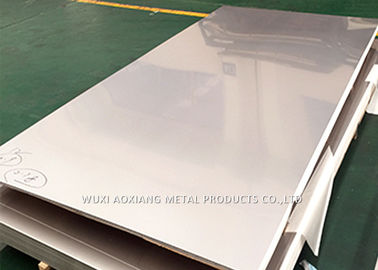

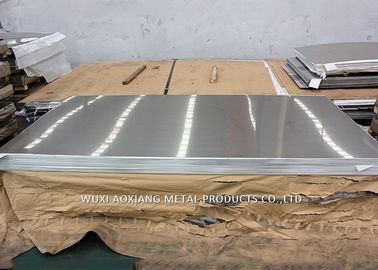

AISI 316 Stainless Steel Sheet TISCO BAOSTEEL Plate Building Materials
WUXI XINFUTIAN METAL inventory includes 316/316L (UNS S31600 / S31603), in sheet, sheet coil, plate, plate coil, bar, structural and tubular products. Generally, this grade is dual-certified to meet both 316 and 316L. Alloy 316/316L is ideally suited for applications requiring corrosion resistance superior to Type 304 and has good elevated temperature strength.
Features
316L:A low carbon version of 316 ,excellent to resistance to inter-granular
corrosion in more corrosive environment.
316Ti: 316 grade with addition of Ti, excellent formabihty, good impact property of weld bead at extremely low temperature environment.
Products Details
| Commodity | 300 Series 316l Stainless Steel Plate |
| Grade | 301,302,304,304L,316,316L,310S,309S,321,301,310 |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness | 0.3mm-25mm |
| Width | 1000,1219,1250,1500mm, or as your requirements |
| Length | 2000,2438,2500,3000,6000mm, or as your requirements |
| Surface | No.1, 2B, BA, 8K Mirror, Hairline,satin, Embossed,brush,No.4,HL,matt,pvc film,laser film. |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
| Delivery | 5-7 days after confirming the order |
| MOQ | 1 Ton |
Chemical Composition and Properties
Chemical Composition
| Specification | Grade | Chemical Composition(wt%) | ||||||
| C | Mn | Ni | Cr | Mo | Ti | |||
| ASTMJIS | 316L/022Cr17Ni12Mo2 | ≤0.03 | ≤2.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | - | |
| JIS | SUS316L | ≤0.03 | ≤2.0 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 | - | |
| ASTMJIS | 316Ti/SUS 316Ti | ≤0.08 | ≤2.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | 5*(C+N)-0.7 | |
Properties
| Spec | Grade | Mechanical Property | Physical Property | ||||
|
Y.S (N/MM2) |
T.S (N/MM2) |
EL (%) |
HRB |
Specific Heat (J/g℃) |
Modulus of Elasticity (KN/mm2) | ||
| ASTM/GB | 316L/022Cr17Ni12Mo2 | ≥170 | ≥485 | ≥40 | ≤95 | 0.5 | 193 |
| JIS | SUS316L | ≥175 | ≥480 | ≥40 | ≤90 | 193 | |
| ASTM | 316Ti | ≥205 | ≥515 | ≥40 | ≤95 | 0.5 | 200 |
316L: Widely used in corrosion-susceptible environment and some mechanical components those are difficult to make heat treatment after forming in more corrosive environment.
316Ti: Mainly used for industrial components.
Package
| MOQ | 1 Ton |
| Price Term | FOB CIF CNF |
| Payment | L/C at sight or 30% TT as deposit |
| Delivery Time | 5-10 days after receiving deposit by T/T or L/C. |
| Sample | Samples free and express charges bear by you |
Standard export package with Kraft paper with wooded trays or as required,containers sizes as follows
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS
