| Place of Origin: | Shanghai ,Shanxi |
|---|---|
| Brand Name: | BAOSTEEL , TISCO ,HONGWANG ,LISCO， |
| Certification: | ISO ,SGS,BV |
| Model Number: | 400 Series 430 |
| Minimum Order Quantity: | 1 ton according to products |
| Price: | Negotiation |
| Packaging Details: | Export Package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 T/Month |
| Thickness: | 0.3-6mm | Finish: | NO 1,2B ,BA |
|---|---|---|---|
| Width: | 6-600mm | Color: | Natural Surface Or As Customized |
| Standard: | JIS/ASTM/BN | Shape: | Plate |
| High Light: | polished stainless steel strips,stainless steel strip roll |
||

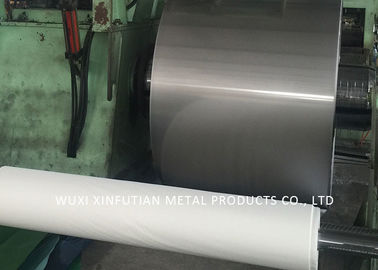

430 BA 2B Cold Rolling Ferrite Stainless Steel Strip Coil Width 5 - 500mm Customized
Products Details
| Grade | Ferrite 430 stainless steel strip |
| Thinckness | 0.3-6.0mm |
| Tolerance | +/-0.02mm |
| Widthness | 5mm-500mm |
| Length | as coils |
| Brand name | TISCO,L;ISCO,BAOSTEEL |
| Standard | JIS, AISI, ASTM, GB, DIN, EN ,etc. |
| Finish | 2B, NO1,Hairline, No.4, BA, 8K mirror, etc. |
| Certification | SGS |
| Packaging | Standard exporting packing; seaworthy package. |
| MOQ | 1 Tons |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 430 |
min. max. |
- 0.12 |
- 1.00 |
- 1.00 |
- 0.040 |
- 0.030 |
16.0 18.0 |
- |
- 0.75 |
- |
Mechanical Properties:
|
Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness |
|
|---|---|---|---|---|---|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
| 430 | 450 | 205 | 22 | 89 | 183 |
Physical Properties:
|
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion |
Thermal Conductivity |
Specific Heat 0-100°C (J/kg.K) |
Electrical Resistivity (nW.m) |
|||
|---|---|---|---|---|---|---|---|---|---|
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 430 | 7750 | 200 | 10.4 | 11.0 | 11.4 | 23.9 | 26.0 | 460 | 600 |
Applications
The higher alloyed stainless steels generally have excellent strength at elevated temperatures along with outstanding resistance to creep deformation and environmental attack. Therefore, Alloy 310 is used widely in industries such as heat treatment and chemical processing. Some examples include:
Furnace Parts
Oil Burner Parts
Heat Exchangers
Welding Filler Wire and Electrodes
Annealing Covers
Combustion Tubes
Fire Box Sheets
