Polished Finish Stainless Steel Welded Tube TP316L For Building Materiel

Place of Origin WUXI,WENZHOU
Brand Name AOXIANG
Certification BV,SGS
Model Number 316L
Minimum Order Quantity 2 ton
Price Negotiation
Packaging Details Plastic bags
Delivery Time 5-10 working days
Payment Terms D/A, L/C, T/T
Supply Ability 1500ton/Month
Product Details
Technolgy Welded Thickness 0.4-8.0mm
Dimension 7-150mm Length 6m Or As Customized
Grade 316L Finish Polished Finish
High Light

welded stainless steel pipe

,

stainless steel rectangular tubing

Leave a Message
Product Description

TP316L Welded 70 ×70mm Stainless steel Square Pipe Polished Finish



We are backed up with our team of experienced professionals which is fully dedicated to offer the best quality range of Stainless Steel Square Pipe. The offered pipe is widely demanded in various industries such as marine, pharmaceutical, chemical etc. This pipe is manufactured using top quality stainless steel at our production unit with the use of state-of-the-art techniques under the observation of our skilled engineers. In addition, our valued clients can avail this Stainless Steel Square Pipe in various dimensions at nominal prices from us.



Features:



TECHNIQUE:Cold Rolled Stainless Steel

STANDARDS: AISI,ASTM,DIN,JIS,GB,EN

GRADE :201, 202, 304, 304L, 316, 316L,409, 430…

SPECIFICATION:

1) Square tube: 10x10mm to 150x150mm

2) Rectangular tube: 10x20mm to 120x180mm

2.Thickness: 0.16mm to 6.0mm

3. Width (coil):10-200mm

4.Lenght:6000mm or Customer requirements

------------------------------------------------------------------------------------

SURFACE: 180G, 320G, 400G, 500G, 600G, Satin, hairline, 2B,BA, mirror,8K…

-------------------------------------------------------------------------------------

PACKAGE: Standard Export Packing or according to customer’s requests



Chemical Composition











Chemical Composition of Material



Material





Composition

201 202 304 316L 430
C ≤0.15 ≤0.15 ≤0.08 ≤0.035 ≤0.12
Si ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00
Mn 5.5-7.5 7.5-10 ≤2.00 ≤2.00 ≤1.00
P ≤0.06 ≤0.06 ≤0.045 ≤0.045 ≤0.040
S ≤0.03 ≤0.03 ≤0.030 ≤0.030 ≤0.030
Cr 13-15 14-17 18-20 16-18 16-18
Ni 0.7-1.1 3.5-4.5 8-10.5 10-14
Mo       2.0-3.0



Mechanical Property

Material Item 201 202 304 316
Tensile Strength ≥535 ≥520 ≥520 ≥520
Yield Strength ≥245 ≥205 ≥205 ≥205
Extension ≥30% ≥30% ≥35% ≥35%
Hardness (HV) <105 <100 <90

<90





Other Stainless Steel Pipes Varieties



Stainless steel drums: They are very useful for storing explosive materials as they have non-corrosive features. They are the best sources to transport hazardous materials as it is flawless and is very efficient in storing flammable liquids also.

Stainless steel pipe fittings: They are widely used in automobile industries and the steel pipe fittings along with a combination of carbon are highly durable. They are designed in various sizes and shapes and are used to connect pipes of diverse proportions.

Stainless steel stove pipe: These metal pipes are regarded as chimney pipes. They are insulated and serve the purpose of releasing the by-products of ignition from the house.

Stainless steel exhaust pipe: The exhaust pipes are used in cars to boost their performance level and also to improve its on the whole outer shell.



Weld Pipe Progress

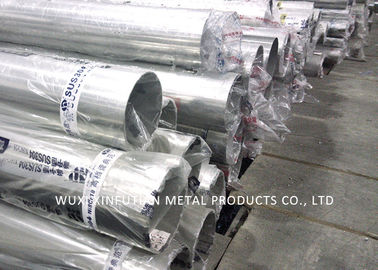

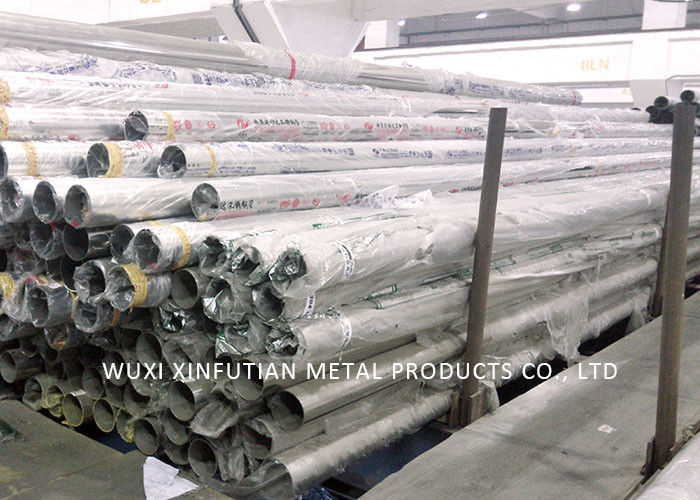

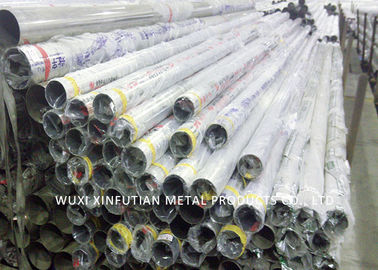

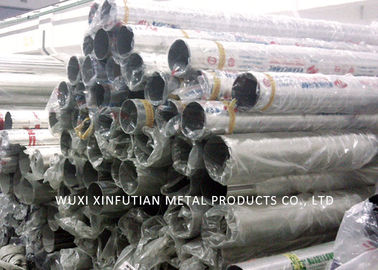

Polished Finish Stainless Steel Welded Tube TP316L For Building Materiel 0



Polished Finish Stainless Steel Welded Tube TP316L For Building Materiel 1
