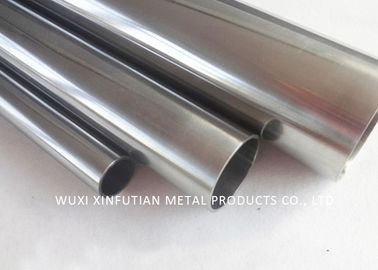

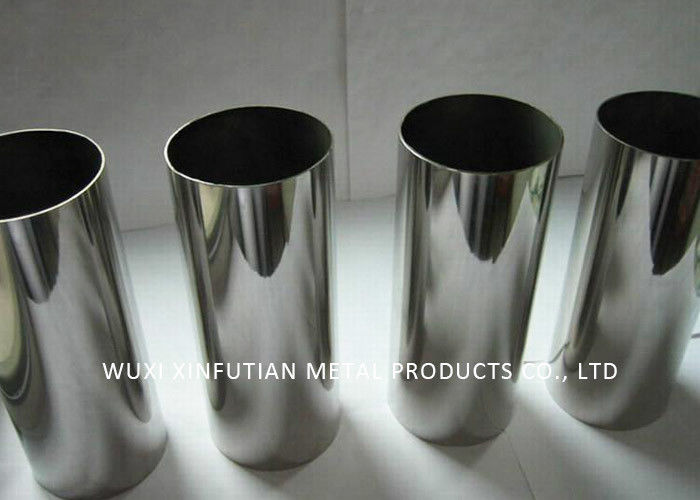

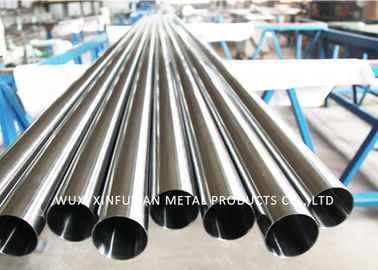

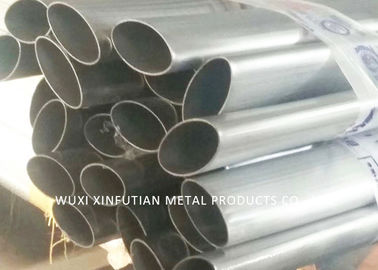

304 316L 316 Stainless Steel Welded Tube HL Brushed For Sanitary Application

  • 304 316L 316 Stainless Steel Welded Tube HL Brushed For Sanitary Application
  • 304 316L 316 Stainless Steel Welded Tube HL Brushed For Sanitary Application
  • 304 316L 316 Stainless Steel Welded Tube HL Brushed For Sanitary Application
  • 304 316L 316 Stainless Steel Welded Tube HL Brushed For Sanitary Application
Place of Origin WUXI,WENZHOU
Brand Name XINFUTIAN
Certification BV,SGS
Model Number 304 316L
Minimum Order Quantity 2 ton
Price Negotiation
Packaging Details Plastic bags
Delivery Time 5-10 working days
Payment Terms D/A, L/C, T/T
Supply Ability 1500ton/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Technolgy Welded Thickness 0.16-3.0mm
OD 8-140mm Length 6m Or As Customized
Grade 304 316l Finish Bright
High Light

welded stainless steel pipe

,

stainless steel rectangular tubing
Leave a Message
Product Description

Welded Stainless Steel Pipe Sanitary Application 304 316L 316



Material

304:0cr18ni9, 0cr17ni8

201:1cr17mn6ni5n,1cr13mn9ni1n

316:0cr17ni12 or as customer’s request
Size(round pipe)

9.5, 12.7, 15.9, 17, 18, 19.1, 20, 21, 22.2, 23, 25.4, 28, 318, 35, 60, 63.5, 73, 76.2, 88.9, 101.6,

114.3, 127, 133, 159, 168, 219 mm or customized
Size (square pipe)

10×10,12×12,18×18,23×23,38×38,50×50,70×70,100×100,20×10,23×10,24×12,25×13,36×23,

40×20,50×20,60×15,75×45,80×60,95×45,100×60,150×100 mm or customized
Size (oval pipe) 30×15,80×40 mm or customized
Thickness 0.24-3 mm
Length 6m or according to customer’s request
Outer diameter 6.35-219mm
Tolerance Outer diameter :±0.2mm
Thickness :±0.02mm
Length :±0.5mm
Process method Code drawn, annealed with nitrogen protection, ultrasonic,automatic shape, polished
Finishing

A: sanded B: 400#-600# mirror C: hairline brushed D: TIN titanlum

E : HL brushed & mirror (two kinds of finishing for one pipe)



Chemical Composition
Material C Si Mn P S Cr Ni
201 ≤0.12 ≤0.75 9.5-12.5 ≤0.045 ≤0.03 13-16 0.8-1.5
304 ≤0.08 ≤0.75 ≤2.0 ≤0.045 ≤0.03 18-19 8-10
316 ≤0.08 ≤1.00 ≤2.0 ≤0.035 ≤0.03 10-14 16.0-18.5
430 ≤0.12 ≤0.75 ≤2.0 ≤0.04 ≤0.03 16-18 ≤0.6



























Package



Packing: with bundles, seaworthy packing for sea transportation ( big order in bulk; small order packed by strips or as the customers' requirement); wooden pallet or iron pallet is prerequisite for stainless products;

In terms of stainless products, we will use wooden pallet or iron pallet which has the polyethylene partition to isolate products which could protect the moisture.



Delivery: 7-15days after receiving unfront payment.



Application



Stainless steel pipe is an economical section steel, is an important product in the steel industry, can be widely used in life decoration and industry, many people on the market for the production of staircase handrails, window protection, railings, furniture and so on. Common are 201 and 304 two kinds of materials.



304 316L 316 Stainless Steel Welded Tube HL Brushed For Sanitary Application 0

304 316L 316 Stainless Steel Welded Tube HL Brushed For Sanitary Application 1

RFQ



Q:What are your company's main products?

A: Our main products are Carbon Steel Coil/Sheet,Galvanized Steel Coil/Sheet,Stainless Steel Coil/Sheet, round/square pipe, bar, channel, etc.



Q: How do you control quality?

A: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q:What are the advantages of your company?

A: We have many professionals, technical personnel, more competitive prices and best after-dales service than other steel companies.



Q: How to get samples?

A:FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
