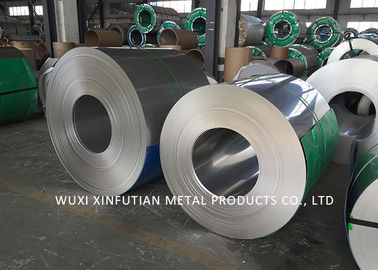

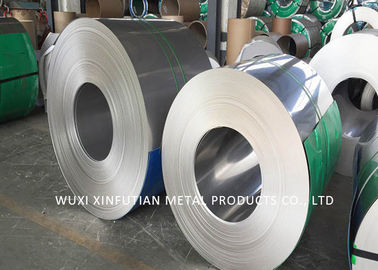

316 Stainless Steel Coil / Stainless Steel Strip Coil For Building Material

Brand Name:	BAOSTEEL , TISCO ,HONGWANG ,LISCO
Model Number:	300 Series 316
MOQ:	1 ton according to products
Price:	Negotiation
Payment Terms:	L/C, T/T, D/P, Western Union
Supply Ability:	2000 ton/Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai ,Shanxi

Certification:

ISO ,SGS,BV

Thickness:

0.3-25mm

Finish:

2B ,Hairilne,BA,NO6,N0 8

Width:

1000,1500,1220mm

Color:

Natural Surface Or As Customized

Market:

USA ,the Middle East,South Africa

Length:

As Customized

Packaging Details:

Export Package

Supply Ability:

2000 ton/Month

Highlight:

stainless steel sheet roll

cold rolled steel sheet in coil

Product Description

316 Various Thickness Stainless Steel Coil DIN 1.4401 BA For Building Material

WUXI XINFUTIAN METAL inventory includes 316/316L (UNS S31600 / S31603), in sheet, sheet coil, plate, plate coil, bar, structural and tubular products. Generally, this grade is dual-certified to meet both 316 and 316L. Alloy 316/316L is ideally suited for applications requiring corrosion resistance superior to Type 304 and has good elevated temperature strength.

1. Products Details

Commodity	300 Series 316 Stainless Steel Strip
Grade	301,302,304,304L,316,316L,310S,309S,321,301,310
Brand	TISCO ,BAOSTEEL,POSCO,JISCO,LISCO
Certification	SGS,BV,IQI,TUV,ISO,etc
Thickness	0.3mm-25mm
Width	1000,1219,1250,1500mm, or as your requirements
Length	2000,2438,2500,3000,6000mm, or as your requirements

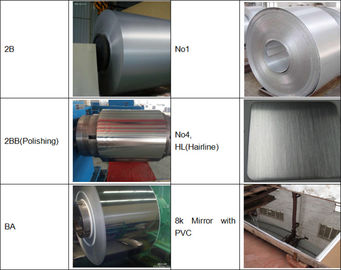

Surface	No.1, 2B, BA, 8K Mirror, Hairline,satin, Embossed,brush,No.4,HL,matt,pvc film,laser film.
Standard	ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc
Delivery	5-7 days after confirming the order
MOQ	1 Ton

2. Chemical Properties:

	C	Mn	Si	P	S	Cr	Mo	Ni	N
316 (S31600)	0.08 max	2.0 max	0.75 max	0.045 max	0.03 max	min: 16.0 max: 18.0	min: 2.0 max: 3.0	min: 10.0 max: 14.0	0.10 max
316L (S31603)	0.03 max	2.0 max	0.75 max	0.045 max	0.03 max	min: 16.0 max: 18.0	min: 2.0 max: 3.0	min: 10.0 max: 14.0	0.10 max

Mechanical Properties:

Grade	Tensile Strength ksi (min)	Yield Strength 0.2% ksi (min)	Elongation %	Hardness (Brinell) MAX	Hardness (Rockwell B) MAX
316 (S31600)	75	30	40	217	95
316L (S31603)	70	25	40	217	95

316 standards

CHINA:06Cr17Ni12Mo2

ASTM/ASME: UNS S31600

AFNOR: Z 6 CND 17-11
DIN: 1.4401

3. Resistance

Corrosion Resistance:

1) Generally more resistant than 304 in range of atmospheric environments and many corrosive media due to the increased chromium and molybdenum content.
2) Subject to pitting and crevice corrosion in warm chloride environments, and to stress corrosion cracking above about 122°F (50°C).
3) Considered resistant to potable water with up to about 1000mg/L chlorides at ambient temperatures, reducing to about 500mg/L at 140°F (60°C).
4) Usually regarded as the “marine grade stainless steel” – but is not resistant to warm sea water.

Heat Resistance:

1) Good oxidation resistance in intermittent service to 1600°F (870°C) and in continuous service to 1700°F (925°C)
2) Grade 316L is more resistant to carbide precipitation.

4. Applications:

Food preparation equipment, especially in chloride environments
Chemical processing, equipment
Laboratory benches and equipment
Rubber, plastics, pulp & paper machinery
Pollution control equipment
Boat fittings, value and pump trim
Heat exchangers
Pharmaceutical and textile industries
Condensers, evaporators and tanks
