304L Stainless Steel Pipe Elbows / Stainless Steel Flanged Fittings Customized

Place of Origin Zhejiang, China
Brand Name XINFUTIAN
Certification BV,TUV,DNV,SGS,CE,LR.
Model Number 316, 304, 316L
Minimum Order Quantity 10 PCS
Price Negotiation
Packaging Details Wooden Cartons and Plastic Bag of each good.
Delivery Time 5-10 working days
Payment Terms T/T, L/C, Western Union
Supply Ability 1000 PCS / Months
Product Details
Technics Forged Type Elbow / Reducer / Tee / Bend
Model Number 316,304,316L Connection Welding
Head Code Round Surface Pickling And Polishing
Quality Prime
High Light

flange stainless steel pipe fittings

,

stainless steel elbow fitting

Leave a Message
Product Description

6 Inch Welded Stainless Steel Pipe Fittings, Elbow, Tee, Reducer





Stainless Steel Elbow



Standard ASME SA403,BS16.9,GB12459,EN,DIN,JIS
Material 304,304L,310S,309S,316,316L,317,317L,321201, 202, etc.
Sizes 1/2''~50''(DN10~DN1200)
Wall Thickness Sch5X~SchXXS
Bend Degree 45°,90°,180°
Type Elbow, reducer, cross, pipe holder, manhole cover, stub,clamp,union ,valve etc



Stainless Steel Flange



Standards

ASTMA182,ANSI B16.9, ANSI B16.28, EN10253-2, EN1092-1,JIS B2313,

DIN2605,

Stainless Steel 304, 304L, 310S, 309S, 316, 316L, 317, 317L, 321, 201,etc.
Carton Steel ST35, RST37, S235JR, Q235, SS400
Sizes 1/2" to 60" (DN8 to DN1500)

Pressure

Class

150LB, 300LB, 400LB, 600LB, 900LB,1500LB, etc.
Type

Plate type Flat Welding Flange,Slip on Neck Flange,Welding Neck Flange,

Blind Flange,Socket Welding Flange,Thread Flange,Screwed Flange,Lap Joint

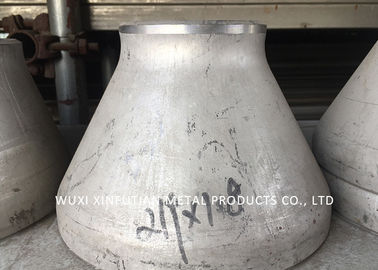

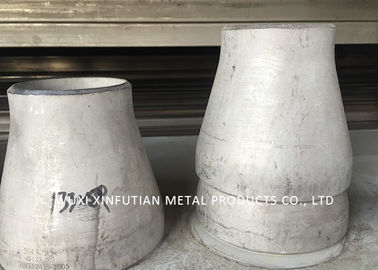

Stainless Steel Reducer



Standard DIN 2527,2573,2576,2642,2633,JIS B2311,ASME 16.9
Material 304, 304L, 310S, 309S, 316, 316L, 317, 317L, 321201, 202,
Technique Forged
Size DN15~DN1200 (1/2''~48'')
Thickness SCH5~XXS



1. Size: Seamless: from 1/2" to 24"

Welded: from 24" to 96"( or as customer requirements)

2. Wall Thickness: Sch5~Sch160, XS, XXS

3. Standard: ASME B16.9, ASME B16.25, MSS SP-75 DIN2615 JISB2311 JISB2312 JISB2313

4. Materials: 304/304L ,304H,316/316L, 316H,321,321H,347,347H, 310S(2520), 31254, 32750, 2205, Copper alloy, Titanium alloy

5. Packing: in wooded cases or pallets,or as for clients'requirements

6. Application: Petroleum, chemical, machinery, electric power, shipbuilding,
papermaking, construction, etc



Our major products



seamless or welded Tees, Crosses, LR & SR Elbows (180°, 90°, 45°), Reducers (Concentric or Eccentric), Stub Ends, End Caps, Socket & Threaded Couplings in material of stainless steel, carbon steel, alloy steel and other special steels. Size is from 1/2"(DN15) to 100’’(DN2500), the wall thickness is up to 100mm.



304L Stainless Steel Pipe Elbows / Stainless Steel Flanged Fittings Customized 0

304L Stainless Steel Pipe Elbows / Stainless Steel Flanged Fittings Customized 1304L Stainless Steel Pipe Elbows / Stainless Steel Flanged Fittings Customized 2

Frequently Asked Questions:



1. Are you a trading company or factory?

-------- Answer: We are factory.

2. What size of the biggest pipe you can bend?

-------- Answer: 6 inches, equals 152mm.
3. What's the lead time for sample and for mass production?

-------- Answer: For regular items, sample lead time is about 21 days, and 30 days for mass production.

4. What's the MOQ?

-------- Answer: Different products will be with different MOQ. For simple products like small mandrel elbows, 50 pieces. For complex machine welding frames, we can accepte smaller MOQ like 10 sets.

5. Which countries do you export to?

-------- Answer: Generally we can export to any countries on earth. Currently our main markets are among North America, Europe and Australia.
