304 / 304L Stainless Steel Pipe Fittings Butt Welded Customized Size Sample Free

Place of Origin Zhejiang, China
Brand Name XINFUTIAN
Certification BV,TUV,DNV,SGS,CE,LR.
Model Number 316, 304, 316L
Minimum Order Quantity 10 PCS
Price Negotiation
Packaging Details Wooden Cartons and Plastic Bag of each good.
Delivery Time 5-10 working days
Payment Terms T/T, L/C, Western Union
Supply Ability 1000 PCS / Months
Product Details
Technics Forged Type Elbow / Reducer / Tee / Bend
Model Number 316,304,316L Connection Welding
Head Code Round Surface Pickling And Polishing
Quality Prime
High Light

stainless steel tube weld fittings

,

flange stainless steel pipe fittings

Leave a Message
Product Description

Stainless Steel Pipe Butt Welded Fittings In Stock Or As Customized



1. Size: Seamless: from 1/2" to 24"

Welded: from 24" to 96"( or as customer requirements)

2. Wall Thickness: Sch5~Sch160, XS, XXS

3. Standard: ASME B16.9, ASME B16.25, MSS SP-75 DIN2615 JISB2311 JISB2312 JISB2313

4. Materials:304/304L ,304H,316/316L, 316H,321,321H,347,347H, 310S(2520), 31254, 32750, 2205, Copper alloy, Titanium alloy

5. Packing: in wooded cases or pallets,or as for clients'requirements

6. Application:Petroleum, chemical, machinery, electric power, shipbuilding,
papermaking, construction, etc



Standard References



Our products are produced strictly based on the national standards GBT12459-05, GB13401-05; Sinopec standards SH3408, SH3409;Thermal power standard D-GD87; American national standards ASME B16.9, ANSI B16.9, B16.28, B16.11 and Japan national standard JISB2312.



No Chemical Composotion %
  C Cr Ni Mn P S Mo Si Cu N Other
304 ≤0.07 17.00-19.00 8.00-10.00 ≤2.00 ≤0.035 ≤0.030 - ≤1.00 - - -
304LN ≤0.030 17.00-19.00 8.50-11.50 ≤2.00 ≤0.035 ≤0.030 - ≤1.00 - 0.12-0.22 -
309S ≤0.08 22.00-24.00 12.00-15.00 ≤2.00 ≤0.035 ≤0.030 - ≤1.00 - - -
310S ≤0.08 24.00-26.00 19.00-22.00 ≤2.00 ≤0.035 ≤0.030 - ≤1.00 - - -
316 ≤0.08 16.00-18.50 10.00-14.00 ≤2.00 ≤0.035 ≤0.030 2.00-3.00 ≤1.00 - - -
  ≤0.12 16.00-19.00 11.00-14.00 ≤2.00 ≤0.035 ≤0.030 1.80-2.50 ≤1.00 - - Ti5(C%-0.02)~0.08
  ≤0.08 16.00-19.00 11.00-14.00 ≤2.00 ≤0.035 ≤0.030 1.80-2.50 ≤1.00 - - Ti5*C%-0.70
316L ≤0.030 16.00-18.00 12.00-15.00 ≤2.00 ≤0.035 ≤0.030 2.00-3.00 ≤1.00 - - -
316N ≤0.08 16.00-18.00 10.00-14.00 ≤2.00 ≤0.035 ≤0.030 2.00-3.00 ≤1.00 - 0.10-0.22 -



Our major products

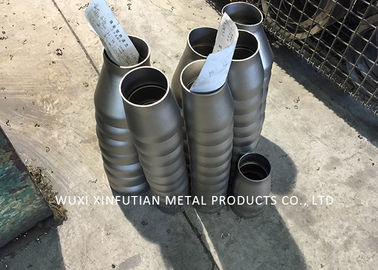

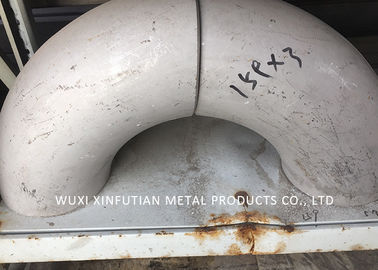

seamless or welded Tees, Crosses, LR & SR Elbows (180°, 90°, 45°), Reducers (Concentric or Eccentric), Stub Ends, End Caps, Socket & Threaded Couplings in material of stainless steel, carbon steel, alloy steel and other special steels. Size is from 1/2"(DN15) to 100’’(DN2500), the wall thickness is up to 100mm.



Packaging & shipping:



MOQ 1 Ton
Price Term FOB
Payment L/C at sight or 30% TT as deposit
Delivery Time 20-30 days after receiving deposit by T/T or L/C.
Sample Samples free and express charges bear by you

Standard export package with water proof paper, and metal pallet, and angle bar protection, and steel strip or as required



20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS

40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS

40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS
