ASTM A513 Stainless Steel Seamless Pipe Hairline Finish For Heat Exchangers

Place of Origin Shanghai ,Shanxi
Brand Name BAOSTEEL , TISCO ,HONGWANG ,LISCO,
Certification ISO ,SGS,BV
Model Number 200 300 400 Series
Minimum Order Quantity 1 ton according to products
Price Negotiation
Packaging Details Export Package
Delivery Time 5-10 working days
Payment Terms L/C, T/T, D/P, Western Union
Supply Ability 2000 T/Month
Product Details
Thickness 1.5-12MM Finish NO 1,2B ,BA
OD 10-500MM Color Natural Surface Or As Customized
Standard JIS/ASTM/BN Shape Plate
High Light

seamless square steel tubing

,

ss 304 seamless pipe

Leave a Message
Product Description

ASTM A513 1" 2" 3" 4" 5" 6" x Sch 40 Stainless Steel Seamless Pipes / Tubes



1. Products Details



Grade Stainless Steel Seamless Pipes
Thinckness 1.5-12MM
Tolerance +/-0.02mm
OD 10-500MM
Length as customzied or 6M
Brand name AOXIANG
Standard JIS, AISI, ASTM, GB, DIN, EN ,etc.
Finish 2B, NO1,Hairline, No.4, BA, 8K mirror, etc.
Certification SGS
Packaging Standard exporting packing; seaworthy package.
MOQ 1 Tons
Price time FOB, CFR, CIF, CNF
Delivery time Within 15-20 working days after receiving your deposit
Payment 30% T/T in advanced+70% balanced; irrevocable L/C at sight
Remarks Insurance is all risks and accept the third party test

2. Chemical Properties

Type C Si Mn P S Ni Cr Mo
304 ≤0.08 ≤1.00 ≤2 ≤0.035 ≤0.030 10.0~14.0 18.0-20.0
304L ≤0.03 ≤1.00 ≤2 ≤0.035 ≤0.030 8.0~11.0 18.0-20.0
316 ≤0.08 ≤1.00 ≤2 ≤0.035 ≤0.030 10.0~14.0 16.0~18.5 2.0-3.0
316L ≤0.03 ≤0.75 ≤2 ≤0.045 ≤0.030 10.0~14.0 16.0~18.5

2.0-3.0





3. Applications



The higher alloyed stainless steels generally have excellent strength at elevated temperatures along with outstanding resistance to creep deformation and environmental attack. Therefore, Alloy 310 is used widely in industries such as heat treatment and chemical processing. Some examples include:



Furnace Parts
Oil Burner Parts
Heat Exchangers
Welding Filler Wire and Electrodes
Annealing Covers
Combustion Tubes
Fire Box Sheets

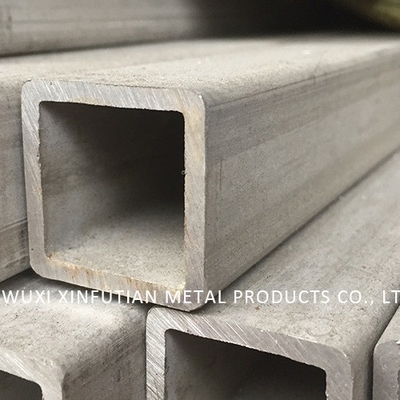

ASTM A513 Stainless Steel Seamless Pipe Hairline Finish For Heat Exchangers 0

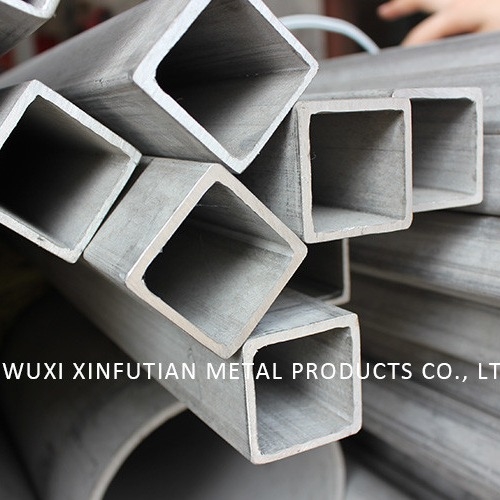

ASTM A513 Stainless Steel Seamless Pipe Hairline Finish For Heat Exchangers 1
