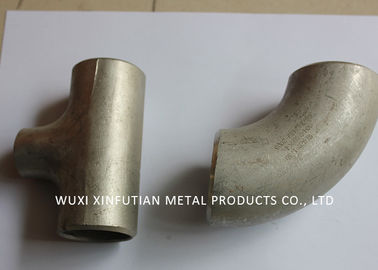

ASME B16.9 Stainless Steel Pipe Fittings Butt - Welded Pipe Elbow Grade 304

Place of Origin Zhejiang, China
Brand Name XINFUTIAN
Certification BV,TUV,DNV,SGS,CE,LR.
Model Number 316, 304, 316L
Minimum Order Quantity 10 PCS
Price Negotiation

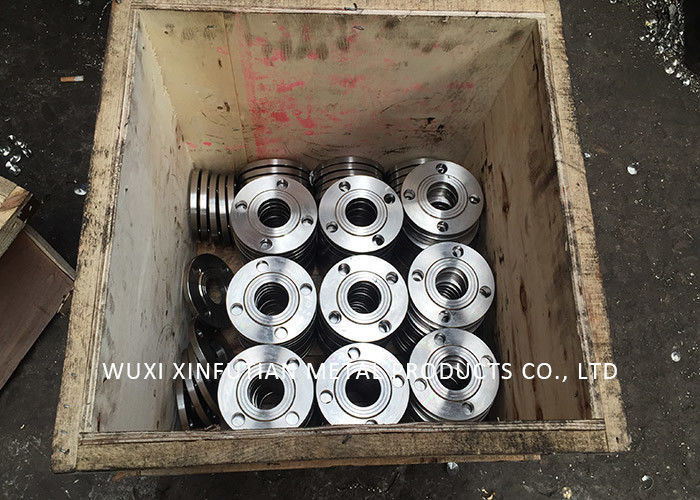

Packaging Details Wooden Cartons and Plastic Bag of each good.
Delivery Time 5-10 working days
Payment Terms T/T, L/C, Western Union
Supply Ability 1000 PCS / Months
Product Details
Technics Forged Type Elbow / Reducer / Tee / Bend
Model Number 316,304,316L Connection Welding
Head Code Round Surface Pickling And Polishing
Quality Prime
High Light

stainless steel tube weld fittings

,

flange stainless steel pipe fittings

Leave a Message
Product Description

Elbow Tee Reducer Pipe Fittings Stainless Steel Elbow ASME B16.9

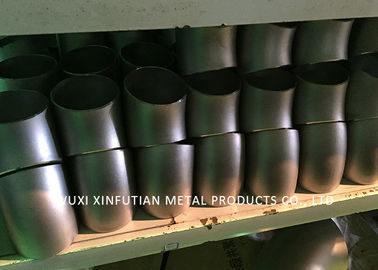

Butt-welded Pipe Elbow Production Range

Outside Diameter: Seamless Elbow ( 1/2″~24″) , ERW / Welded /Fabricated Elbow (1/2″~48″)
Wall Thickness: 3mm– 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80,SCH120, SCH140, SCH160, XXS
Bending Radius: R=1D– 10D, 15D, 20D
Product’s Angle: 5°– 180° Elbows, 90° and 45° Long Radius Elbow, 180°Long Radius Returns, Short Radius Elbow and Returns
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupronickel

Manufacturing Standards

ASME: ANSIB16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

ASTM A403 – ASME SA403– Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9– Factory-Made Wrought Fittings Butt-weld
ASME B16.25– Butt-welding Ends
ASME B16.28 – Wrought Steel Short Radius Elbows and Butt-welding Returns
MSSSP-43– Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Pipe Elbow Material Grades

Stainless Steel Elbow; ASTMA403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Elbow: ASTMA 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low-Temperature Carbon Steel Elbow: ASTM A420 WPL3, A420 WPL6
Alloy Steel Elbow: ASTM/ ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel Elbow: ASTMA 815, ASME SA 815 UNS NO S31803, S32205.
Nickel Alloy Elbow: ASTM/ ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOYC 276 )


NoGradeChemical Composotion %
  CCrNiMnPSMoSiCuN
3040Cr18Ni9≤0.0717.00-19.008.00-10.00≤2.00≤0.035≤0.030-≤1.00--
304LN00Cr18Ni10N≤0.03017.00-19.008.50-11.50≤2.00≤0.035≤0.030-≤1.00-0.12-0.22
309S0Cr23Ni13≤0.0822.00-24.0012.00-15.00≤2.00≤0.035≤0.030-≤1.00--
310S0Cr25Ni20≤0.0824.00-26.0019.00-22.00≤2.00≤0.035≤0.030-≤1.00--
3160Cr17Ni12Mo2≤0.0816.00-18.5010.00-14.00≤2.00≤0.035≤0.0302.00-3.00≤1.00--
 1Cr18Ni12Mo2Ti6)≤0.1216.00-19.0011.00-14.00≤2.00≤0.035≤0.0301.80-2.50≤1.00--
 0Cr18Ni12Mo2Ti≤0.0816.00-19.0011.00-14.00≤2.00≤0.035≤0.0301.80-2.50≤1.00--
316L00Cr17Ni14Mo2≤0.03016.00-18.0012.00-15.00≤2.00≤0.035≤0.0302.00-3.00≤1.00--
316N0Cr17Ni12Mo2N≤0.0816.00-18.0010.00-14.00≤2.00≤0.035≤0.0302.00-3.00≤1.00-0.10-0.22


Our major products

seamless or welded Tees, Crosses, LR & SR Elbows (180°, 90°, 45°), Reducers (Concentric or Eccentric), Stub Ends, End Caps, Socket & Threaded Couplings in material of stainless steel, carbon steel, alloy steel and other special steels. Size is from 1/2"(DN15) to 100’’(DN2500), the wall thickness is up to 100mm.
