| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | TISCO, BAOSTEEL, ZPSS, LISCO, ect |
| Certification: | ISO, SG, MTC |
| Model Number: | 409L |
| Minimum Order Quantity: | 1 ton |
| Price: | Negotiation |
| Packaging Details: | Interlayer paper kraft paper Wooden pallet or according to customer's request. |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000Ton Per Month |
| Finish: | Mill Finish,2b Finsih | Material: | Cold Rolled Stainless Steel Sheet 409L |
|---|---|---|---|
| Thickness: | 0.3-3.0mm | Size: | 1000mm*2000mm, 1219mm*2438mm, 1219mm*3048mm, |
| Sample: | Free Sample | Color: | Bright |
| High Light: | cold rolled stainless steel,stainless steel cold rolled sheet |
||
400 Series 409L 2B Cold Rolled Stee Sheet 1.5mm Metal Bright Used Exhaust System

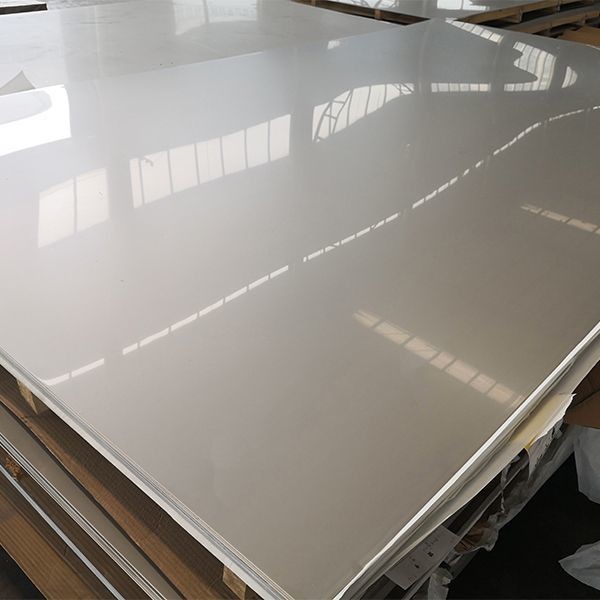

Product Display
|
|
ASTM, AISI, SUS, JIS, EN, DIN, GB, ASME, ETC |
|
|
446, 430, 409, 904L,409L ETC |
|
|
SGS, BV, IQI, TUV, ISO, ETC |
|
|
|
|
|
Standard export package, suit for all kind of transport, or as required. |
Alloy 409 is a general purpose, chromium, titanium stabilized, ferritic stainless steel whose primary application is automotive exhaust systems. It contains 11% chromium which is the minimum amount for the formation of the passive surface film which gives stainless steels their corrosion resistance. It combines good elevated temperature corrosion resistance with medium strength, good formability, and overall cost. Alloy 409 resists corrosion strongly compared to carbon steel and is used as an alternative to carbon steel in mildly challenging environments where its high resistance to corrosion and high temperature oxidation gives an advantage. It is commonly used in applications where appearance is a secondary quality to mechanical properties and corrosion resistance.
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Ni | Ti | |
| 409L |
min. max. |
- 0.08 |
- 1.0 |
- 1.0 |
- 0.045 |
- 0.03 |
10.5~11.75 |
- 0.5 |
6C~0.75 |
Properties
| Spec | Grade | Mechanical Property | Physical Property | ||||
|
Y.S (N/MM2) |
T.S (N/MM2) |
EL (%) |
HRB |
Specific Heat (J/g℃) |
Modulus of Elasticity (KN/mm2) | ||
| JIS | SUS409L | ≥175 | ≥360 | ≥25 | ≤80 | 0.46 | 200 |
| JIS | SUS429 | ≥205 | ≥450 | ≥22 | ≤88 | 220 | |
| JIS | SUS 436L | ≥245 | ≥410 | ≥20 | ≤96 | 0.46 | 220 |
| ASTM | S43932 | ≥205 | ≥415 | ≥22 | ≤89 | 0.46 | 220 |
| EN | 1.4509 | ≥250 | 430-630 | ≥25 | ≤80 | 0.46 | 220 |
