| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | TISCO, BAOSTEEL, ZPSS, LISCO, ect |
| Certification: | ISO, SG, MTC |
| Model Number: | 409L |
| Minimum Order Quantity: | 1 ton |
| Price: | Negotiation |
| Packaging Details: | Interlayer paper kraft paper Wooden pallet or according to customer's request. |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000Ton Per Month |
| Finish: | Mill Finish,2b Finsih | Material: | Cold Rolled Stainless Steel Sheet 409L |
|---|---|---|---|
| Thickness: | 0.3-3.0mm | Size: | 1000mm*2000mm, 1219mm*2438mm, 1219mm*3048mm, |
| Sample: | Free Sample | Color: | Bright |
| High Light: | cold rolled steel plate,stainless steel cold rolled sheet |
||

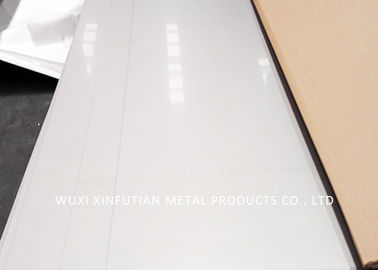

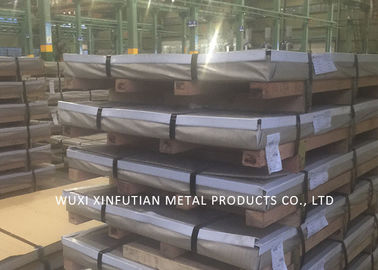

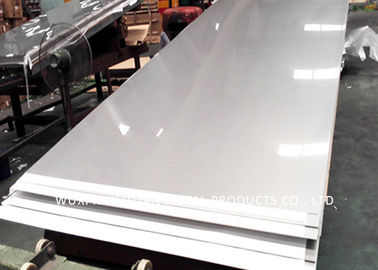

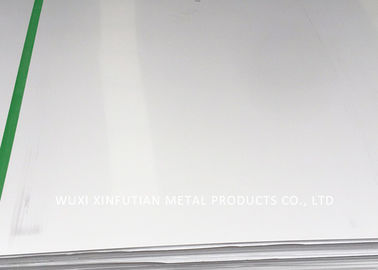

2B Cold Rolled Stee Sheet 409L 1.5mm Metal Bright Used Exhaust System
Detailed information
Alloy 409 is a general purpose, chromium, titanium stabilized, ferritic stainless steel whose primary application is automotive exhaust systems. It contains 11% chromium which is the minimum amount for the formation of the passive surface film which gives stainless steels their corrosion resistance. It combines good elevated temperature corrosion resistance with medium strength, good formability, and overall cost. Alloy 409 resists corrosion strongly compared to carbon steel and is used as an alternative to carbon steel in mildly challenging environments where its high resistance to corrosion and high temperature oxidation gives an advantage. It is commonly used in applications where appearance is a secondary quality to mechanical properties and corrosion resistance.
Grade: 400 Series 409L
Thickness: 0.3-3.0mm
Width: 1219,1500mm
Tolerance: Thickness: ±0.02mm Length: ± 5mm
Brand : TISCO,BAOSTEEL,TISCO,ZPSS
Standard: ISO,ASTM,SUS,GB
Surface: 2B,BA,NO3,NO4
Place of origin: China (mainland)
Payment terms : L/C at sight or 30% TT as deposit
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Ni | Ti | |
| 409L |
min. max. |
- 0.08 |
- 1.0 |
- 1.0 |
- 0.045 |
- 0.03 |
10.5~11.75 |
- 0.5 |
6C~0.75 |
Properties
| Spec | Grade | Mechanical Property | Physical Property | ||||
|
Y.S (N/MM2) |
T.S (N/MM2) |
EL (%) |
HRB |
Specific Heat (J/g℃) |
Modulus of Elasticity (KN/mm2) | ||
| JIS | SUS409L | ≥175 | ≥360 | ≥25 | ≤80 | 0.46 | 200 |
| JIS | SUS429 | ≥205 | ≥450 | ≥22 | ≤88 | 220 | |
| JIS | SUS 436L | ≥245 | ≥410 | ≥20 | ≤96 | 0.46 | 220 |
| ASTM | S43932 | ≥205 | ≥415 | ≥22 | ≤89 | 0.46 | 220 |
| EN | 1.4509 | ≥250 | 430-630 | ≥25 | ≤80 | 0.46 | 220 |
Our Services
1. Sample order is welcomed;
2. Customized packing and customer's logo (OEM Service) are accepted;
3. Various transport ways :by sea, by air & freight company( DHL, FEDEX, UPS, TNT, EMS...)
4. Factory directly sale :We can produce various stainless steel Products according to customer's
requirements.
5. Your inquiry related to our product & price will be replied within 24 hours
6. Good after-sale service offered, please send us feedbacks
