| Place of Origin: | Shanghai ,Shanxi |
|---|---|
| Brand Name: | BAOSTEEL , TISCO ,HONGWANG ,LISCO， |
| Certification: | ISO ,SGS,BV |
| Model Number: | 300 Series 304 |
| Minimum Order Quantity: | 1 ton according to products |
| Price: | Negotiation |
| Packaging Details: | Export Package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 T/Month |
| Thickness: | 3-120mm | Finish: | Brush Finish |
|---|---|---|---|
| Width: | 1000mm,1219mm,1250mm,1500mm | Color: | Natural Surface Or As Customized |
| Application: | Kitchen Utensils | Length: | As Customized |
| High Light: | 304 grade stainless steel sheet,embossed stainless steel sheets |
||

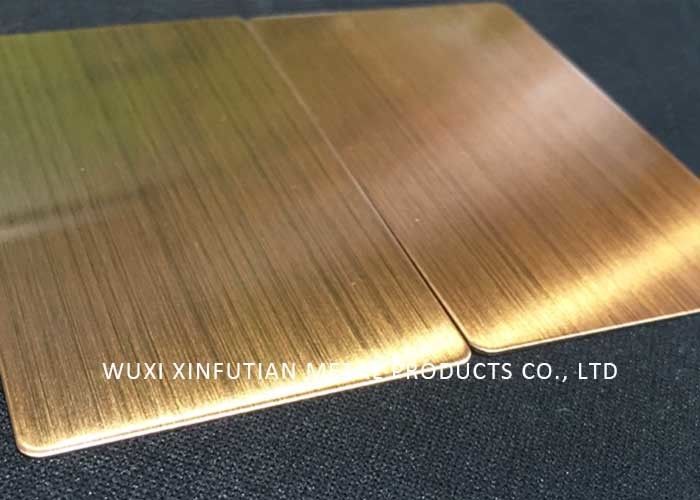

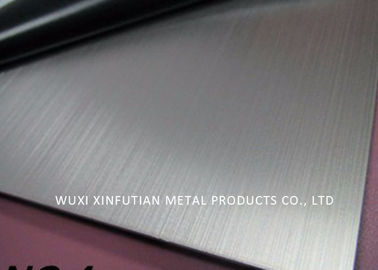

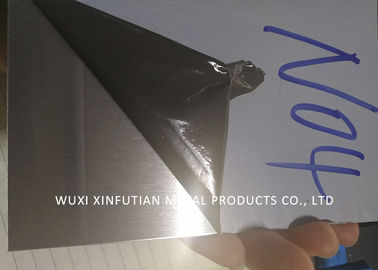

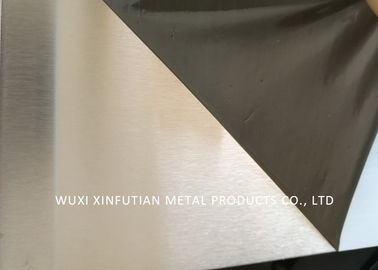

Food Grade 304 Stainless Steel Sheet Brush Finish For Kitchen Utensils
304 standards CHINA:06Cr19Ni10 ASTM/ASME: S30400 DIN: 1.4301
1. Products Details
| Commodity | 300 Series 316 Stainless Steel Plate |
| Grade | 301,302,304,304L,316,316L,310S,309S,321,301,310 |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness | 3mm-120mm |
| Width | 1000,1219,1250,1500mm, or as your requirements |
| Length | 2000,2438,2500,3000,6000mm, or as your requirements |
| Surface | No.1 |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
| Delivery | 5-7 days after confirming the order |
| MOQ | 1 Ton according to products |
C: ≤ 0.08 ,Si: ≤1.0 ,Mn: ≤2.0 ,Cr: 18.0～20.0 ,Ni: 8.0～10.0,S: ≤0.03 ,P: ≤0.045
Tensile strength σb (MPa): ≥ 520
Conditions yield strength :σ0.2 (MPa) ≥ 205
Elongation δ5 (%) ≥40
Section shrinkage ψ (%) ≥ 60
Hardness: ≤ 187HB; ≤ 90HRB; ≤ 200HV
Melting point (℃) : 1398 ~ 1454
3. Applications:
Food preparation equipment, especially in chloride environments
Chemical processing, equipment
Laboratory benches and equipment
Rubber, plastics, pulp & paper machinery
Pollution control equipment
Boat fittings, value and pump trim
Heat exchangers
Pharmaceutical and textile industries
Condensers, evaporators and tanks
4. Processing
Mostly Stainless steel sheet cut from stainless steel coil ,but according to the thickness.If thickness is very thick ,it will be sheets directly.Below are some steps of sheets process.
1.GRINDING
Grinding finish, also called brushed, directional or satin finish. coil or sheet...
2.POLISHING
polished stainless steel sheet uses grinding fluid to polish by polishing equipment on stainless steel ..
3.PVD COLOR COATING
PVD means Physical Vapor Deposition,working in vacuum condiction.....
4.ETCHING
Etching is corrode different kinds of patterns on stainless steel surfaces by chemical methods.
5.EMBOSSING
It is physical rolling on the stainless steel surface, pattern comes from metal roller....
5. Package
| MOQ | 1 Ton |
| Price Term | FOB CIF CNF |
| Payment | L/C at sight or 30% TT as deposit |
| Delivery Time | 5-10 days after receiving deposit by T/T or L/C. |
| Sample | Samples free and express charges bear by you |
Standard export package with Kraft paper with wooded trays or as required,containers sizes as follows
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS
