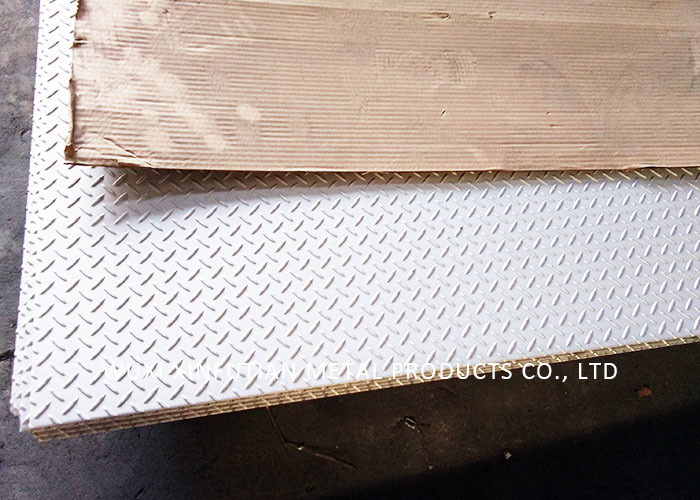

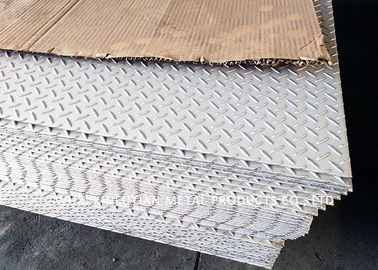

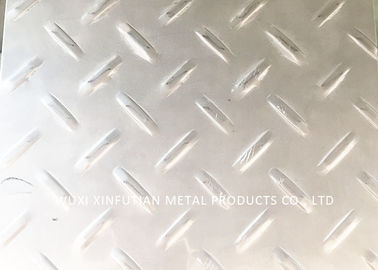

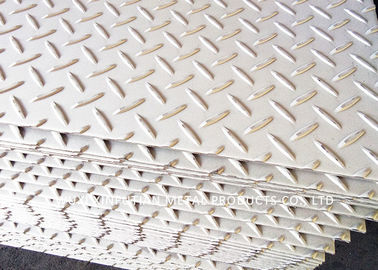

304 Checked Plate Stainless Steel Surface Finish For Construction Site
Place of Origin | Shanghai ,Shanxi |
---|---|
Brand Name | BAOSTEEL , TISCO ,HONGWANG ,LISCO, |
Certification | ISO ,SGS,BV |
Model Number | 300 Series |
Minimum Order Quantity | 1 ton according to products |
Price | Negotiation |
Packaging Details | Export Package |
Delivery Time | 5-10 working days |
Payment Terms | L/C, T/T, D/P, Western Union |
Supply Ability | 2000 T/ Month |
Thickness | 0.3-3.0 | Finish | Pattern |
---|---|---|---|
Width | 1000,1500,1800mm | Color | Natural Surface Or As Customized |
Length | 2500,6000mm As Customzied | Applilcation | Industry,Decoration |
High Light | stainless steel kick plate,embossed stainless steel sheets |
Stainless Steel 304 Checked Plate Surface Finish For Construction Site
300 Series stainless steels are classified as austenitic, and are hardenable only by cold working methods. These grades of stainless have chromium (approx. 18 to 30%) and nickel (approx. 6 to 20%) as their major alloying additions. Type 304 is the most widely used alloy of all stainless steels. 300 Series Stainless steel alloys resist corrosion, maintain their strength at high temperatures and are easy to maintain.
1. Products Details
Commodity | 300 Series 304 Checked Stainless Steel Plate |
Grade | 301,302,304,304L,316,316L,310S,309S,321,301,310 |
Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
Certification | SGS,BV,IQI,TUV,ISO,etc |
Thickness | 0.3-3.0mm |
Width | 1000,1219,1250,1500mm, or as your requirements |
Length | 2000,2438,2500,3000,6000mm, or as your requirements |
Surface | Pattern ,checked |
Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
Delivery | 5-7 days after confirming the order |
MOQ | 1 Ton according to products |
2. Chemical Properties:
C:≤0.08 ,Si :≤1.0 ,Mn :≤2.0 ,Cr :18.0~20.0 ,Ni :8.0~10.0,S :≤0.03 ,P :≤0.045
Pysical properties:
Tensile strength σb (MPa |
≥ 520
|
Specific heat capacity(0 ~ 100 ℃, KJ kgK) |
0.50
|
Conditions yield strength |
σ0.2 (MPa) ≥ 205
|
Thermal conductivity (W m. K) |
(100 ℃), 16.3 21.5 (500 ℃)
|
Elongation δ5 (%) |
≥40
|
The linear expansion coefficient k. |
(0 ~ 100 ℃), 17.2 (0 ~ 500 ℃) of 18.4
|
Section shrinkage ψ (%) |
≥ 60
|
Resistivity (20 ℃, 10 Ω m.) |
0.73
|
Hardness |
≤ 187HB; ≤ 90HRB; ≤ 200HV
|
The longitudinal elastic modulus (20 ℃, KN/mm) | 193 |
Melting point (℃) |
1398 ~ 1454
|
Specific heat capacity | 0.50 |
3. Applications:
Pattern plate appearance beautiful, can slip, enhance performance, save steel and many other advantages. In the transportation, construction, decoration, equipment around the floor, machinery, shipbuilding and other fields are widely used. In general, the use of the side of the pattern of mechanical properties, mechanical performance is not high, so the quality of the main pattern of pattern flower pattern, pattern height, pattern height difference. Currently on the market commonly used thickness ranging from 2.0-8mm, the width of the common 1250,1500 mm two.
