ISO Brushed Stainless Steel Strip Coil Ferrite Stainless Steel 439 1.2mm

  • ISO Brushed Stainless Steel Strip Coil Ferrite Stainless Steel 439 1.2mm
  • ISO Brushed Stainless Steel Strip Coil Ferrite Stainless Steel 439 1.2mm
  • ISO Brushed Stainless Steel Strip Coil Ferrite Stainless Steel 439 1.2mm
  • ISO Brushed Stainless Steel Strip Coil Ferrite Stainless Steel 439 1.2mm
Place of Origin Shanghai
Brand Name TISCO ,BAOSTEEL
Certification ISO,BV,ISO,SGS
Model Number 439 1.4509
Minimum Order Quantity 2 ton
Price Negotiation
Packaging Details Standard Seaworthy package or as the customer's requirement.
Delivery Time 5-10 working days
Payment Terms L/C, T/T, Western Union, D/A
Supply Ability 2000 Ton/Month
Product Details
Technology Cold And Hot Rolled Type Sheet,Rod,Pipe,Coil
Item Stainless Steel Coil Strip Shipping Air,Sea
Thickness 0.5mm Surface Treatment Hot Rolled Or Galvanized, Galvanized, Coated, 2B, Galvanized Then Color Coated
High Light

316 stainless steel strip

,

stainless steel strip roll
Leave a Message
Product Description

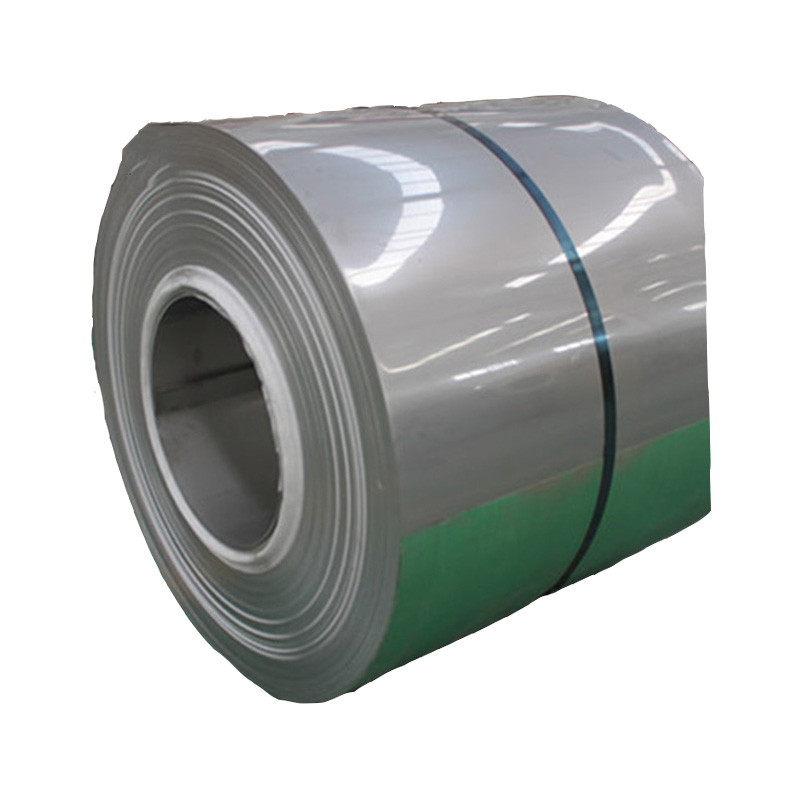

Ferrite Stainless Steel 439 1.2mm Brushed Stainless Steel Strip Coil



1.439 stainless steel



The 439 steel grade is based on the ordinary ferrite material (430) to reduce the content of C, and the addition of stabilizing elements such as Ti, so that the steel species have improved intergranular corrosion resistance, formability and weldability. Compared with the 304 steel grade, the elongation is low (about 30%), but the strength and corrosion resistance are equivalent, and the corrosion resistance is better than the 200 series materials.



chemical composition



Country Standard Grade (%)Chemical Composition
　　
　　
　　
　　
　　
　　
　　
　≤　

　　
　　
　　		 C Si Mn P S Cr Ni 　N　 Ti
USA ASTM 439 0.03 1.00 1.00 0.04 0.03

17.0-

19.0

≤

0.5

≤

0.04

 0.2+4(C+N)－1.10
Ger DIN 1.4510 0.05 1.00 0.00 0.04 0.015 16.0-18.0 - - 4(C+N)－0.80



2. Mechanical Property



Standard Mechanical Property
　　
　　
　　



Tensile Strength

 Yield Strength Elongation(%) Hardness
　　
N/m㎡ (≤)N/m㎡ (≥)% (≤)HV
　　
ASTM ≥415 205 22 180



3. Main purpose



Decoration board for elevator and escalator

Building decoration board, such as decorative structural parts, structural pipe

Automobile exhaust system components

Washing machine inner drum

ISO Brushed Stainless Steel Strip Coil Ferrite Stainless Steel 439 1.2mm 0



Progress of  Coil  Cutting line

ISO Brushed Stainless Steel Strip Coil Ferrite Stainless Steel 439 1.2mm 1
