| Place of Origin: | shananxi |
|---|---|
| Brand Name: | TISCO,ZPSS |
| Certification: | ISO ,SGS,BV |
| Model Number: | 254SMO |
| Minimum Order Quantity: | 1 ton according to products |
| Price: | Negotiation |
| Packaging Details: | Export Package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 1000 T/Month |
| Steel Grade: | 254SMO/UNS S31254 | Application: | Petroleum Production |
|---|---|---|---|
| Standard: | ,DIN,JIS,AISI,GB | Length: | 3000mm~6000mm,6 Meters Or Customized |
| Thickness: | 3mm-20mm | Width: | 1500mm, 1800mm |
| High Light: | stainless steel sheet 2b finish,hairline finish stainless steel sheet |
||

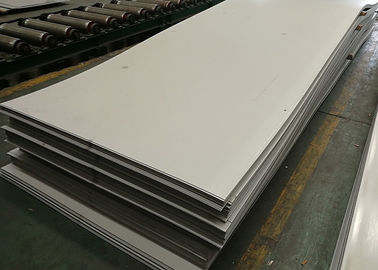

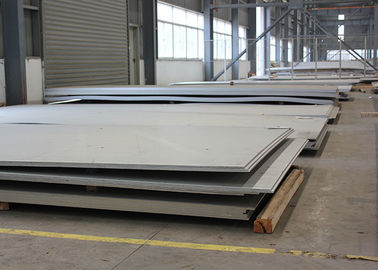

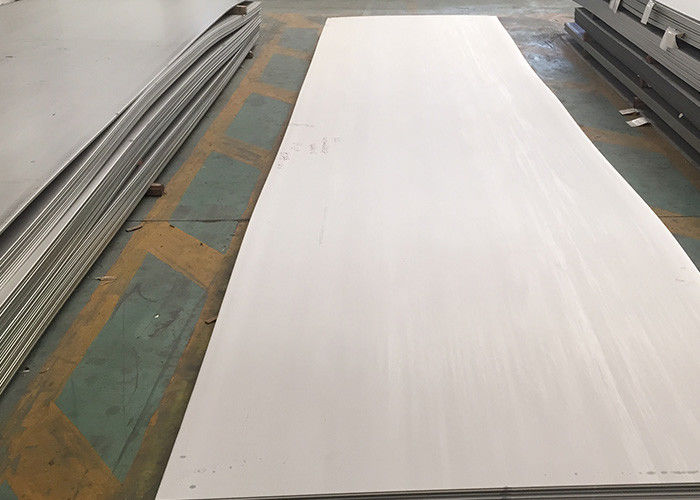

254SMO Stainless Steel Sheet Roll Thickness 5mm 4mm Hot Rolled
Types Of SMO 254 Plates, Sheets & Coils :
• ASTM A240 SMO 254 Plates
• ASTM A240 SMO 254 Sheets
• SMO 254 Shim Sheet
• SMO 254 Perforated Sheet
• SMO 254 Chequered Plate
• SMO 254 Rolls
• SMO 254 Circles
• ASTM A240 SMO 254 Coils
• SMO 254 Strips
• SMO 254 Flat
Introduction
Stainless steel grade 254 SMO™ is a very high end austenitic stainless steel. It is designed with a combination of impact toughness resistance to chloride stress corrosion cracking, and pitting and crevice corrosion with strength that is twice that of the stainless steel 300 series.
For certain applications, grade 254 SMO™ has been reported to be a cost-effective substitute for high nickel and titanium alloys. It is known to possess excellent workability as well.
Chemical Composition
| Fe | Cr | Ni | Mo | C | Mn | Si | P | S | Cu |
| balance | 19.5 | 17.5 | 6.0 | 0.50 | |||||
| 20.5 | 18.5 | 6.5 | 0.020 | 1.00 | 0.80 | 0.030 | 0.010 | 1.00 |
Physical Properties
| Properties | Metric | Imperial |
| Density | 8 g/cm3 | 0.289 lb/in3 |
| Properties | Metric | Imperial |
| Tensile strength | 680 MPa | 98600 psi |
| Yield strength | 300 MPa | 43500 psi |
| Modulus of elasticity | 195 GPa | 28300 ksi |
| Shear modulus | 75 GPa | 10900 ksi |
| Poisson’s ratio | 0.30 | 0.30 |
| Elongation at break | 50 % | 50 % |
| Hardness, Brinell | 210 | 210 |
