Polished Etched Stainless Steel Sheets / Bright 904l Stainless Steel Sheet

Place of Origin Shanghai
Brand Name TISCO, BAOSTEEL, ZPSS, LISCO, ect
Certification ISO, SG, MTC
Model Number 904L
Minimum Order Quantity 1 ton
Price Negotiation
Packaging Details Interlayer paper kraft paper Wooden pallet or according to customer's request.
Delivery Time 7-15 working days
Payment Terms L/C, T/T
Supply Ability 1000TON Per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Etched Stainless Steel Sheets Material 904l Stainless Steel Sheet
Thickness 0.3-3mm Size 1000mm*2000mm, 1219mm*2438mm, 1219mm*3048mm,
Sample Free Sample Surface Polished
High Light

cold rolled steel plate

,

stainless steel cold rolled sheet

Leave a Message
Product Description

Polished Etched Stainless Steel Sheets / Bright 904l Stainless Steel Sheet



904l Stainless Steel Sheet Surface finish



No. 2D - A smooth, non-reflective cold-rolled annealed and pickled or descaled finish.

No. 2B - A smooth, moderately reflective cold-rolled annealed and pickled or descaled finish typically produced by imparting a final light cold-rolled pass using [large diameter] polished rolls.

Bright Annealed [BA] Finish- A smooth, bright, reflective finish typically produced by cold rolling followed by annealing in a protective atmosphere so as to prevent oxidation and scaling during annealing.

No. 3 Finish is characterized by short, coarse, parallel polishing lines, which extend uniformly along the length of the coil.

No.4 Finish is characterized by short, parallel polishing lines, which extend uniformly along the length of the coil. It is obtained by mechanically polishing a No. 3 finish with gradually finer abrasives.



904l Stainless Steel Sheet Chemical Composition



Grade C Mn Si P S Cr Mo Ni Cu
904L

min.

max.

-

0.02

-

2

-

1

-

0.045

-

0.035

19

23

4

5

23

28

1

2



904l Stainless Steel Sheet Proprerties



Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) Brinell (HB)
904L 490 220 36 70-90 typical 150



904l Stainless Steel Sheet Features



Grade 904L stainless steel is a non-stabilized austenitic stainless steel with low carbon content. This high alloy stainless steel is added with copper to improve its resistance to strong reducing acids, such as sulphuric acid. The steel is also resistant to stress corrosion cracking and crevice corrosion. Grade 904L is non-magnetic, and offers excellent formability, toughness and weldability.



904l Stainless Steel Sheet Fabrication



Grade 904L stainless steels are high purity steels with low sulphur content. They can be machined using any standard methods. These grades can be readily bent to a small radius under cold conditions. Although subsequent annealing is not required in most cases, it should be carried out when the fabrication is performed under severe stress corrosion cracking conditions.



904l Stainless Steel Sheet Application



Some of the major applications of grade 904L stainless steels include:



Wiring in electrostatic precipitators,Oil refinery components

Seawater cooling devices,Gas scrubbing plants

Pulp and paper processing industries

Acetic, phosphoric and sulphuric acid processing plants





904l Stainless Steel Sheet Details

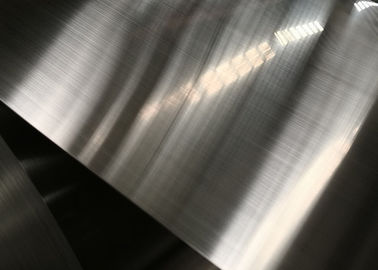

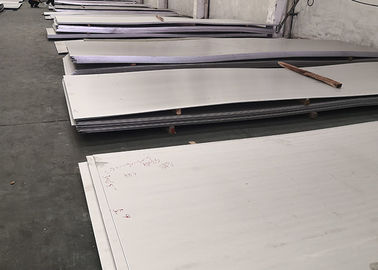

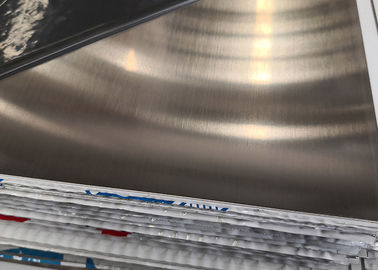

Polished Etched Stainless Steel Sheets / Bright 904l Stainless Steel Sheet 0



Polished Etched Stainless Steel Sheets / Bright 904l Stainless Steel Sheet 1



904L is an austenitic stainless steel.In comparison to 316L, its molybdenum addition gives it superior resistance to localized attack (pitting and crevice corrosion) by chlorides and greater resistance reducing acids and in particular its copper addition gives it useful corrosion resistance to all concentrations of sulphuric acid. Its high alloying content also gives it greater resistance to chloride stress corrosion cracking, but it is still susceptible. Its low carbon content makes it resistant to sensitization by welding and which prevents intergranular corrosion.

It has applications in piping systems, pollution control equipment, heat exchangers, and bleaching systems.




What is grade 904L stainless steel?


Alloy 904L (UNS N08904) is a superaustenitic stainless steel that is designed for moderate to high corrosion resistance in a wide range of process environments. The combination of high chromium and nickel content, coupled with additions of molybdenum and copper, assure good to excellent corrosion resistance.
