OEM 409l Stainless Steel Plate / Durable Stainless Steel Cold Rolled Sheet
Place of Origin | Shanghai |
---|---|
Brand Name | TISCO, BAOSTEEL, ZPSS, LISCO, ect |
Certification | ISO, SG, MTC |
Model Number | 409L |
Minimum Order Quantity | 1 ton |
Price | Negotiation |
Packaging Details | Interlayer paper kraft paper Wooden pallet or according to customer's request. |
Delivery Time | 7-15 working days |
Payment Terms | L/C, T/T |
Supply Ability | 1000Ton Per Month |
Name | Stainless Steel Cold Rolled Sheet | Material | 409l Stainless Steel |
---|---|---|---|
Thickness | 0.3-3.0mm | Size | 1000mm*2000mm, 1219mm*2438mm, 1219mm*3048mm, |
Sample | Free Sample | OEM | Yes |
High Light | cold rolled stainless steel,stainless steel cold rolled sheet |
OEM 409l Stainless Steel Plate / Durable Stainless Steel Cold Rolled Sheet
409l Stainless Steel Plate Introduction
Alloy 409 is a general purpose, chromium, titanium stabilized, ferritic stainless steel whose primary application is automotive exhaust systems. It contains 11% chromium which is the minimum amount for the formation of the passive surface film which gives stainless steels their corrosion resistance. It combines good elevated temperature corrosion resistance with medium strength, good formability, and overall cost. Alloy 409 resists corrosion strongly compared to carbon steel and is used as an alternative to carbon steel in mildly challenging environments where its high resistance to corrosion and high temperature oxidation gives an advantage. It is commonly used in applications where appearance is a secondary quality to mechanical properties and corrosion resistance.
409l Stainless Steel Plate Detailed information
|
ASTM, AISI, SUS, JIS, EN, DIN, GB, ASME, ETC |
|
446, 430, 409, 904L,409L ETC |
|
SGS, BV, IQI, TUV, ISO, ETC |
|
|
409l Stainless Steel Plate Chemical Composition
Grade | C | Mn | Si | P | S | Cr | Ni | Ti | |
409L |
min. max. |
- 0.08 |
- 1.0 |
- 1.0 |
- 0.045 |
- 0.03 |
10.5~11.75 |
- 0.5 |
6C~0.75 |
409l Stainless Steel Plate Properties
Spec | Grade | Mechanical Property | Physical Property | ||||
Y.S (N/MM2) |
T.S (N/MM2) |
EL (%) |
HRB |
Specific Heat (J/g℃) |
Modulus of Elasticity (KN/mm2) | ||
JIS | SUS409L | ≥175 | ≥360 | ≥25 | ≤80 | 0.46 | 200 |
JIS | SUS429 | ≥205 | ≥450 | ≥22 | ≤88 | 220 | |
JIS | SUS 436L | ≥245 | ≥410 | ≥20 | ≤96 | 0.46 | 220 |
ASTM | S43932 | ≥205 | ≥415 | ≥22 | ≤89 | 0.46 | 220 |
EN | 1.4509 | ≥250 | 430-630 | ≥25 | ≤80 | 0.46 | 220 |
Our Services
1. Sample order is welcomed;
2. Customized packing and customer's logo (OEM Service) are accepted;
3. Various transport ways :by sea, by air & freight company( DHL, FEDEX, UPS, TNT, EMS...)
4. Factory directly sale :We can produce various stainless steel Products according to customer's
requirements.

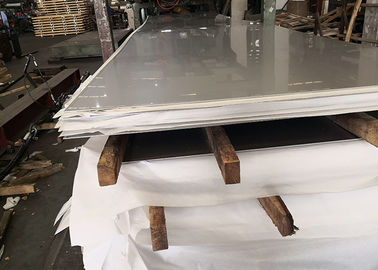

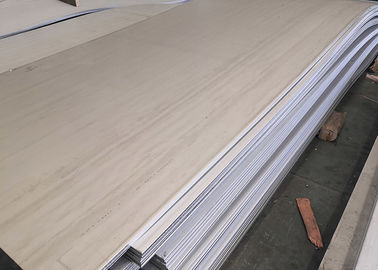

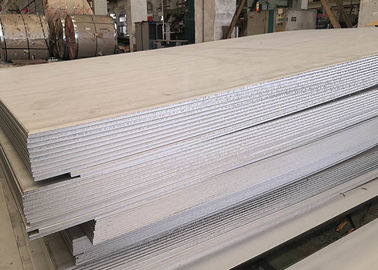

409l Stainless Steel Plate Details
