| Place of Origin: | Shanghai ,Shanxi |
|---|---|
| Brand Name: | BAOSTEEL , TISCO ,HONGWANG ,LISCO， |
| Certification: | ISO ,SGS,BV |
| Model Number: | 300 Series 304 |
| Minimum Order Quantity: | 1 ton according to products |
| Price: | Negotiation |
| Packaging Details: | Export Package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 T/Month |
| Name: | Hot Rolled Stainless Steel Sheet | Finish: | NO 1 |
|---|---|---|---|
| Standard: | ASTM /JIS/GB | Color: | Natural Surface Or As Customized |
| Model No: | 304 | ||
| High Light: | stainless steel sheet 2b finish,hairline finish stainless steel sheet |
||

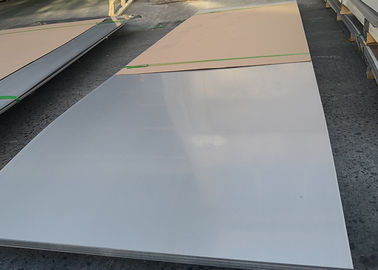

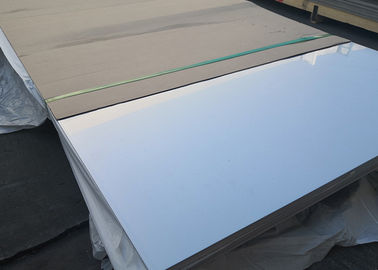

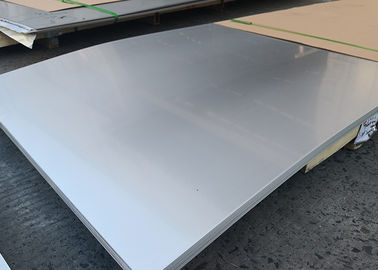

ASTM /JIS/GB Standard Hot Rolled Stainless Steel Sheet For Construction Industry
Hot Rolled Stainless Steel Sheet Introduction
300 Series stainless steels are classified as austenitic, and are hardenable only by cold working methods. These grades of stainless have chromium (approx. 18 to 30%) and nickel (approx. 6 to 20%) as their major alloying additions. Type 304 is the most widely used alloy of all stainless steels. 300 Series Stainless steel alloys resist corrosion, maintain their strength at high temperatures and are easy to maintain.
Hot Rolled Stainless Steel Sheet Details
| Commodity | 300 Series 316 Stainless Steel Plate |
| Grade | 301,302,304,304L,316,316L,310S,309S,321,301,310 |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness | 3mm-120mm |
| Width | 1000,1219,1250,1500mm, or as your requirements |
| Length | 2000,2438,2500,3000,6000mm, or as your requirements |
| Surface | No.1 |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
| Delivery | 5-7 days after confirming the order |
| MOQ | 1 Ton according to products |
| Tensile strength σb (MPa |
≥ 520 |
Specific heat capacity(0 ~ 100 ℃, KJ kgK) |
0.50 |
| Conditions yield strength |
σ0.2 (MPa) ≥ 205 |
Thermal conductivity (W m. K) |
(100 ℃), 16.3 21.5 (500 ℃) |
| Elongation δ5 (%) |
≥40 |
The linear expansion coefficient k. |
(0 ~ 100 ℃), 17.2 (0 ~ 500 ℃) of 18.4 |
| Section shrinkage ψ (%) |
≥ 60 |
Resistivity (20 ℃, 10 Ω m.) |
0.73 |
| Hardness |
≤ 187HB; ≤ 90HRB; ≤ 200HV |
The longitudinal elastic modulus (20 ℃, KN/mm) | 193 |
| Melting point (℃) |
1398 ~ 1454 |
Specific heat capacity | 0.50 |
Hot Rolled Stainless Steel Sheet Applications:
Rubber, plastics, pulp & paper machinery
Pollution control equipment
Boat fittings, value and pump trim
Heat exchangers
Pharmaceutical and textile industries
Condensers, evaporators and tanks
Hot Rolled Stainless Steel Sheet Processing
Mostly Stainless steel sheet cut from stainless steel coil, but according to the thickness.If thickness is very thick, it will be sheets directly. Below are some steps of sheets process.
1. GRINDING
Grinding finish, also called brushed, directional or satin finish. coil or sheet...
2. POLISHING
polished stainless steel sheet uses grinding fluid to polish by polishing equipment on stainless steel ..
3. PVD COLOR COATING
PVD means Physical Vapor Deposition,working in vacuum condiction.....
4. ETCHING
Etching is corrode different kinds of patterns on stainless steel surfaces by chemical methods.
5. EMBOSSING
It is physical rolling on the stainless steel surface, pattern comes from metal roller....
FAQ
1. Q: Could you support free sample?
A:Yes.We can supply free samples.But the delivery charges will be covered by our customers.
2. Q: How about the delivery time?
A:Within 15-20days after receiving the deposit or L/C at sight.
3. Q: How about the trade terms?
A:,FOB,CIF will be accepted.
4. Q: How about your payment terms?
A:30%TT in advance and the balance against of copy of B/L.
The irrevocable L/C at sight will be accepted.
Hot Rolled Stainless Steel Sheet Details
