OEM Hot Rolled Stainless Steel Plate / 2205 Duplex Stainless Steel Sheets

Place of Origin Shanghai
Brand Name TISCO ,BAOSTEEL
Certification ISO,BV
Model Number 2205/1.4462/UNS S32205/S31803
Minimum Order Quantity Negotiable
Price Negotiation
Packaging Details Standard Seaworthy package or as the customer's requirement.
Delivery Time 5-10 working days
Payment Terms L/C, T/T, Western Union, D/A
Supply Ability 2000ton /Month
Product Details
Name Hot Rolled Stainless Steel Plate Type Sheet,Coil
Item Stainless Steel OEM Yes
Shipping Air,Sea Length 6000mm
High Light

stainless steel sheet 2b finish

,

hairline finish stainless steel sheet

Leave a Message
Product Description

OEM Hot Rolled Stainless Steel Plate / 2205 Duplex Stainless Steel Sheets​


Hot Rolled Stainless Steel Plate Introduction


Duplex 2205 is somewhat more difficult to machine than the 300 series austenitic stainless steels. Higher cutting forces are required and more rapid tool wear is typical. Some guidelines for machining are: A) Use powerful, rigid machines with extremely strong rigid mounting of tools and work piece, B) Minimize vibration by keeping the tool extension as short as possible, C) Use a nose radius on the tool, no longer than necessary, for carbides that have a sharp edge while still providing adequate strength, D) Design machining sequences to always provide for a depth of cut below the work hardened layer resulting from the previous passes



Hot Rolled Stainless Steel Plate Standards

ASTM/ASME ................A240 UNS S32205/S31803

EURONORM ................1.4462 X2CrNiMoN 22.5.3

AFNOR..........................Z3 CrNi 22.05 AZ

DIN ..............................W.Nr 1.4462

now includes Duplex 2205 (UNS S32205 / S31803), in sheet, sheet coil, plate, plate coil, round bar, processed flat bar and tubular products. Duplex 2205 is ideally suited for high-pressure and highly corrosive environments.



 Hot Rolled Stainless Steel Plate Chemical Properties



  C Mn Si P S Cr Mo Ni N
2205
(S31803)
0.03
max
2.0
max
1.0
max
0.03
max
0.02
max
min: 21.0
max: 23.0
min: 2.5
max: 3.5
min: 4.5
max: 6.5
min: 0.08
max: 0.20
2205
(S32205)
0.03
max
2.0
max
1.0
max
0.03
max
0.02
max
min: 22.0
max: 23.0
min: 3.0
max: 3.5
min: 4.5
max: 6.5
min: 0.14
max: 0.20


Hot Rolled Stainless Steel Plate Mechanical Properties



Grade Tensile Strength
ksi (min)
Yield Strength
0.2% ksi (min)
Elongation % ​Hardness (HB) MAX
2205 90 65 25 217


Corrosion Resitance


1. Due to its high chromium, molybdenum, and nitrogen content, Duplex 2205 demonstrates superior corrosion resistant properties to 316 and 316L in most environments
2. Chromium, molybdenum, and nitrogen content also provide high resistance to pitting and crevice corrosion, even in oxidizing and acidic solutions
3. Resistant to chloride stress corrosion cracking and temperatures of up to about 302°F (150°C)
4. The presence of ferrite provides for good performance of Duplex 2205 in caustic environments



Shipping


MOQ 1 Ton
Price Term FOB
Payment L/C at sight or 30% TT as deposit
Delivery Time 20-30 days after receiving deposit by T/T or L/C.
Sample Samples free and express charges bear by you

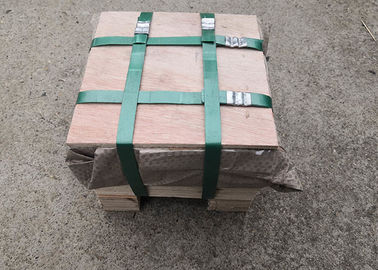

Standard export package with water proof paper, and metal pallet, and angle bar protection, and steel strip or as required

20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS

40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS

40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS

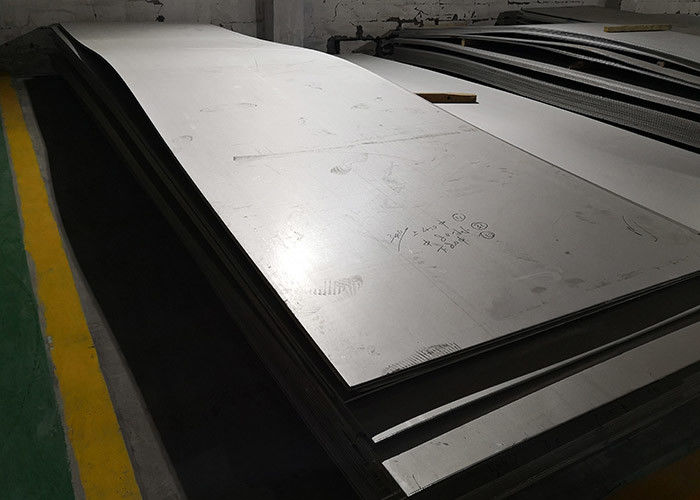

OEM Hot Rolled Stainless Steel Plate / 2205 Duplex Stainless Steel Sheets 0

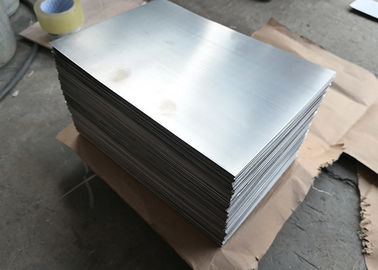

OEM Hot Rolled Stainless Steel Plate / 2205 Duplex Stainless Steel Sheets 1
