347 Cold Rolled 16 Gauge Stainless Steel Sheet MTC , ISO Certification

  • 347 Cold Rolled 16 Gauge Stainless Steel Sheet MTC , ISO Certification
  • 347 Cold Rolled 16 Gauge Stainless Steel Sheet MTC , ISO Certification
  • 347 Cold Rolled 16 Gauge Stainless Steel Sheet MTC , ISO Certification
Place of Origin Jiangsu
Brand Name TISCO, BAOSTEEL, ZPSS, LISCO, ect
Certification ISO, SG, MTC
Model Number 347
Minimum Order Quantity negotiation
Price Negotiation
Packaging Details Interlayer paper kraft paper Wooden pallet or according to customer's request.
Delivery Time 7-15 working days
Payment Terms L/C, T/T
Supply Ability 1000TON Per month
Product Details
Name Cold Rolled Stainless Steel Sheet Finish Mill Finish
Material 347 Thickness 0.3-6mm
Sample Free Sample Certification MTC, ISO
High Light

cold rolled steel plate

,

cold rolled stainless steel
Leave a Message
Product Description

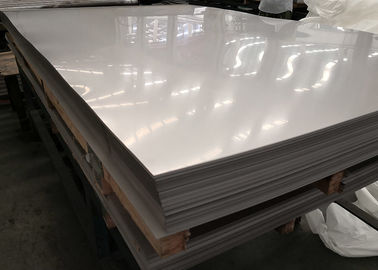

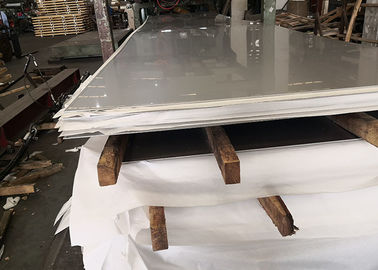

347 Cold Rolled 16 Gauge Stainless Steel Sheet MTC, ISO Certification



Alloy 347 is a stabilized, austenitic, chromium steel containing columbium which allows for the elimination of carbide precipitation, and, consequently, intergranualr corrosion. Alloy 347 is stabilized by the additions of chromium and tantalum and offers higher creep and stress rupture properties than alloy 304 and 304L which may also be used for exposures where sensitization and intergranualr corrosion are of concern.



Specifications: UNS S34700 / S34709

Applications:

Alloy 347 is frequently used for the fabrication of equipment, which must be placed in service under severe corrosive conditions, and is also common to the petroleum refining industries. Applications that consistently used Alloy 347 include:



High temperature chemical processes

Heat exchanger tubes

High temperature steam service

High pressure steam pipes

Radiant superheaters

Boiler tubes

Heavy duty exhaust systems

General refinery piping



Chemical Properties:

  C Cr Mn Ni P S Si Cb/Ta
347 0.08 max min: 17.0
max: 20.0		 2.0 max min: 9.0
max: 13.0		 0.04 max 0.30
max		 0.75
max		 min:10x C
max: 1.0
347H min: 0.04
max: 0.10		 min: 17.0
max: 20.0		 2.0 max min: 9.0
max: 13.0		 0.03 max 0.30
max		 0.75
max		 min:10x C
max: 1.0

Mechanical Properties:

Grade Tensile Strength ksi (MPa) min Yield Strength 0.2% ksi offset ksi (MPa) min Elongation (% in 50mm) min Hardness (Brinell) MAX Hardness (Rockwell B) MAX
347/347H 75
(515)		 30
(205)		 40 201 95



Sheet Production Progress

1.GRINDING
Grinding finish, also called brushed, directional or satin finish. coil or sheet...
2.POLISHING
polished stainless steel sheet uses grinding fluid to polish by polishing equipment on stainless steel ..
3.PVD COLOR COATING
PVD means Physical Vapor Deposition,working in vacuum condiction.....
347 Cold Rolled 16 Gauge Stainless Steel Sheet MTC , ISO Certification 0347 Cold Rolled 16 Gauge Stainless Steel Sheet MTC , ISO Certification 1
.
Surface of Cold Rolled Stainless Steel Sheet




Finish


 Thickness Characteristics Applications
No. 1 3.0mm~150.0mm


Finished by hot-rolling, annealing and pickling, characterized by white pickled surface


 Chemical industry equipment,Industrial tanks
2B 0.2mm~6.0mm


Finished by heat treatment, pickling after cold rolling, followed by skin pass line to be more brighter and smooth surface


 General Application Medical Instruments,Tableware


BA


 0.5mm~30.0mm Bright heat treatment after cold rolling Kitchen utensil, kitchen ware,architectural purpose


No.4(Bright Annealed)


 0.4mm~3.0mm Polishing with No. 150 to No.180 mesh abrasives The most popular finishes Milk & Food processing acilities, Hospital Equipment, Bath-tub
HL(Hair Line) 0.4mm~3.0mm Finished by continuous linear polishing Architectural purposes, escalators, kitchen ware vehicles


8k


 0.5mm~30.0mm Shinning like a mirror Building construction
