PVD Coating 4'x8' 8k Finish 316 Stainless Steel Sheet With High Standard
| Place of Origin | Shanghai ,Shanxi |
|---|---|
| Brand Name | BAOSTEEL , TISCO ,HONGWANG ,LISCO |
| Certification | ISO ,SGS,BV |
| Model Number | 300 Series 316 316Ti |
| Minimum Order Quantity | 1 ton according to products |
| Price | Negotiation |
| Packaging Details | Export Package |
| Delivery Time | 5-10 working days |
| Payment Terms | L/C, T/T, D/P, Western Union |
| Supply Ability | 2000 ton/Month |
Product Details
| Thickness | 0.3-25mm | Finish | Hairilne,BA,NO6,N0 8 |
|---|---|---|---|
| Width | 1000mm,1219mm,1250mm,1500mm | Color | Natural Surface Or As Customized |
| Market | USA ,the Middle East,South Africa | Length | 1000,1500,1800mm |
| High Light | 316 stainless steel plate,316 stainless steel sheet metal |
||
Product Description

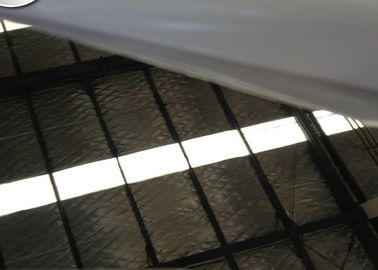

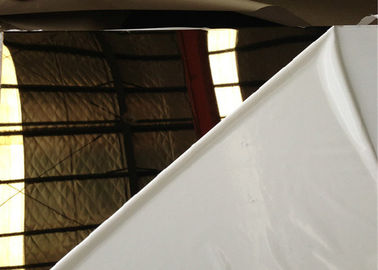

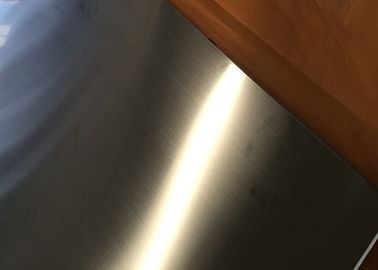

PVD Coating 4'x8' 8k Finish 316 Stainless Steel Sheet With High Standard
WUXI XINFITIAN METAL inventory includes 316/316L (UNS S31600 / S31603), in sheet, sheet coil,
plate, plate coil, bar, structural and tubular products. Generally, this grade is dual-certified to meet both 316 and 316L. Alloy 316/316L is ideally suited for applications requiring corrosion resistance superior to Type 304 and has good elevated temperature strength.
|
Item
|
Description
|
|
Product Name:
|
pvd coating 4'x8' 8k finish 316 stainless steel sheet with high standard
|
|
Material:
|
stainless steel
|
|
Thickness
|
0.3-6mm
|
|
Standard
|
JIS 3302 / ASTM A653 / EN10143
|
|
Width:
|
1000mm/1219mm/1220mm/1500mm/1800mm/2000mm or as customer's require
|
|
Length:
|
as your requirements
|
|
Garde:
|
201 202 301 302 305 304h 304 304l 316 316l 309s 310s 317 321 410 430
|
|
Surface treatment
|
BA,No.4, HL, 2B, No.1etc
|
|
Brand:
|
Tisco,Baosteel,Lisco,zpss.etc
|
|
Certification:
|
ISO,SGS,BV,ROHS,IBR etc.
|
|
Application
|
Construction,Machine Building,Container Manufacturing,Bridges etc.
|
|
Advantage
|
Advanced production technology/Excellent r&d management team/Sophisticated production equipment/Constant pursuit of high-quality goods
|
Chemical Composition
| Specification | Grade | Chemical Composition(wt%) | ||||||
| C | Mn | Ni | Cr | Mo | Ti | |||
| ASTMJIS | 316L/022Cr17Ni12Mo2 | ≤0.03 | ≤2.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | - | |
| JIS | SUS310S | ≤0.03 | ≤2.0 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 | - | |
| ASTMJIS | 316Ti/SUS 316Ti | ≤0.08 | ≤2.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | 5*(C+N)-0.7 | |
Properties
| Spec | Grade | Mechanical Property | Physical Property | ||||
|
Y.S (N/MM2) |
T.S (N/MM2) |
EL (%) |
HRB |
Specific Heat (J/g℃) |
Modulus of Elasticity (KN/mm2) | ||
| ASTM/GB | 316L/022Cr17Ni12Mo2 | ≥170 | ≥485 | ≥40 | ≤95 | 0.5 | 193 |
| JIS | SUS316L | ≥175 | ≥480 | ≥40 | ≤90 | 193 | |
| ASTM | 316Ti | ≥205 | ≥515 | ≥40 | ≤95 | 0.5 | 200 |
316Ti: Mainly used for industrial components.
Packing Details : Standard export package with Metal pallet + Water proof paper + Angle bar protection + Steel belt;
Delivery Details : 7 days after confirming the order
