Embossed 304 Grade Stainless Steel Surface Finish Sheets Wear Resistance

  • Embossed 304 Grade Stainless Steel Surface Finish Sheets Wear Resistance
  • Embossed 304 Grade Stainless Steel Surface Finish Sheets Wear Resistance
  • Embossed 304 Grade Stainless Steel Surface Finish Sheets Wear Resistance
Place of Origin Shanghai ,Shanxi
Brand Name BAOSTEEL , TISCO ,HONGWANG ,LISCO，
Certification ISO ,SGS,BV
Model Number 300 Series 304
Minimum Order Quantity Negotiable
Price Negotiation
Packaging Details Export Package
Delivery Time 5-10 working days
Payment Terms L/C, T/T, D/P, Western Union
Supply Ability 2000 T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Thickness 0.3-3.0 Finish Embossed
Width 1220,2500,1500mm Color Natural Surface Or As Customized
Length 2500,2440,6000mm Feature Wear Resistance
High Light

stainless steel sheet surface finish

,

embossed stainless steel sheets
Leave a Message
Product Description

Embossed 304 Grade Stainless Steel Surface Finish Sheets Wear Resistance



Application



It is widely used in construction, ships building industry, car making industry petroleum & chemicalindustries, eletricity industries, food processing and medical industry etc.



Details



Commodity

300 Series 304 Stainless Steel Kick  Sheet With Laser Cutting

Grade

301,302,304,304L,316,316L,310S,309S,321,301,310

Brand

TISCO ,BAOSTEEL,POSCO,JISCO,LISCO

Certification

SGS,BV,IQI,TUV,ISO,etc

Thickness

0.3-3.0mm

Width

1000,1219,1250,1500mm, or as your requirements

Length

2000,2438,2500,3000,6000mm, or as your requirements

Surface

Hairline

Standard

ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc

Delivery

5-7 days after confirming the order

MOQ

1 Ton according to products

Chemical Properties:

C:≤0.08 ,Si :≤1.0 ,Mn :≤2.0 ,Cr :18.0～20.0 ,Ni :8.0～10.0,S :≤0.03 ,P :≤0.045

Pysical properties:

Tensile strength σb (MPa

≥ 520



Specific heat capacity(0 ~ 100 ℃, KJ kgK)

0.50



Conditions yield strength

σ0.2 (MPa) ≥ 205



Thermal conductivity (W m. K)

(100 ℃), 16.3 21.5 (500 ℃)



Elongation δ5 (%)

≥40



The linear expansion coefficient k.

(0 ~ 100 ℃), 17.2 (0 ~ 500 ℃) of 18.4



Section shrinkage ψ (%)

≥ 60



Resistivity (20 ℃, 10 Ω m.)

0.73



Hardness

≤ 187HB; ≤ 90HRB; ≤ 200HV



The longitudinal elastic modulus (20 ℃, KN/mm)

193

Melting point (℃)

1398 ~ 1454



Specific heat capacity

0.50



Resistance



Stainless steel’s resistance to corrosion and staining, low maintenance and familiar lustre make it an ideal material for many applications.The alloy is used in cookware, cutlery, household hardware, surgical instruments, major appliances, industrial equipment and as an automotive and construction material in large buildings etc. It also can be use in commercial kitchens and food processing plants, as it can be steam-cleaned and sterilized and does not need paint or other surface finishes.



Processing



Mostly Stainless steel sheet cut from stainless steel coil ,but according to the  thickness.If thickness is very thick ,it will be sheets  directly.Below are some steps of  sheets process.



1.GRINDING

Grinding finish, also called brushed, directional or satin finish. coil or sheet...

2.POLISHING

polished stainless steel sheet uses grinding fluid to polish by polishing equipment on stainless steel ..

3.PVD COLOR COATING

PVD means Physical Vapor Deposition,working in vacuum condiction.....

4.ETCHING

Etching is corrode different kinds of patterns on stainless steel surfaces by chemical methods.

5.EMBOSSING

It is physical rolling on the stainless steel surface, pattern comes from metal roller....

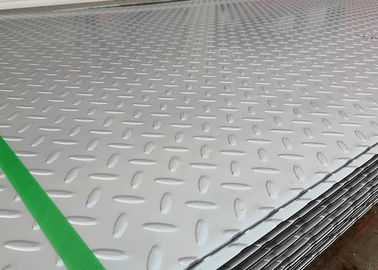

Embossed 304 Grade Stainless Steel Surface Finish Sheets Wear Resistance 0

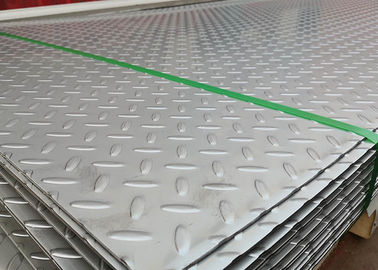

Embossed 304 Grade Stainless Steel Surface Finish Sheets Wear Resistance 1
