| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | TISCO ,BAOSTEEL |
| Certification: | ISO,BV |
| Model Number: | 2205/1.4462/UNS S32205/S31803 |
| Minimum Order Quantity: | 1 ton |
| Price: | Negotiation |
| Packaging Details: | Standard Seaworthy package or as the customer's requirement. |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 1500 ton /Month |
| Name: | Cold Rolled Stainless Steel | Technology: | Cold Rolled |
|---|---|---|---|
| Grade: | 2205 | Thickness: | 0.1mm-30mm Thickness |
| Shipping: | Air,Sea | Certificate: | ASTM/ASME |
| High Light: | cold rolled steel plate,stainless steel cold rolled sheet |
||

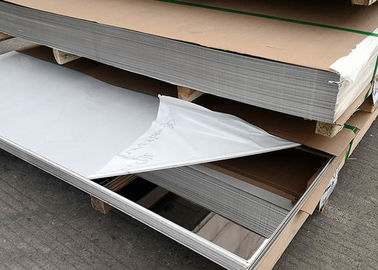

ASTM/ASME Cold Rolled Stainless Steel Sheet 0.1mm-30mm Thickness
Cold Rolled Stainless Steel Feature
Representative type of Ferrite stainless steel, with magnetic Good cost performance, price stability
Good shaping capability, weld bending capability, high thermal conductivity, low thermal expansion
Cold Rolled Stainless Steel Application
Stainless steel strip is widely used in some fields .such as: chemical
industryEquipment ,industrial tanks,medical instruments,tableware,
kitchen utensil,kitchen ware,architectural purpose,food processing
facilities,hospital equipment,decorative and so on.
Cold Rolled Stainless Steel Standards
ASTM/ASME ................A240 UNS S32205/S31803
EURONORM ................1.4462 X2CrNiMoN 22.5.3
AFNOR..........................Z3 CrNi 22.05 AZ
DIN ..............................W.Nr 1.4462
Cold Rolled Stainless Steel Mechanical Properties
| Temperature, °F | 70 | 212 | 392 | 572 |
| Coefficient* of Thermal Expansion, in/in°F x 10-6 | - | 8 | 8 | 8 |
| Thermal Conductivity Btu • ft/ft2 • hr • °F |
8 | 9 | 10 | 11 |
| Modulus of Elasticity, Dynamic psi x 106 | 28 | 26 | 25 | 24 |
* 70°F to indicated temperature.
Mechanical Properties
Minimum Specified Properties, ASTM A 240
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 65 |
| Elongation, % | 25 |
| Hardness MAX, Brinell | 290 |
Minimum Elevated Tensile Properties, Plate
| Temperature, °F | 212 | 302 | 392 | 482 |
| Ultimate Tensile Strength, ksi | 86 | 83 | 80 | 78 |
| 0.2% Yield Strength, ksi | 52 | 49 | 46 | 44 |
Corrosion Resistance
| PREn | Critical Pitting Temperature, CPT | |
| 2205 | 34 | 130°F |
| 316L | 24 | 62°F |
Cold Rolled Stainless Steel Packaging
We wrap the stainless steel products with anti-rust paper and steel rings to prevent damage. Identification labels are tagged accordingto standard specification or customer's instructions. Special packing is available as per customer's requirement.
