| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | TISCO ,BAOSTEEL |
| Certification: | ISO,BV |
| Model Number: | 2205/1.4462/UNS S32205/S31803 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiation |
| Packaging Details: | Standard Seaworthy package or as the customer's requirement. |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 1500 ton /Month |
| Name: | Cold Rolled Stainless Steel Sheet | Surface: | 2B Finish |
|---|---|---|---|
| Grade: | 2205 Duplex | Color: | Natural |
| Shipping: | Air,Sea | Application: | Chemical Processing |
| High Light: | cold rolled steel plate,stainless steel cold rolled sheet |
||
2205 Duplex Cold Rolled Stainless Steel Sheet 2B Finish Chemical Processing
Cold Rolled Stainless Steel Sheet Applications
Kitchenware,utensils,tableware,household applicances,contruction decoration and daily products
Cold Rolled Stainless Steel Sheet Surface
The surface brightness and flatness of NO.2B is better than NO.2D, then through a specialsurface treatment to improve its mechanical properties NO.2B could nearly satisfy comprehensive uses.
Used in kitchen, Medical, building
Cold Rolled Stainless Steel Sheet Standards
ASTM/ASME ................A240 UNS S32205/S31803
EURONORM ................1.4462 X2CrNiMoN 22.5.3
AFNOR..........................Z3 CrNi 22.05 AZ
DIN ..............................W.Nr 1.4462
Cold Rolled Stainless Steel Sheet Chemistry
| Ni | Cr | Mo | Mn | Si | C | N | S | P | Fe | |
| MIN | 4.5 | 22.0 | 3.0 | - | - | - | 0.14 | - | - | - |
| MAX | 6.5 | 23.0 | 3.5 | 2.0 | 1.0 | 0.03 | 0.2 | 0.02 | 0.03 | Balance |
Cold Rolled Stainless Steel Sheet Mechanical Properties
| Temperature, °F | 70 | 212 | 392 | 572 |
| Coefficient* of Thermal Expansion, in/in°F x 10-6 | - | 8 | 8 | 8 |
| Thermal Conductivity Btu • ft/ft2 • hr • °F |
8 | 9 | 10 | 11 |
| Modulus of Elasticity, Dynamic psi x 106 | 28 | 26 | 25 | 24 |
* 70°F to indicated temperature.
Mechanical Properties
Minimum Specified Properties, ASTM A 240
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 65 |
| Elongation, % | 25 |
| Hardness MAX, Brinell | 290 |
Minimum Elevated Tensile Properties, Plate
| Temperature, °F | 212 | 302 | 392 | 482 |
| Ultimate Tensile Strength, ksi | 86 | 83 | 80 | 78 |
| 0.2% Yield Strength, ksi | 52 | 49 | 46 | 44 |
Corrosion Resistance
| PREn | Critical Pitting Temperature, CPT | |
| 2205 | 34 | 130°F |
| 316L | 24 | 62°F |

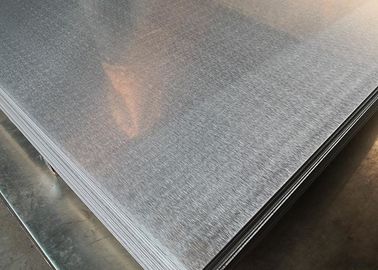

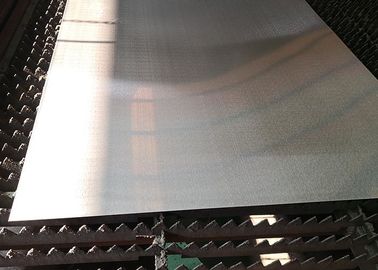

Cold Rolled Stainless Steel Sheet Details
