ASTM JIS SUS Stainless Steel Mirror Finish Sheet , Duplex Hot Rolled Steel Plate

Brand Name:	BAOSTEEL , TISCO ,HONGWANG ,LISCO，
Model Number:	200 Series 201
MOQ:	Negotiable
Price:	Negotiation
Payment Terms:	L/C, T/T, D/P, Western Union
Supply Ability:	2000 T/Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai ,Shanxi

Certification:

ISO ,SGS,BV

Type:

Stainless Steel Mirror Finish Sheet

Finish:

NO 1

Width:

1000mm,1219mm,1250mm,1500mm

Color:

Natural Surface Or As Customized

Standard:

ASTM JIS SUS

Shape:

Hot Rolled Steel Plate

Packaging Details:

Export Package

Supply Ability:

2000 T/Month

Highlight:

mirror finish stainless steel sheet

hairline finish stainless steel sheet

Product Description

ASTM JIS SUS Stainless Steel Mirror Finish Sheet , Duplex Hot Rolled Steel Plate

1. Stainless Steel Mirror Finish Sheet Details

Standard:	ASTM A240,ASME SA240,AMS 5524/5507
Thickness:	0.3 ~ 12.0mm
Width Range:	4'8ft',4'10ft',1000*2000mm,1500x3000mm etc
Brand name:	TISCO, ZPSS, BAOSTEEL, JISCO
Technique:	Cold Rolled ,Hot rolled
Forms :	Foils, Shim Sheet, Rolls, Perforated Sheet, Chequered Plate.
Applications	Pulp and Paper Textiles Water Treatment

2. Stainless Steel Mirror Finish Sheet Chemical Properties

Garde	(C)%	(Si)%	(Mn) %	(Cr)	(N)	(P)	(S)	(Ni)	Cu
201	≤0.15	≤0.75	5.5～7.50	16.0～18.0	≤0.25	≤0.060	3.50-5.50%	3.50-5.50%	half 0.8% higher 1.5%

Pysical properties:

Tensile strength σb (MPa):	Conditions yield strength	Elongation δ5 (%)	Hardness
520	275	55-60%	≤ 183HB; ≤ 90HRB; ≤ 200HV

3. Stainless Steel Mirror Finish Sheet Surface

Finish	Thickness	Characteristics	Applications
No. 1	3.0mm~150.0mm	Finished by hot-rolling, annealing and pickling, characterized by white pickled surface	Chemical industry equipment,Industrial tanks
BA	0.5mm~30.0mm	Bright heat treatment after cold rolling	Kitchen utensil, kitchen ware,architectural purpose
No.4(Bright Annealed)	0.4mm~3.0mm	Polishing with No. 150 to No.180 mesh abrasives	Milk & Food processing acilities, Hospital Equipment, Bath-tub
HL(Hair Line)	0.4mm~3.0mm	Finished by continuous linear polishing	Architectural purposes, escalators,
8k	0.5mm~30.0mm	Shinning like a mirror	Building construction

4. History of 201 Stainless Steel

200 series of stainless steel is in the World War II, as 300 series of stainless steel substitutes in the United States first developed successfully. At that time, due to the reasons for the war, as a strategic material of nickel by the countries concerned strictly control, the United States a serious shortage of nickel supply. In order to solve the problem of stainless steel production and supply in the case of a serious shortage of nickel supply, the United States has developed a series of new grades of austenitic stainless steel of manganese nickel.

5. Processing of Stainless Steel Sheet

Mostly Stainless steel sheet cut from stainless steel coil ,but according to the thickness.If thickness is very thick ,it will be sheets directly.Below are some steps of sheets process.

1. GRINDING
Grinding finish, also called brushed, directional or satin finish. coil or sheet...
2. POLISHING
polished stainless steel sheet uses grinding fluid to polish by polishing equipment on stainless steel ..
3. PVD COLOR COATING
PVD means Physical Vapor Deposition,working in vacuum condiction.....
4. ETCHING
Etching is corrode different kinds of patterns on stainless steel surfaces by chemical methods.
5. EMBOSSING
It is physical rolling on the stainless steel surface, pattern comes from metal roller....

6. Package

1, Sheets covered with wooden plate for protection in transportation.
2. All sheets will be loaded in strong wooden packages.
3. Every cartons loaded with good shoring and strengthening.
4. Take container loading pictures and seal the container.
5. Transportation speed is quick. And keep customer each step informed.

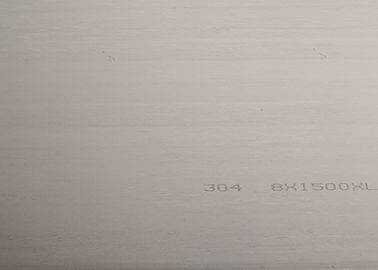

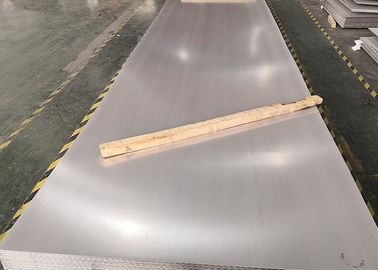

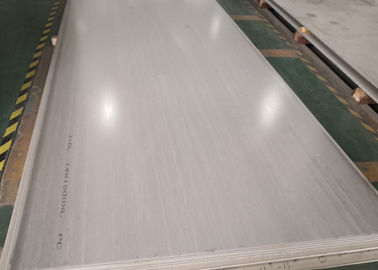

Stainless Steel Mirror Finish Sheet Pictures

ASTM JIS SUS Stainless Steel Mirror Finish Sheet , Duplex Hot Rolled Steel Plate 0

ASTM JIS SUS Stainless Steel Mirror Finish Sheet , Duplex Hot Rolled Steel Plate 1
